MATRIX 300™ QUICK GUIDE
20
APPENDIX

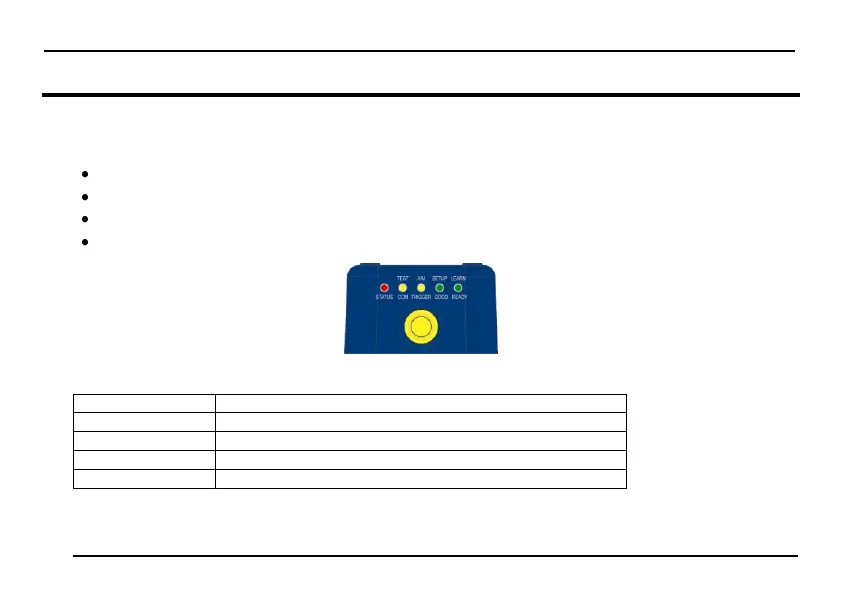

X-PRESS™ is the intuitive Human Machine Interface designed to improve ease of installation and maintenance.
Status and diagnostic information are clearly presented by means of the five colored LEDs, whereas the single push button gives immediate
access to the following relevant functions:
Learn to self-detect and auto-configure for reading unknown codes
Setup to perform Exposure Time and Gain calibration.
Aim/Autofocus to turn on the laser pointers to aid positioning.
Test with bar graph visualization to check static reading performance
In normal operating mode the colors and meaning of the five LEDs are illustrated in the following table:
READY (green)
This LED indicates the device is ready to operate.
GOOD (green)
This LED confirms successful reading.
TRIGGER (yellow)
This LED indicates the status of the reading phase.
COM (yellow)
This LED indicates active communication on main serial port.
STATUS (red)
This LED indicates a NO READ result.
During the reader startup (reset or restart phase), all the LEDs blink for one second.
