Datalogic PowerScan D8330

POWERSCAN
®
D8330/M8300/M8300-DK
2
2 INSTALLATION
Connections should always be made with power OFF!
CAUTION
2.1 POWERSCAN
®
D8330 INTERFACE CABLE CONNECTIONS
The PowerScan
®
D8330 reader incorporates a multi-standard interface, which can be
connected to a Host by plugging the correct interface cable into the connector and
closing the cable cover.

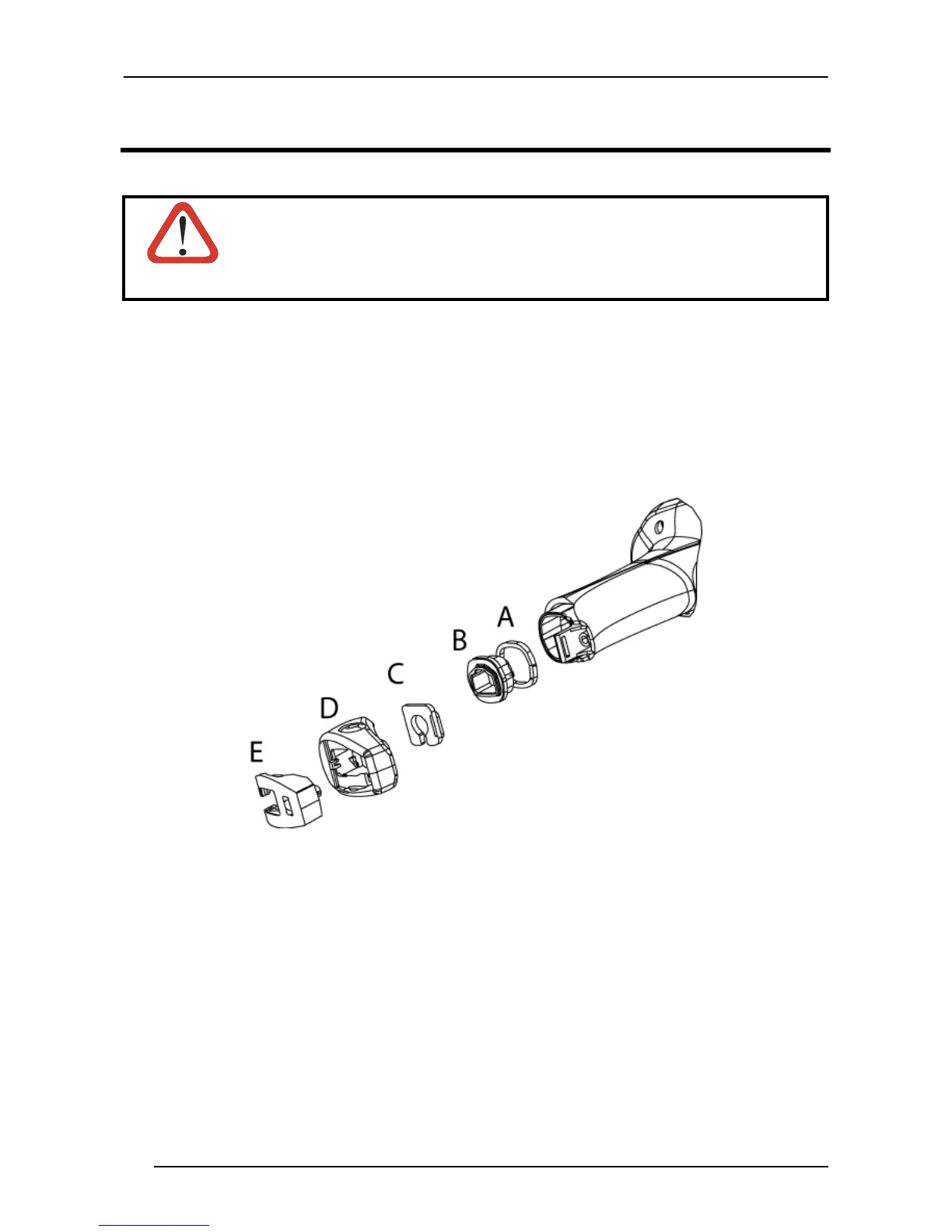

A. Rubber gasket
B. Plastic boot
C. Cable spacer
D. Cover
E. Strain relief
