Data Editing
When a bar code is scanned, additional information can be sent to the host computer
along with the bar code data. This combination of bar code data and supplementary
user-defined data is called a “message string.” The Data Editing features can be used to
build specific user-defined data into a message string.
There are several types of selectable data characters that can be sent before and after
scanned data. You can specify if they should be sent with all symbologies, or only with
specific symbologies. The following shows the available elements you can add to a mes-
sage string:

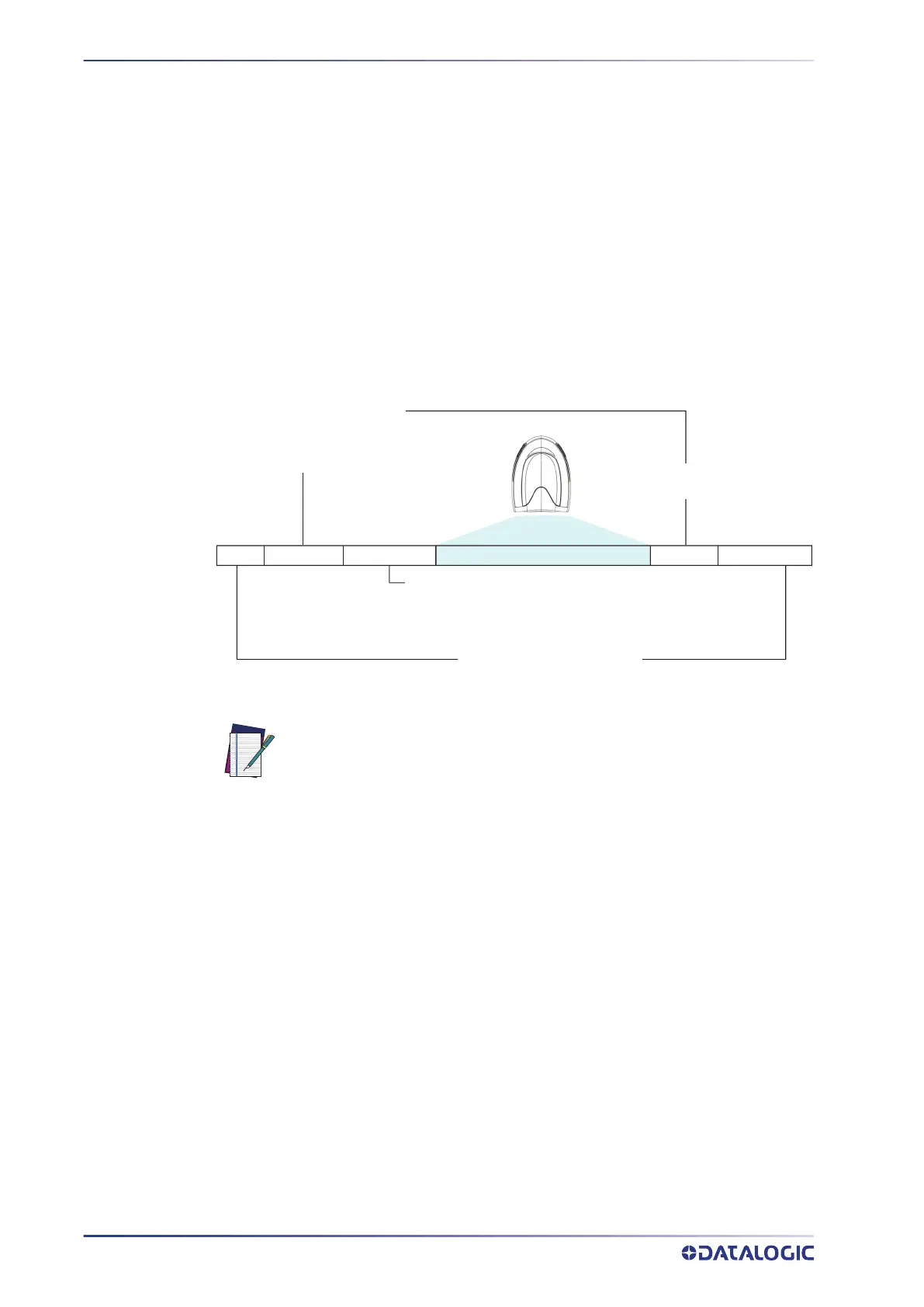

Figure 17 - Breakdown of a Message String
Please Keep In Mind...
• Modifying a message string is not a mandatory requirement. Data editing is a
sophisticated feature allowing highly customizable output for advanced users. Fac-
tory default settings for data editing is typically set to NONE.
• A prefix or suffix may be applied only to a specified symbology (reference
1D
Symbologies, starting on page 111
) or across all symbologies (set via the Global fea-
tures in
Configuration with Bar Codes, starting on page 27).
• You can add any character from the ASCII Chart on
page 340 (from 00-FF) on the
inside back cover of this manual as a prefix, suffix or Label ID.
• Enter prefixes and suffixes in the order in which you want them to appear on the
output.
NOTE: Additional advanced editing is available. See the Advanced format-
ting features in the Datalogic Aladdin configuration software, or contact
"
Technical Support" on page xiv for more information.
Prex SuxAIM IDLabel ID Label ID
00 - 20 Characters (ASCII)
Label ID Transmission:
Enable this option to
transmit the Label ID you
congure for the scanned
symbology.
AIM ID: This function is used to identify and display the
common label identier for its symbology. When enabled, this
ID code will be transmitted before the scanned bar code data.
OR...
Bar Code Data
To Next Page
