SG4 BASE
31/73
• Connect both OSSDs to the device to control.
• Failure to connect an OSSD to the activating device jeopardizes the system safety degree that the light curtain
has to control.

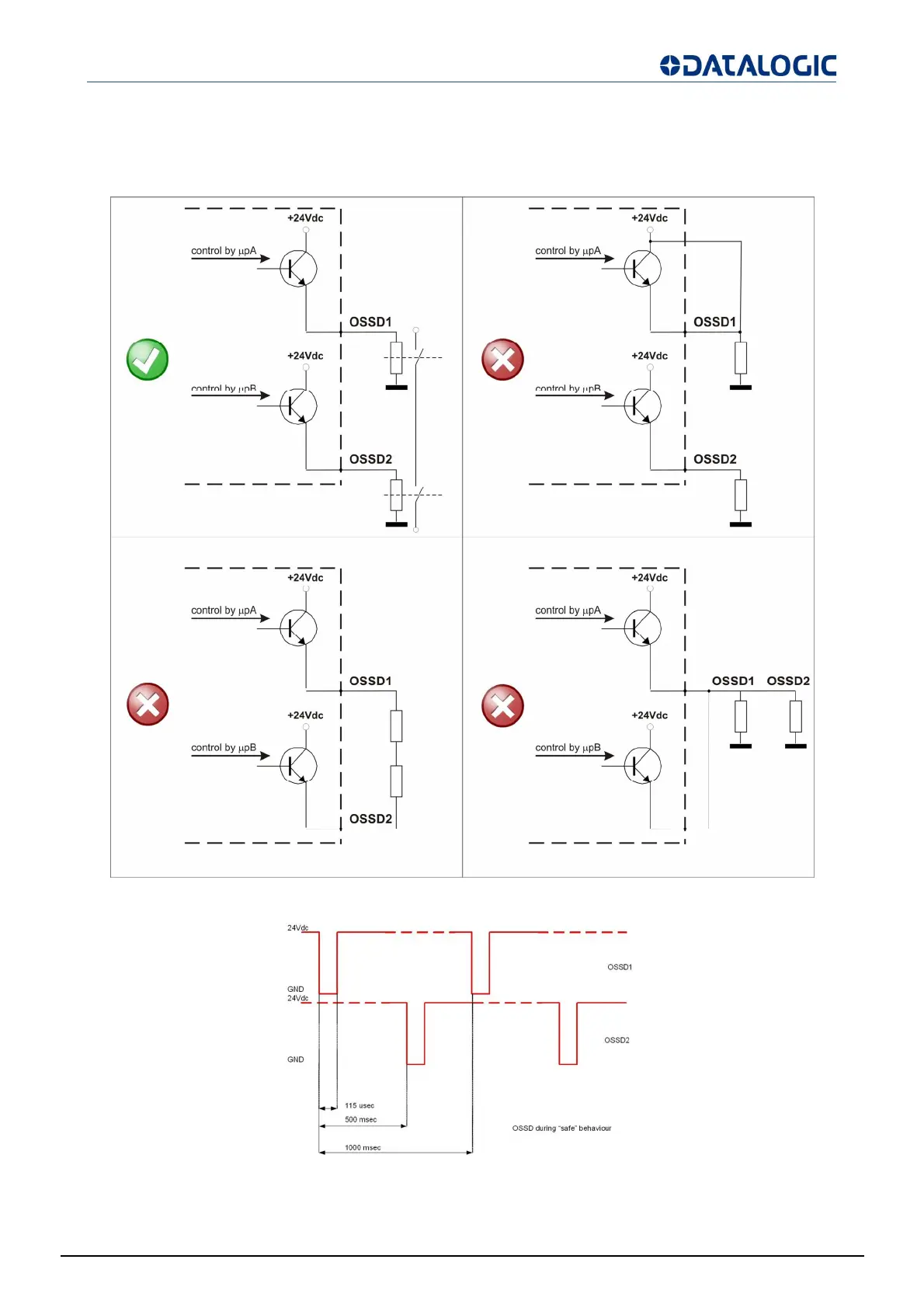

Fig 30 - OSSDs connection
Fig 31 - Behaviour of OSSDs
