8 USER INTERFACE AND DIAGNOSTICS
8.1 USER INTERFACE
Curtain operating status is displayed onto a 1-digit display both on receiver and emitter.
Light curtain also has four LEDs on the receiver and two LEDs on the emitter.

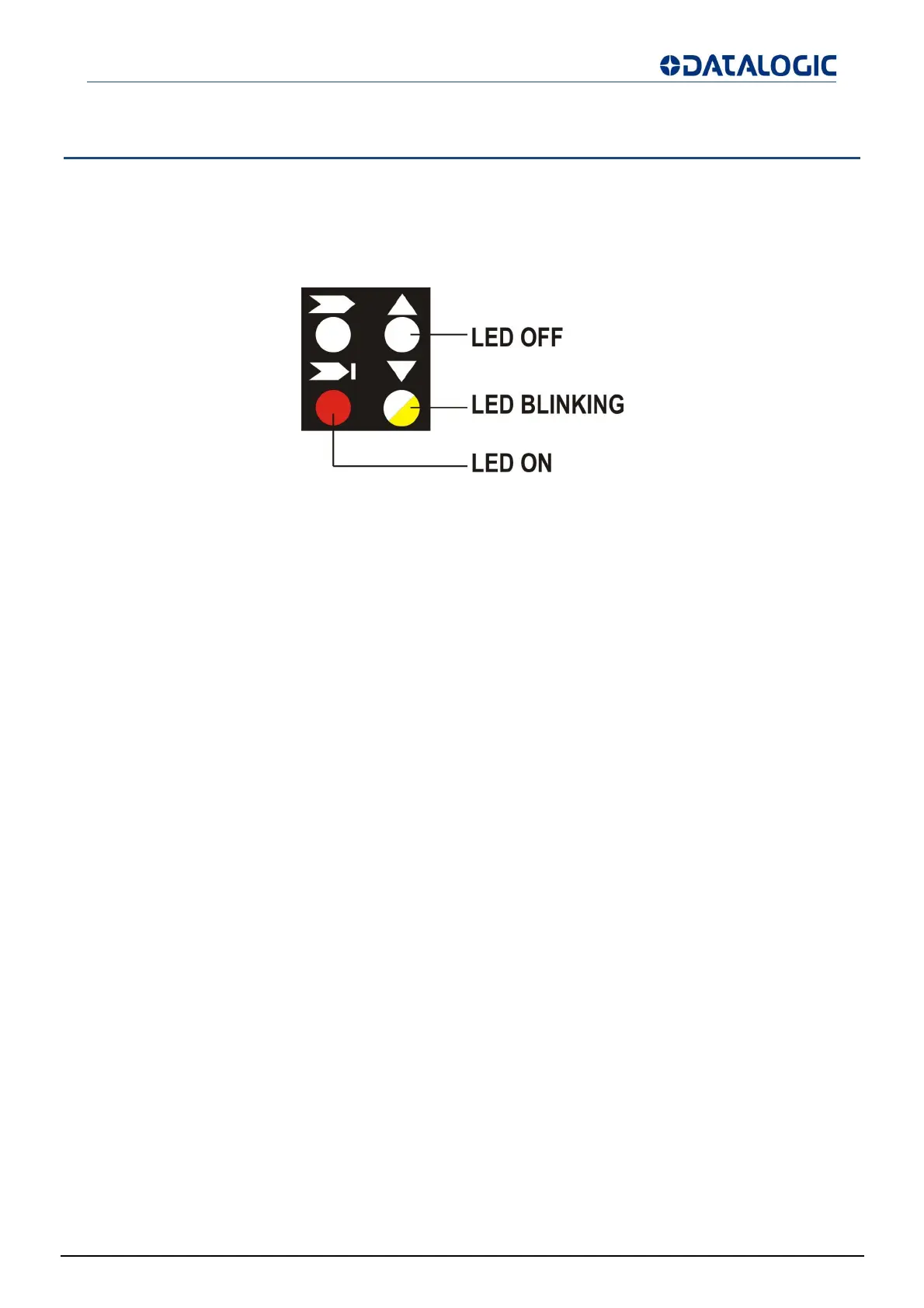

Fig 41 - page 41 shows all signalling LEDs modes: OFF, ON and BLINKING.
Fig 41 - Signalling LEDs
