Datalogic SG4 BASE - Overall Dimensions

SG4 BASE
51/73
13 OVERALL DIMENSIONS

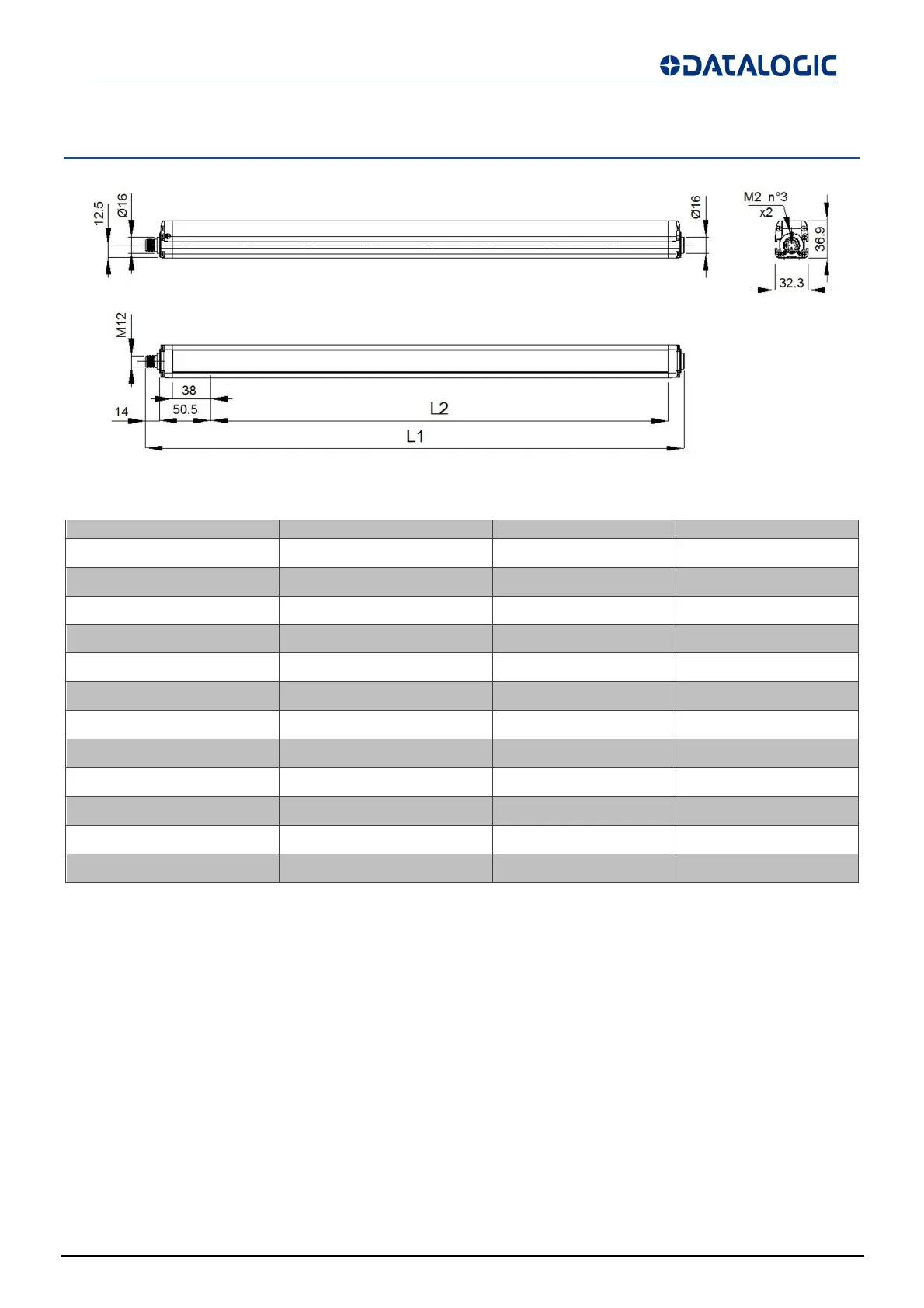

Fig 42 - Dimensions (mm)
MODEL 14mm MODEL 30mm L1
(
mm
)
L2
(
mm
)
SG4-14-015-OO-E/X SG4-30-015-OO-E/X 233.3 153.3
SG4-14-030-OO-E/X SG4-30-030-OO-E/X 383.2 303.2
SG4-14-045-OO-E/X SG4-30-045-OO-E/X 533.2 453.3
SG4-14-060-OO-E/X SG4-30-060-OO-E/X 683.2 603.2
SG4-14-075-OO-E/X SG4-30-075-OO-E/X 833.2 753.3
SG4-14-090-OO-E/X SG4-30-090-OO-E/X 983.2 903.2
SG4-14-105-OO-E/X SG4-30-105-OO-E/X 1133.2 1053.2
SG4-14-120-OO-E/X SG4-30-120-OO-E/X 1283.3 1203.3
SG4-14-135-OO-E/X SG4-30-135-OO-E/X 1433.2 1353.2
SG4-14-150-OO-E/X SG4-30-150-OO-E/X 1583.3 1503.3
SG4-14-165-OO-E/X SG4-30-165-OO-E/X 1733.3 1653.3
SG4-14-180-OO-E/X SG4-30-180-OO-E/X 1883.3 1803.3
