Datalogic SG4 BASE - SG-LS) PMMA Lens Shield

SG4 BASE
64/73

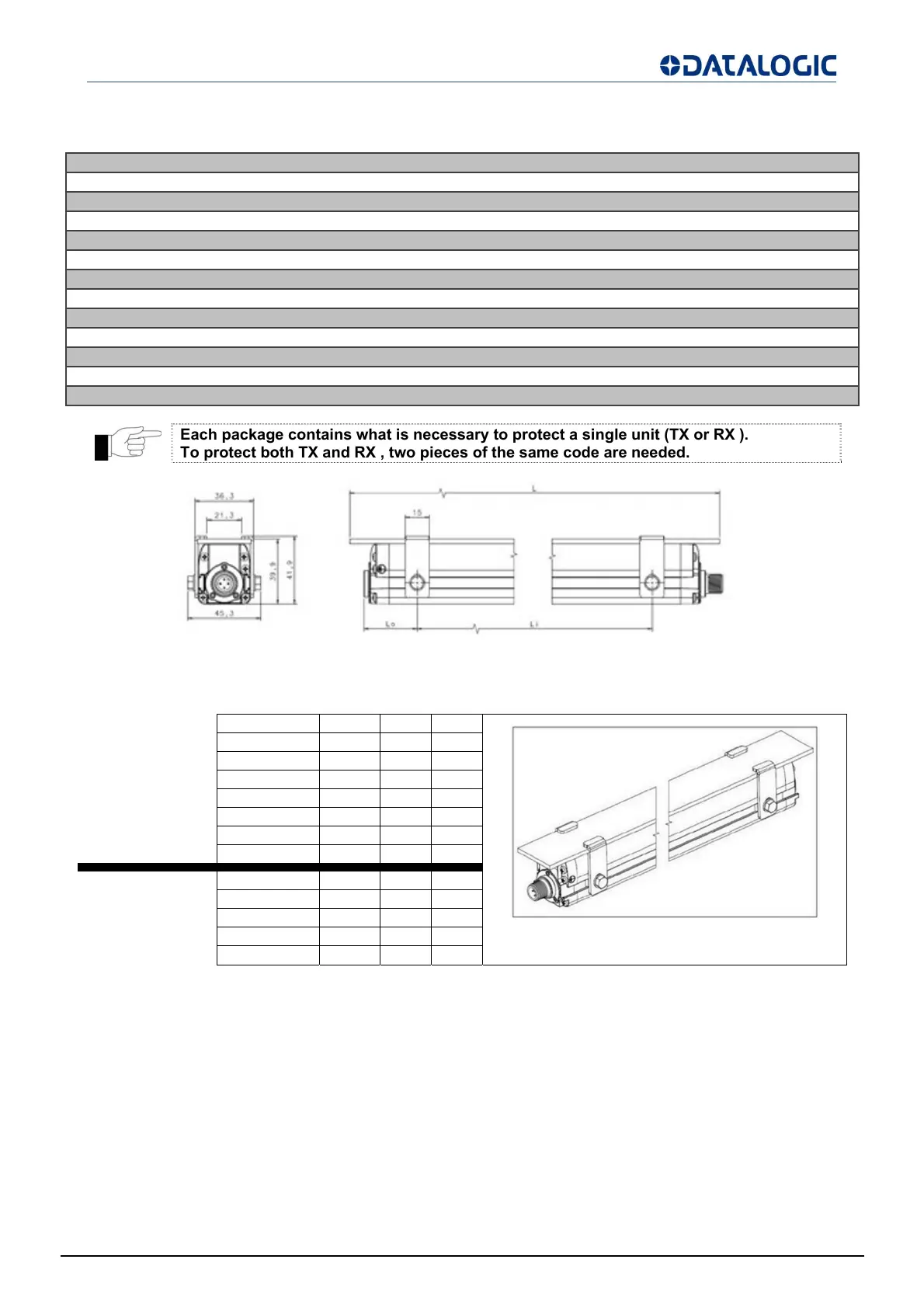

15.9 (SG-LS) PMMA LENS SHIELD
MODEL DESCRIPTION CODE
SG-LS 150 Lens shield H=150 mm
(
5 pcs
)
95ASE1450
SG-LS 300 Lens shield H=300 mm
(
5 pcs
)
95ASE1460
SG-LS 450 Lens shield H=450 mm
(
5 pcs
)
95ASE1460
SG-LS 600 Lens shield H=600 mm
(
5 pcs
)
95ASE1470
SG-LS 750 Lens shield H=750 mm
(
5 pcs
)
95ASE1480
SG-LS 900 Lens shield H=900 mm
(
5 pcs
)
95ASE1490
SG-LS 1050 Lens shield H=1050 mm
(
5 pcs
)
95ASE1500
SG-LS 1200 Lens shield H=1200 mm
(
5 pcs
)
95ASE1510
SG-LS 1350 Lens shield H=1350 mm
(
5 pcs
)
95ASE1520
SG-LS 1500 Lens shield H=1500 mm
(
5 pcs
)
95ASE1530
SG-LS 1650 Lens shield H=1650 mm
(
5 pcs
)
95ASE1540
SG-LS 1800 Lens shield H=1800mm
(
5 pcs
)
95ASE1560
Fig 66 - Dimensions (mm)
MODEL L Li Lo
Fig 67 – Mounting kit
n°
2+2
bracket
015 245 160 30
030 392 345 45
045 540 400 60
060 686 520 75
075 832 590 115
090 980 640 175
105 1126 740 200
n°
3+3
bracket
120 1274 445 200
135 1422 520 200
150 1568 595 200
165 1715 670 200
180 1860 745 200
Each package contains what is necessary to protect a single unit (TX or RX ).
To protect both TX and RX , two pieces of the same code are needed.
