1.4 Attaching Shoulder Strap System
The Shoulder Strap System consists of two parts:
 A knob located on the back part of the printer just above the battery door
 A strap with click on connector
To attach the strap to the knob:
 Press on the two latches on the sides of the connector of the Shoulder Strap
 Slide the knob located on the back of the printer into the connector slot.
 Release the two latches on the connector. The printer is now secure.
 To release the printer, press in on the two latches on the connector and pull the knob clear of
the slot.
Note: Do not force or pull the printer from the connector without pressing in on the two latches

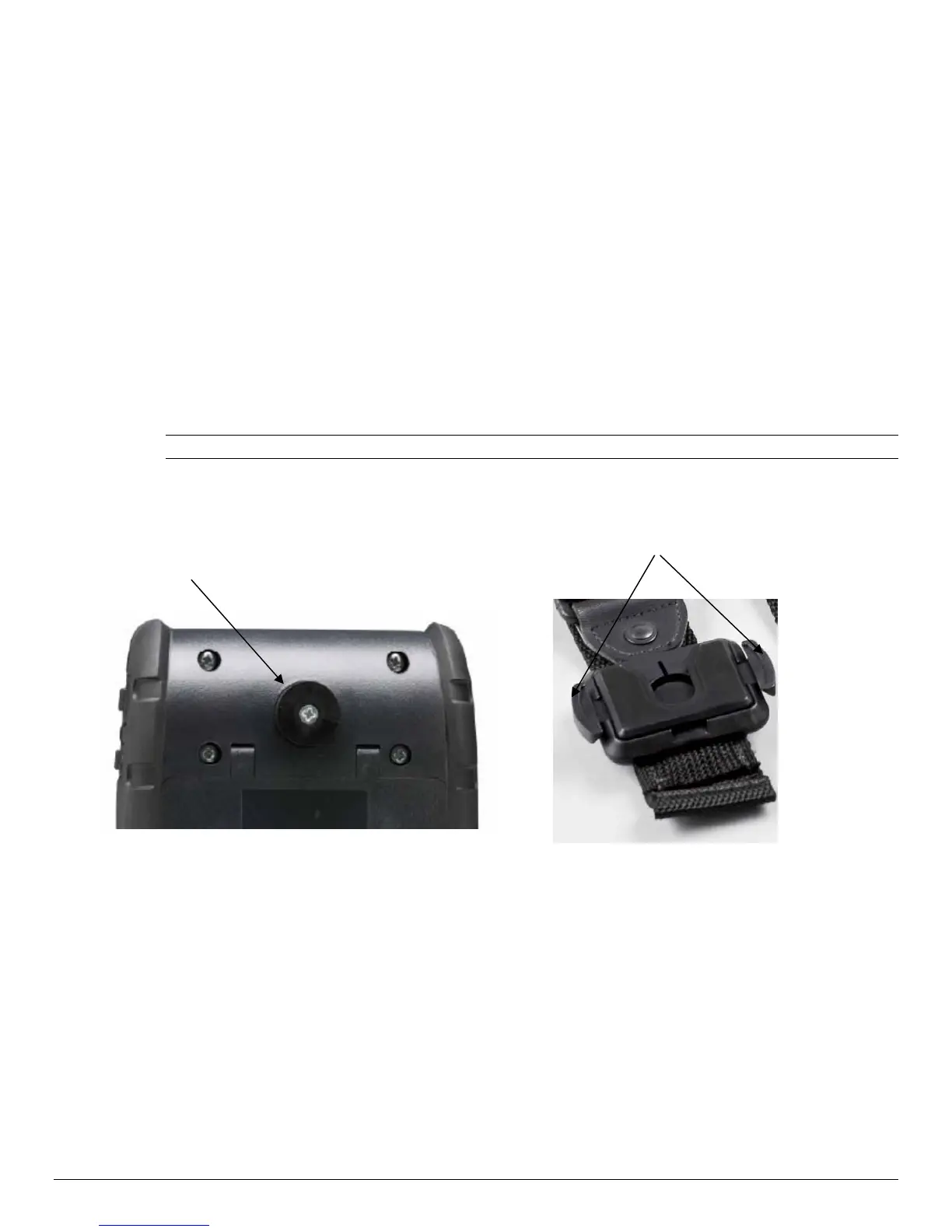

FIGURE 5: KNOB CONNECTION AND QUICK CLIP
SHOULDER
CONNECTION
