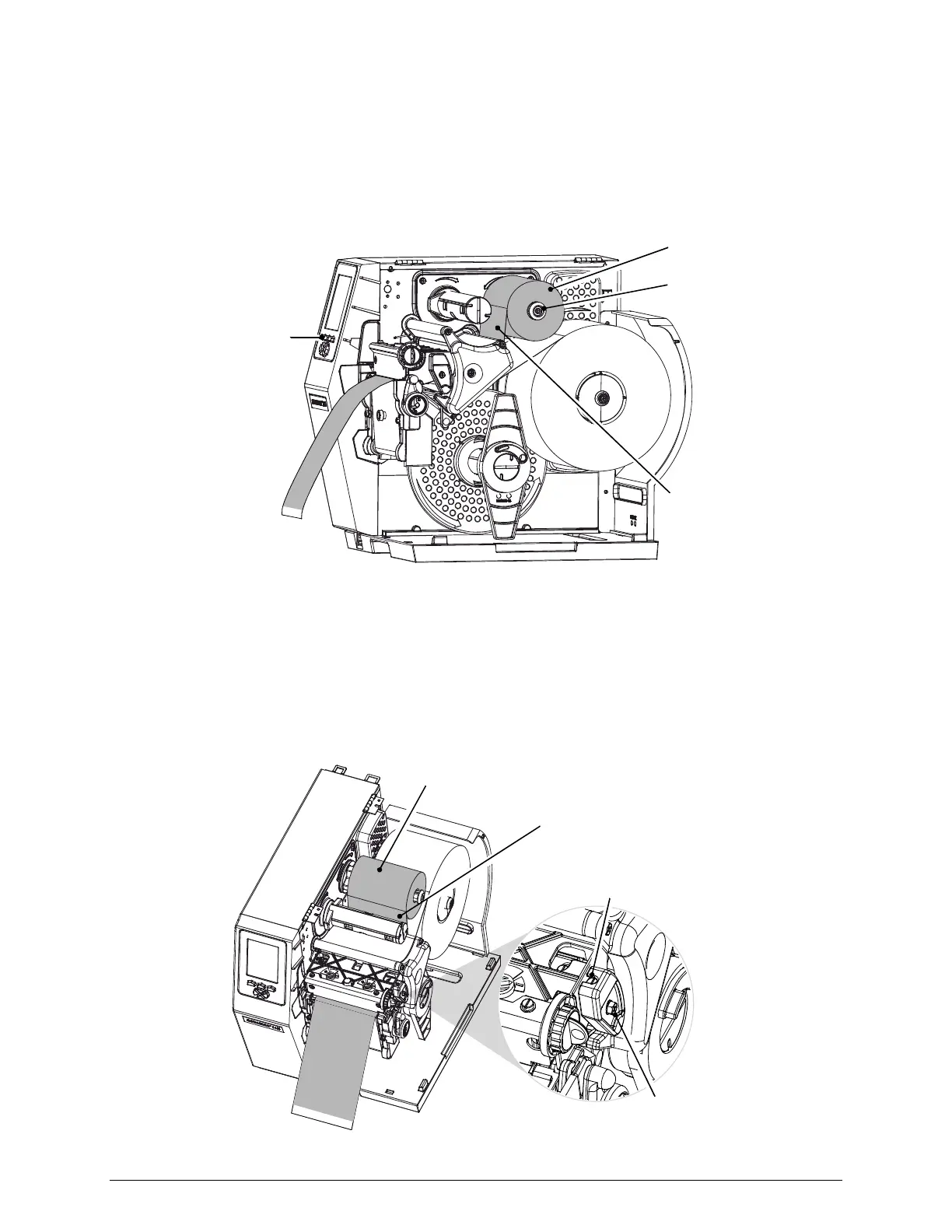

C) Press the FEED Key several times, until media tracking is normalized through the printer. Then, while
feeding several more labels, observe the flow of the Ribbon from the Supply Hub. Proceed
according to your observations:
 If the ribbon flow is rippling, or if bagging is present, proceed to D; or,
 If the ribbon flow is evenly tensioned and smooth, proceed to E.
Supply
Hub
observe
for flow
Ribbon
FEED
Key
D) Slightly loosen the Support Cover Screw and, while repeatedly pressing the FEED Key, slowly
adjust the Idler Adjustment Screw to smooth the ribbon flow from the Supply Hub. Afterward,
carefully tighten the Support Cover Screw, and then feed several more labels to verify your
adjustment.
Support Cover
Screw
Idler Alignment
Screw
smooth the ribbon flow
Supply Hub

Datamax H Class Specifications

General

Print Method	Thermal Transfer/Direct Thermal
Interface	Ethernet, Wireless
Media Sensor	Reflective
Media Types	Labels, Tags
Resolution	203 dpi
Media Thickness	0.002 to 0.01 inches (0.05 to 0.25 mm)
