22
Specifications
Physical
Case Material Steel (Black)
Dimensions (L x H x W) 47 x 20 x 55 mm (1.95 x 0.78 x 2.2 in)
Cable Length 7.0 inches with 8 pin Mini DIN connection

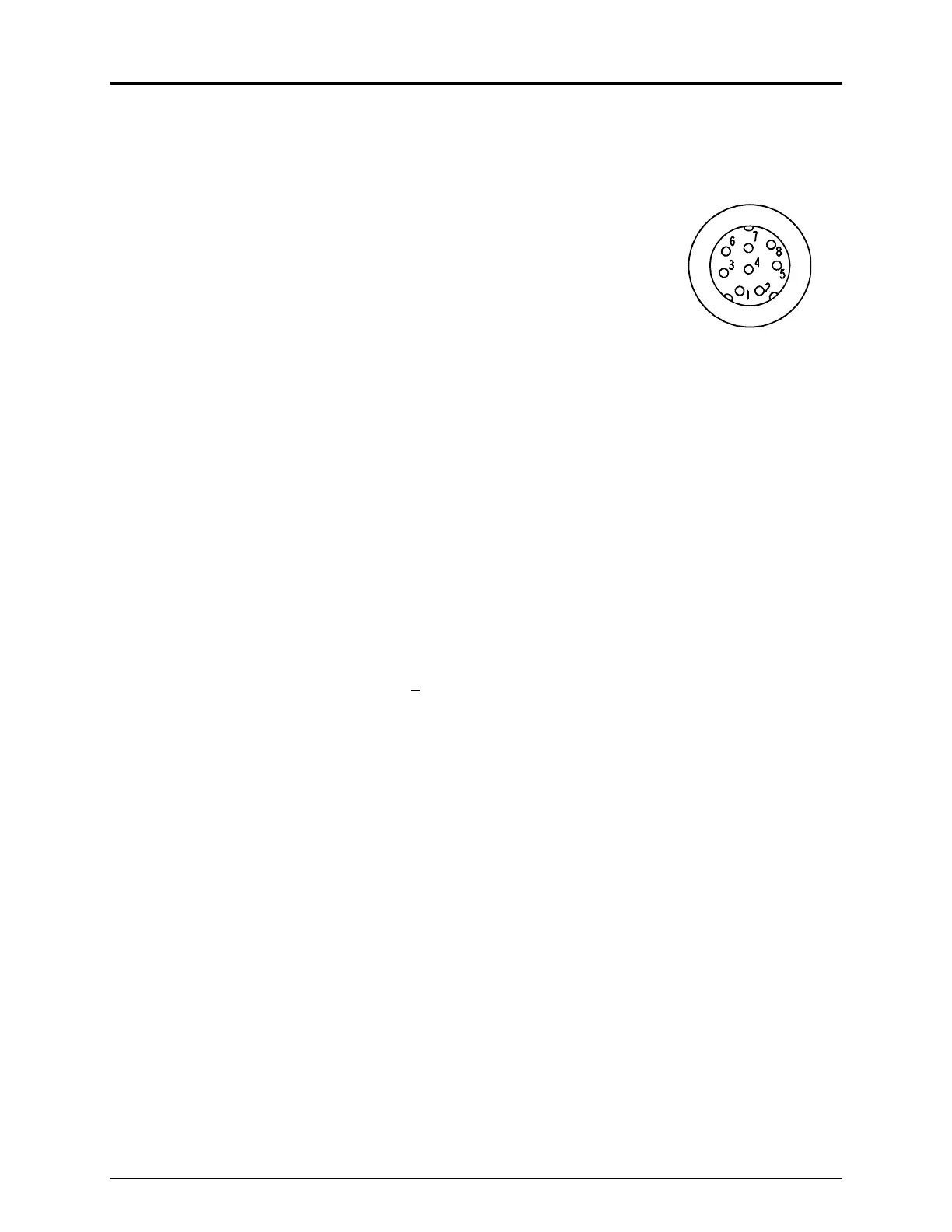

Mini DIN Connector
Pin Number: Signal:
1 +5 VDC
2 TXD
3 Trigger
4 RTS
5 Signal Ground
6 Chassis Ground
7 RXD
8 CTS
MD-80
8-pin Mini DIN Connector
Optical
Scan Rate 700 scans per second ±10%
Wavelength of LED Illumination 660 nanometers
Read Sensor CCD linear array
Narrow Bar Resolution Mounting position dependent: 10-mil or 5-mil
Maximum Character Input 51 digits
Maximum Scanning Width 4.0 inches (101 mm) @ the10-Mil position; and,
3.5 inches (89 mm) @ the 5-Mil position.
Minimum Print Contrast Signal 0.45 (min. background reflectance of 70%)
Symbology Orientation Picket fence
Electrical
Operating Voltage +5 VDC + 5%
Current:
Operating 158 mA typical, 220 mA maximum
Static 150 mA maximum
Surge 3 A maximum
Environmental
Temperature:
Operating
0 to +40 C (+32 to +104 F)
Storage
-10 to +60 C (+14 to +140 F)
Humidity (non-condensing):
Operating 20 to 80%
Storage 20 to 90%
Ambient light restrictions: Fluorescent or incandescent: below 5 kilolux
Supported Symbologies*
Codabar (NW-7) Code 39 Code 93
Code 128 Industrial 2 of 5 Interleaved 2 of 5
MSI / Plessey WPC (UPC / EAN / JAN)* IATA
* Bitmapped images and UPC 2 & 5 digit addendums only readable when specified by number in BARCODE COUNT.
