Overview
With the H-Class Linear Scanner option and menu-selectable functions that include voiding and
replacement generation, labels can be interrogated at up to 700 times per second to ensure that correct,
readable symbologies have been printed.
Use the sections of this document to find needed information. As a starting point, if your Linear Scanner
arrived factory-installed, see “Controls and Features, Performance, and Configuration” to begin use;
otherwise, proceed to “Installation.”
Installation
If installing the kit, verify the experience level of the installer, the package contents, and the tools needed
before following the steps below.
CAUTION
Only qualified service personnel should perform this installation. For your safety and to
avoid printer damage, always turn OFF the power switch and unplug the AC power cord
before this installation and whenever performing service.

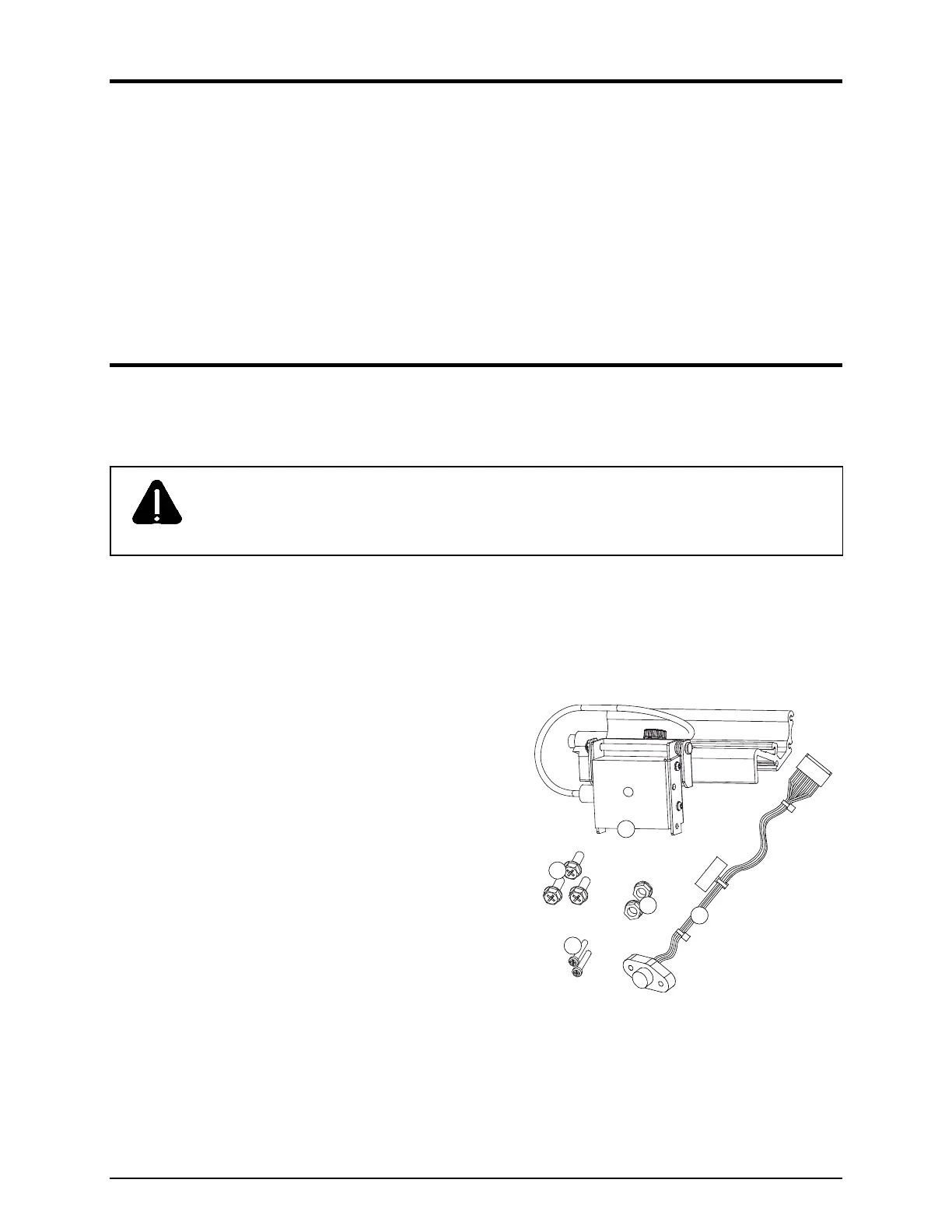

Contents of the Linear Scanner Kit
In addition to this document, this kit contains the following items:
Scanner and Mounting Assembly
Philips Screw (3), M4 x 12
Nut (2), M3 x .5
Philips Screw (2), M3 x 20
Cable Assembly
5
1
2
4
3
Tools Required
To install this option a small standard screwdriver and a Philips screwdriver are needed.
