M-Class 101
Approved Media
To achieve optimum print quality and maximum printhead life, Datamax specifies the use of DATAMAX
brand media
and ribbons. These supplies are specially formulated for use in our printers; use of non-Datamax supplies may affect the
print quality, performance, and life of the printer or its components.
For a current list of approved media and ribbons for use in direct thermal and thermal transfer applications, please contact
a Media Representative at (407) 523-5650.
E
J
I
C
K
A
B
D
H
F
G

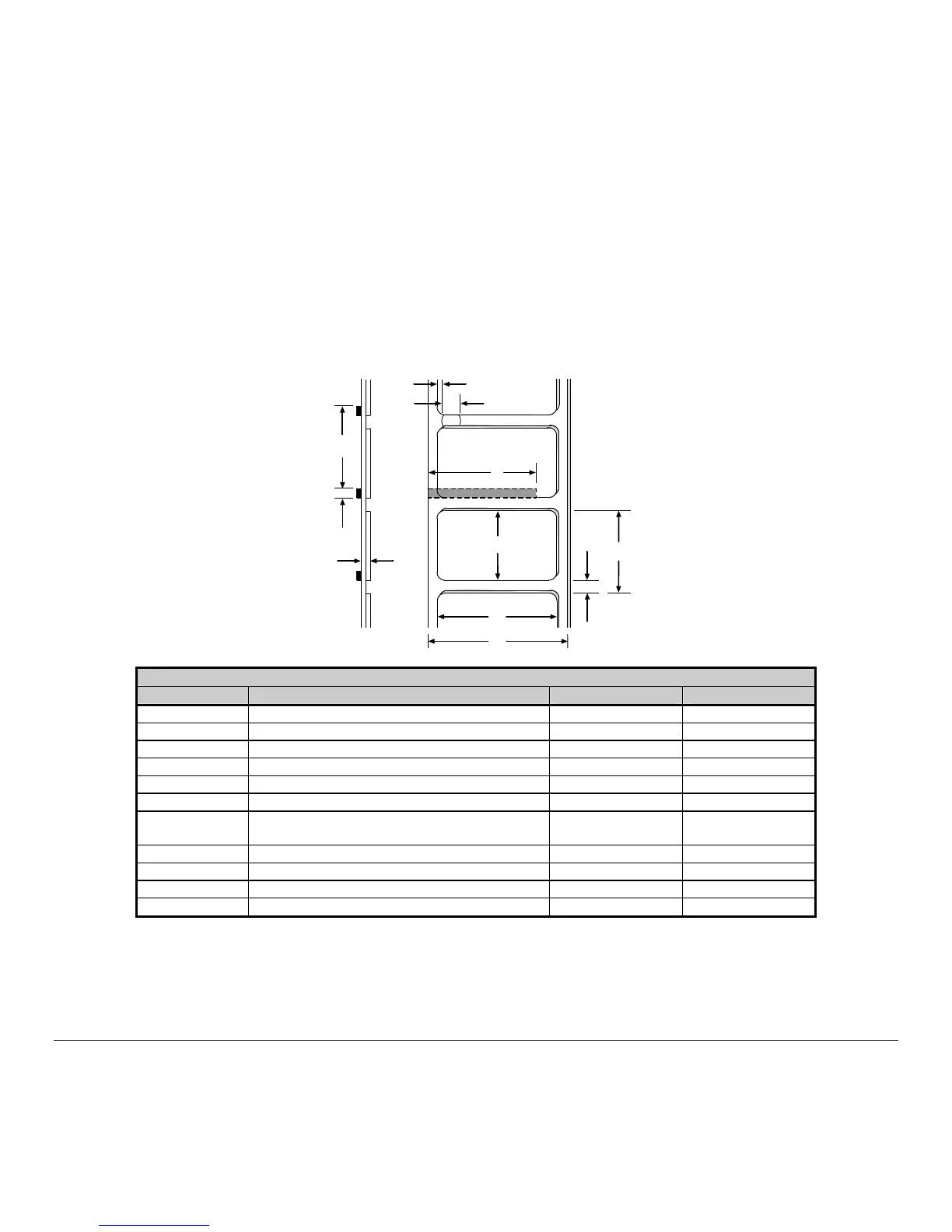

Side View
Top View
Media Dimensions
Designator Description Maximum
[1]
Minimum
[1]
A label width 4.65 .75
B liner width 4.65 .75
C gap (or notch) between labels
[3]
.25 .100
D label length
[3]
– .250
E media thickness .0100 .0025
F notch opening width .500 .200
G distance from the media’s edge to the media sensor
aperture (left justified)
2.250
.200
H reflective (black) mark width
[2]
4.65 .500
I distance between reflective marks
[3]
– .500
J reflective mark length
[3]
– .100
K label repeat distance
[3]
– .350
[1]
Units of measure given in inches.
[2]
The reflective (black) mark must be carbon based, placed on the backside of the stock, and the reflectance shall be less than 10% at
wavelengths of 950 and 640 nm.
[3]
The maximum allowable length of the combined label and gap (or mark) measurement cannot exceed 99.99 inches.
