Datamax Mark II M-4206 User Manual

M-Class 37

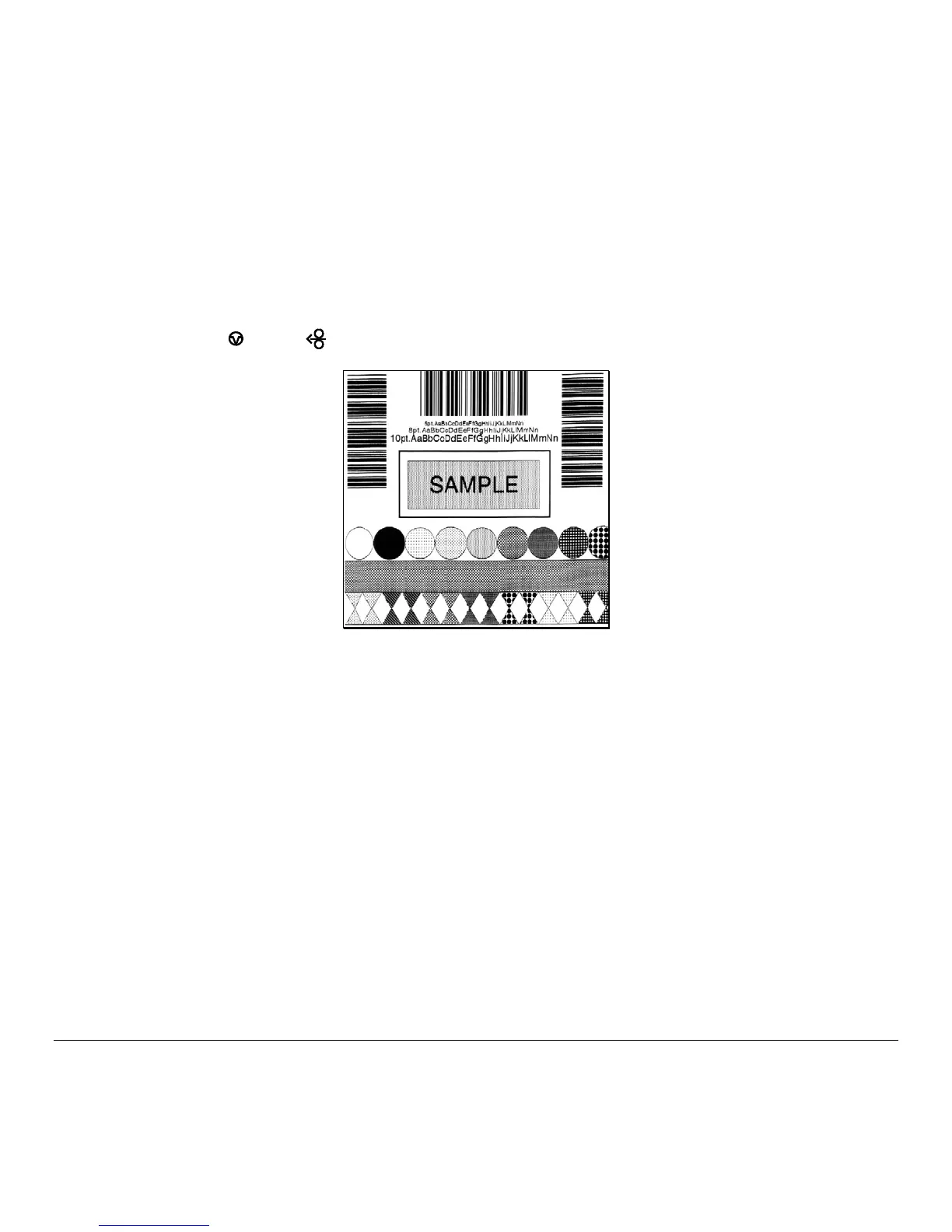

4.8.2 Test Label
The Test Label is used to evaluate the current printer setup for print quality, label tracking, and print positioning.
To print the Test Label:
With the printer loaded with media (at least 4 inches wide), and ribbon (if printing with thermal transfer media),
simultaneously press the
PAU SE
+
FEED
buttons.

Datamax Mark II M-4206 Specifications

General

Print Resolution	203 dpi
Type	Label Printer
Print Method	Thermal Transfer
Max Print Speed	6 inches per second
Memory	16 MB SDRAM, 8 MB Flash
Interfaces	USB, Serial, Parallel
Media Width	4.5 inches
Media Length	0.25" to 99"
Max Print Width	4.25 inches (108 mm)
