Datamax Mark II M-4206 User Manual

M-Class 15
3.4.1 Ribbon Routing (Coated Side In & Coated Side Out)
 Note: Directional Arrows near the Ribbon Supply Hub indicate the correct ribbon route. Ribbon types are available with the ink
(coating) layer wound ‘in’ or ‘out’. These types are NOT interchangeable for use with the printer. Ensure the inked side of the
ribbon faces the media and NOT the printhead.

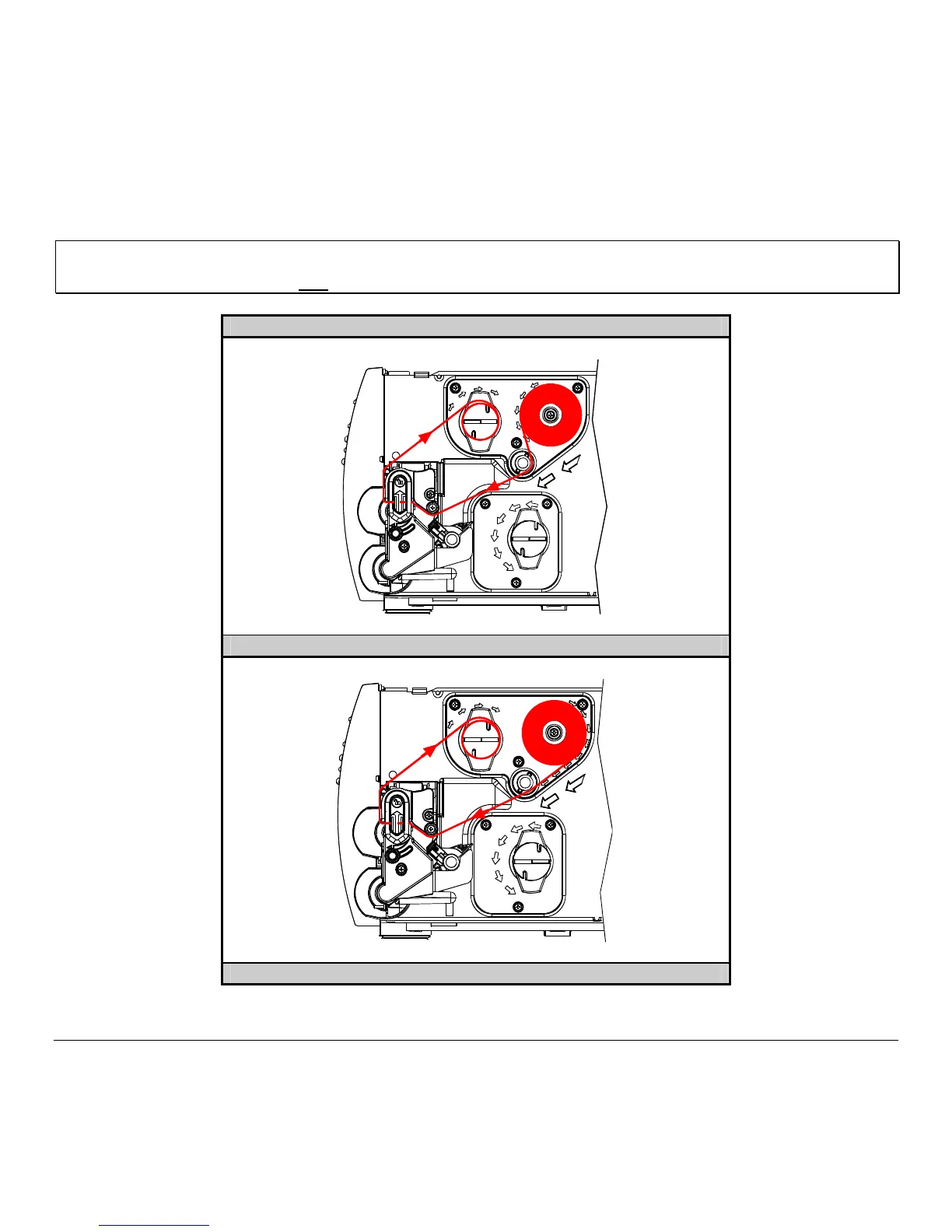

Ribbon Routing Diagrams
‘Coating Side In’ Ribbon Supply Hub
‘Coating Side Out’ Ribbon Supply Hub

Datamax Mark II M-4206 Specifications

General

Print Resolution	203 dpi
Type	Label Printer
Print Method	Thermal Transfer
Max Print Speed	6 inches per second
Memory	16 MB SDRAM, 8 MB Flash
Interfaces	USB, Serial, Parallel
Media Width	4.5 inches
Media Length	0.25" to 99"
Max Print Width	4.25 inches (108 mm)
