Datamax Mark II M-4206 User Manual

134 M-Class
5

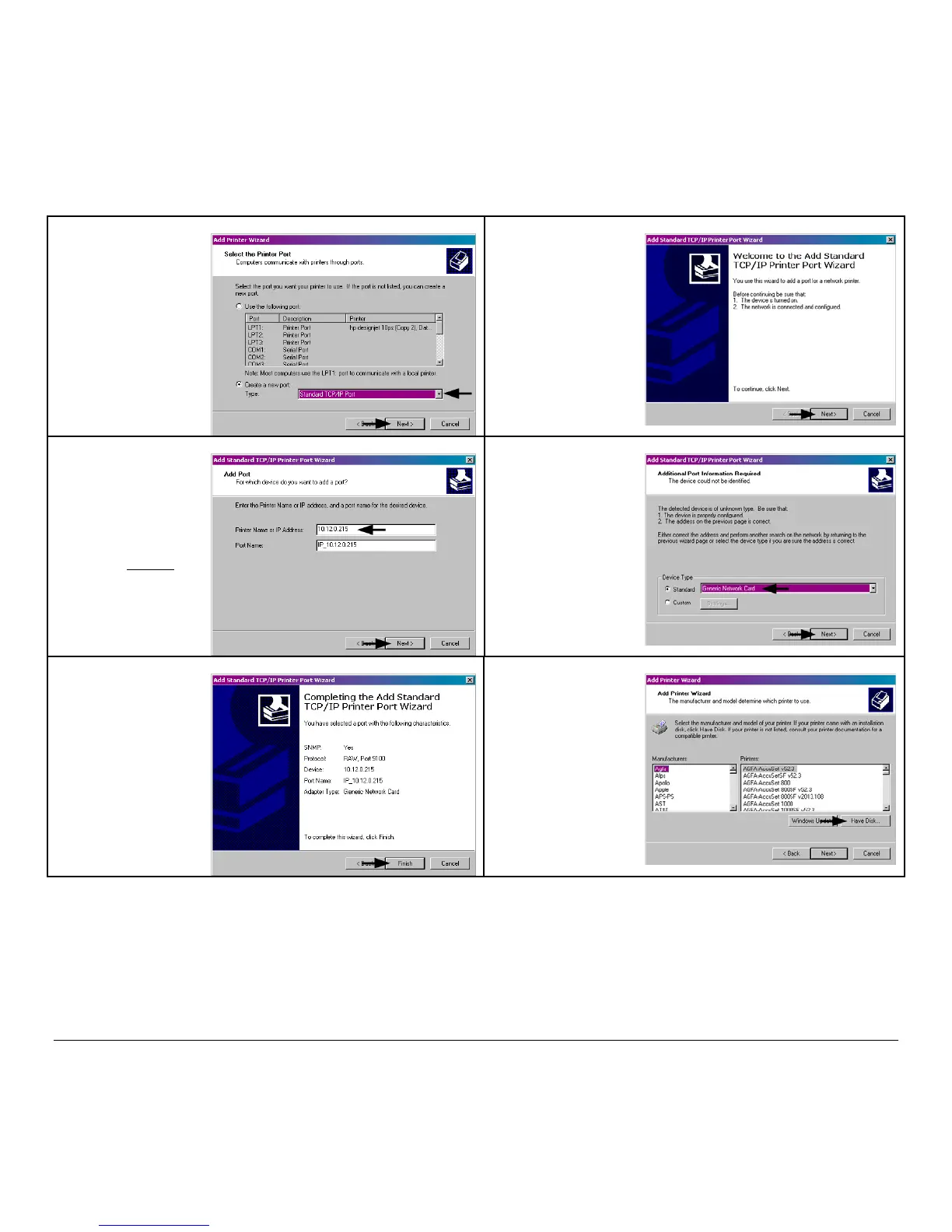

Select on ‘Create a new
port:’ and then select
‘Standard TCP/IP Port’
from the drop down
menu. Click ‘Next’
6
Click ‘Next’.
7
In the ‘Printer Name or
IP Address:’ field enter
the IP address of your
printer. The ‘Port
Name’ field does not
need to be changed.
When finished click
‘Next’.
8
Make sure ‘Standard’ is
selected and then click
‘Next’.
9
Confirm your settings
and then click ‘Finish’.
10
Click on ‘Have Disk’.

Datamax Mark II M-4206 Specifications

General

Print Resolution	203 dpi
Type	Label Printer
Print Method	Thermal Transfer
Max Print Speed	6 inches per second
Memory	16 MB SDRAM, 8 MB Flash
Interfaces	USB, Serial, Parallel
Media Width	4.5 inches
Media Length	0.25" to 99"
Max Print Width	4.25 inches (108 mm)
