PRC1099A Synthesizer Board
FILENAME:
66943
OF
994073
D
NONE
6
1
SCHEMATIC,
*
J.NEGRETE
12/18/08
THIS DOCUMENT CONTAINS PROPRIETARY AND
CONFIDENTIAL INFORMATION THAT IS NOT TO BE
PHYSICALLY REPRODUCED OR INTELLECTUALLY
TRANSFERRED WITHOUT WRITTEN PERMISSION
FROM DATRON WORLD COMMUNICATIONS, INC.
NOTES: UNLESS OTHERWISE SPECIFIED
ECO
Datron World Communications, Inc.
3055 Enterprise Court
Vista, CA 92081
TEL (760) 597-1500 FAX (760)597-1510
FD1
FIDUCIAL
FD2
FIDUCIAL
FD3
FIDUCIAL
FD4
FIDUCIAL
1. REF- PCA 009-00606
2. REF - PCB 738025
3. ALL CAPS ARE IN MICROFARADS
4. ALL RESISTORS ARE IN OHMS
FD8
FIDUCIAL
FD7
FIDUCIAL
MUX_OUT
DDSRST
PLLCS
+12VA
SPITXDT
SPICLKT
BFO_OUT
DDSIOUD
DDSCS
U_994073C_sh2
994073C_sh2.SchDoc
+12VA
U_994073C_sh3
994073C_sh3.SchDoc
SPICLKT
SPITXDT
LO3_OUT
LO1_OUT
DDSRST
DDSIOUD
DDSCS
LO2_OUT
TCXOBYPASS
U_994073C_sh4
994073C_sh4.SchDoc
LO1_OUT
MUX_OUT
PLLCS
SPITXDT
SPICLKT
U_994073C_sh5
994073C_sh5.SchDoc
LO2_OUT
LO3_OUT
TCXOBYPASS
BFO_OUT
U_994073C_sh6
994073C_sh6.SchDoc
A 06-0430 RELEASE BB
2-18-07
B
08-0403 REVISED R115 AND R61 VALUE ON SHEET 3
JN
12-18-08
C
10-0502
U16 WAS UMJ-950-D14, R72 WAS 75ohm, R71 & R73 WAS 100ohm
JN
10/04/10
D
11-0165
R101 was value 274R
BB
3-31-11
PRC1099A-MS
Figure 8-3
Synthesizer Board

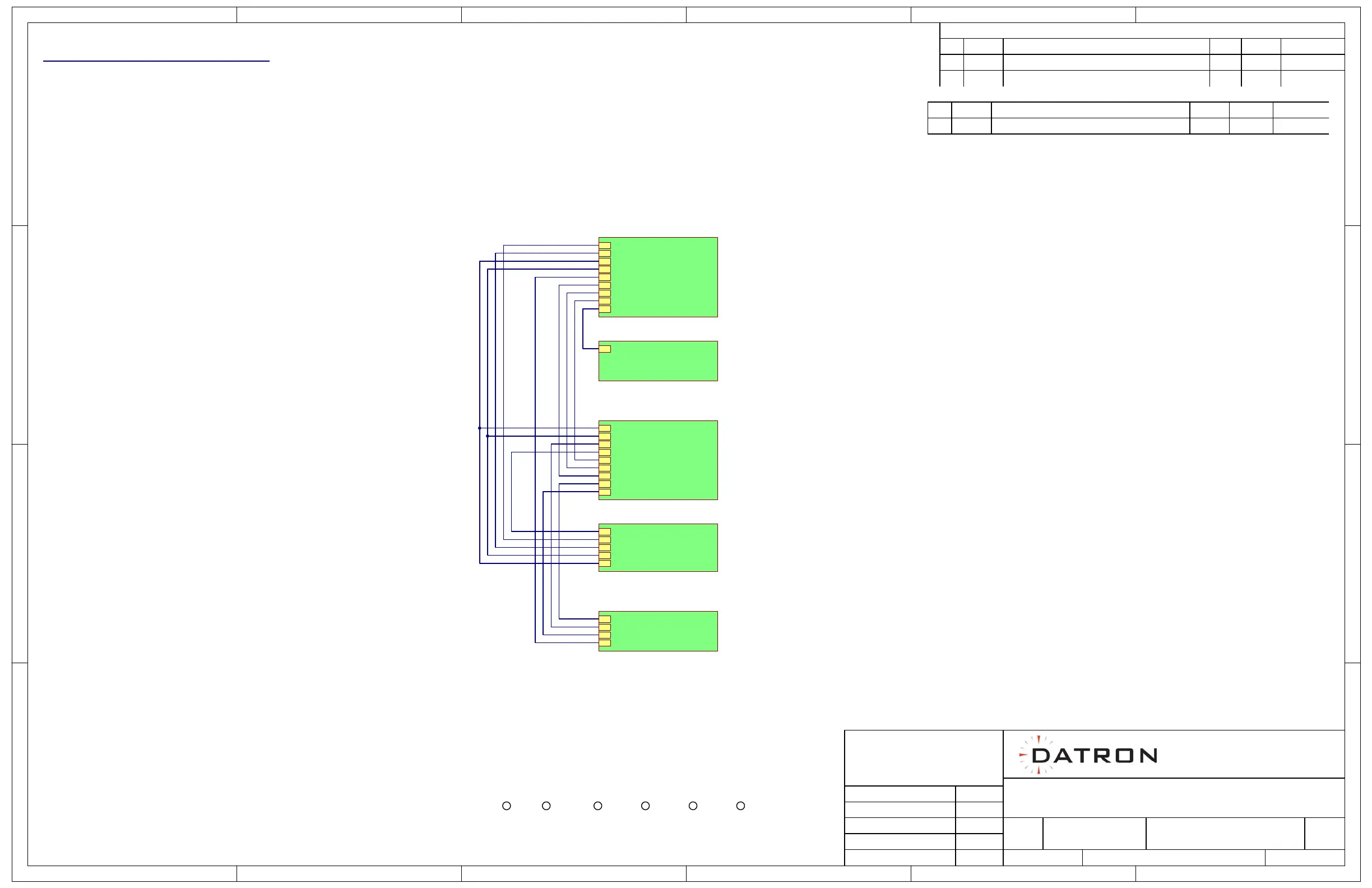

Schematic Diagram 1 of 6
(994073 Rev. D)
