13: Internal Options
13-6 PRC1099A-MS

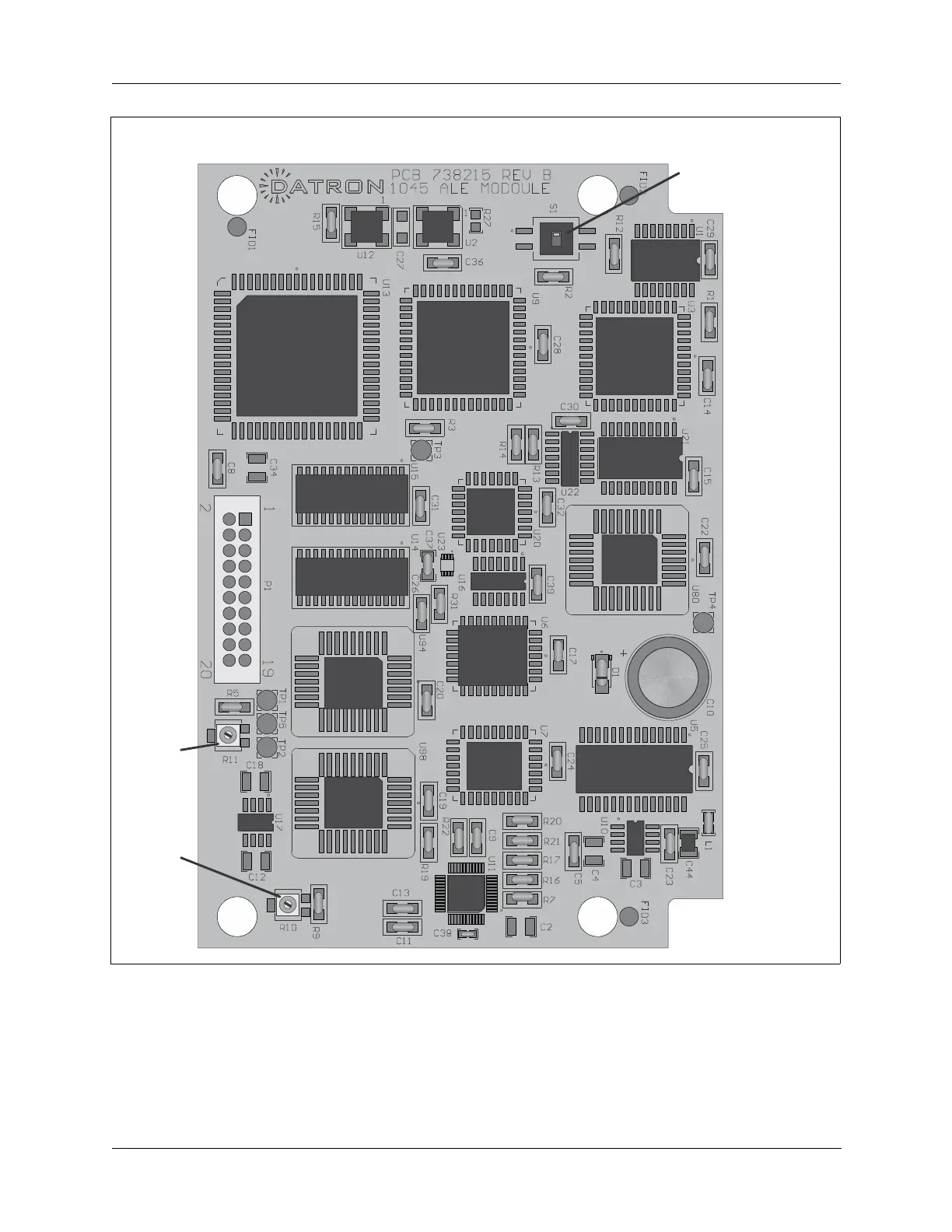

Figure 13-2 ALE Signal Connections and Adjustment Points
1. Selects normal mode (on)
for use with terminal (off)
2. Selects 9600 baud (on)
19200 baud (off)
Receive level
Adjust R11
Transmit level
Adjust R10
S1
