14: Maintenance
14-24 PRC1099A-MS

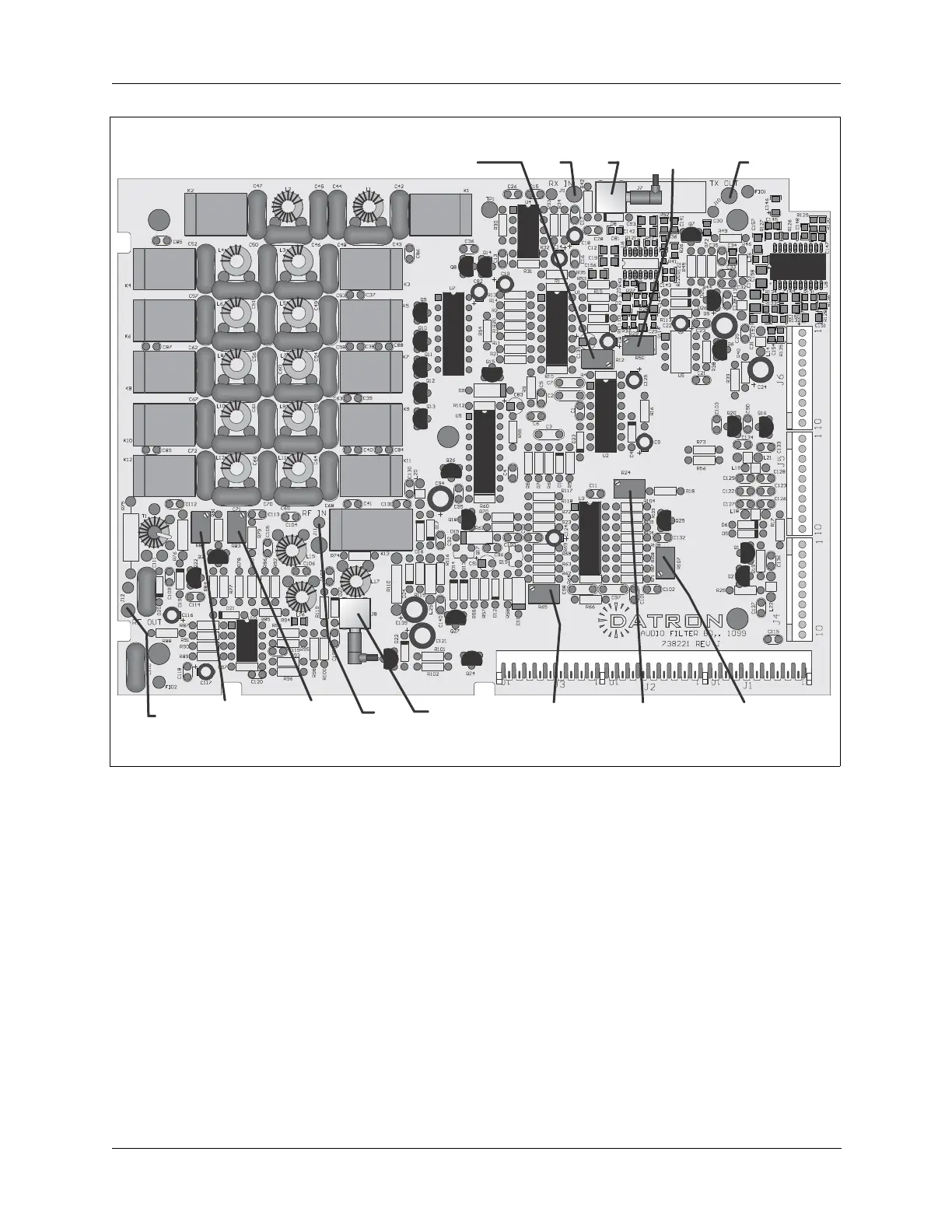

Figure 14-7 Audio/Filter Signal Connections and Adjustment Points
RX
In
TX
Out
Carrier
Balance
Adjust (R50)
BFO
In
Squelch
Adjust
(R12)
Contrast
Adjust
(R107)
Voice Detect
Adjust (R24)
CW Tone
Frequency
Adjust
(R65)
RX
Out
RF
In
High Power
Adjust (R83)
Low Power
Adjust (R82)
RF
Out
