FEATURES OF THE AMPLIFIER AND CONTROL SECTIONS
The Digipro G3 amplier is at the heart of SUB 915 and
SUB 918.
The system is silent and is controlled by a dedicated
DSP that manages the different parameters.
The sound amplication power is 900 W RMS.
The amplier panel is made up of:
WARNING!
• Input, Output and Control Section
• Power Supply Unit Section
English
• Never attempt to disassemble the
amplier in any way.
• If the module heats up excessively,
the audio volume is gradually
reduced until the module is
thermally stabilized. The audio is
automatically restored when the
normal operating temperature is
reached.
• In the event of a malfunction,
remove power supply immediately
by disconnecting the unit from
the power mains and contact an
authorised repair centre.

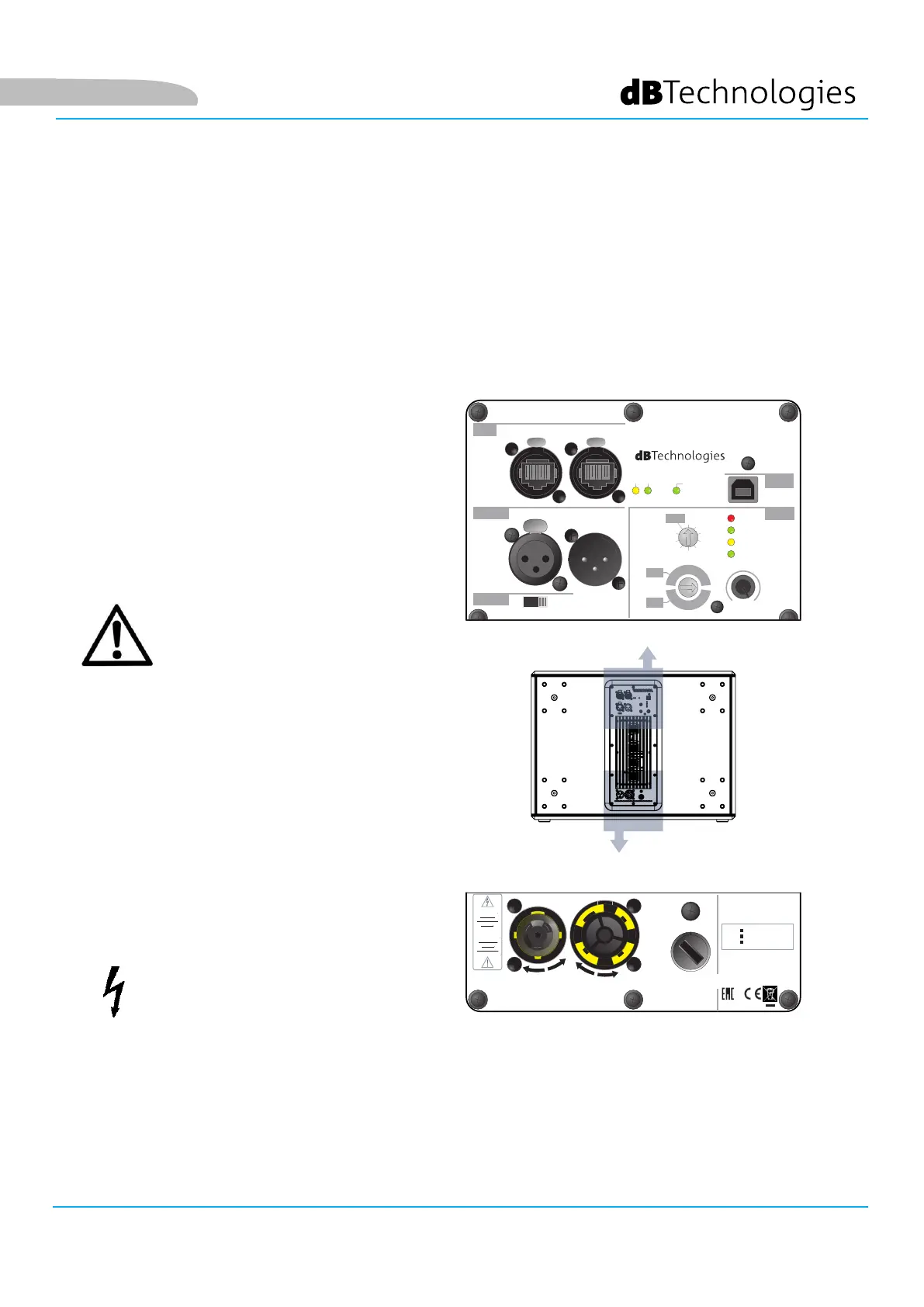

POWER SUPPLY UNIT SECTION INPUT, OUTPUT AND CONTROL SECTION
• Never remove the front grille
protecting the product. To prevent
the danger of electric shock, in
case of accidental damage or
replacement of the protection
grille (to be carried out at the
service), immediately disconnect
the power supply. Never connect
mains power supply when the
grille is removed.
WARNING!
