dB Technologies SUB 915 - Power Supply Unit Section

23
(REPLACE FUSE WITH SAME RATINGS)
(REMPLACER LE FUSIBLE AVEC LE MÊME TYPE)
MAINS FUSE
100-120V~ (T8A L 250V~)
220-240V~ (T4A L 250V~)
MAINS LINKAUTO-RANGE
MAINS INPUT
AEB INDUSTRIALE S.R.L.
Via Brodolini, 8
Località Crespellano
40053 VALSAMOGGIA (BO) - ITALY
“CAUTION”
RISK OF
ELECTRICAL
SHOCK
DO NOT OPEN
“ATTENTION”
RISQUE DE
CHOCH
ELECTRIQUE
NE PAS OUVRIR
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
Serial Number
SUB 915
SUB 918
220-240V~ (13,3Amax)
3050Wmax
100-120V~ (15,3Amax)
1680Wmax
220-240V~ 50-60Hz
2,7A
100-120V~ 50-60Hz
4,7A
11
10
12
SUB915 - SUB918 Code 420120322 REV. 1.0

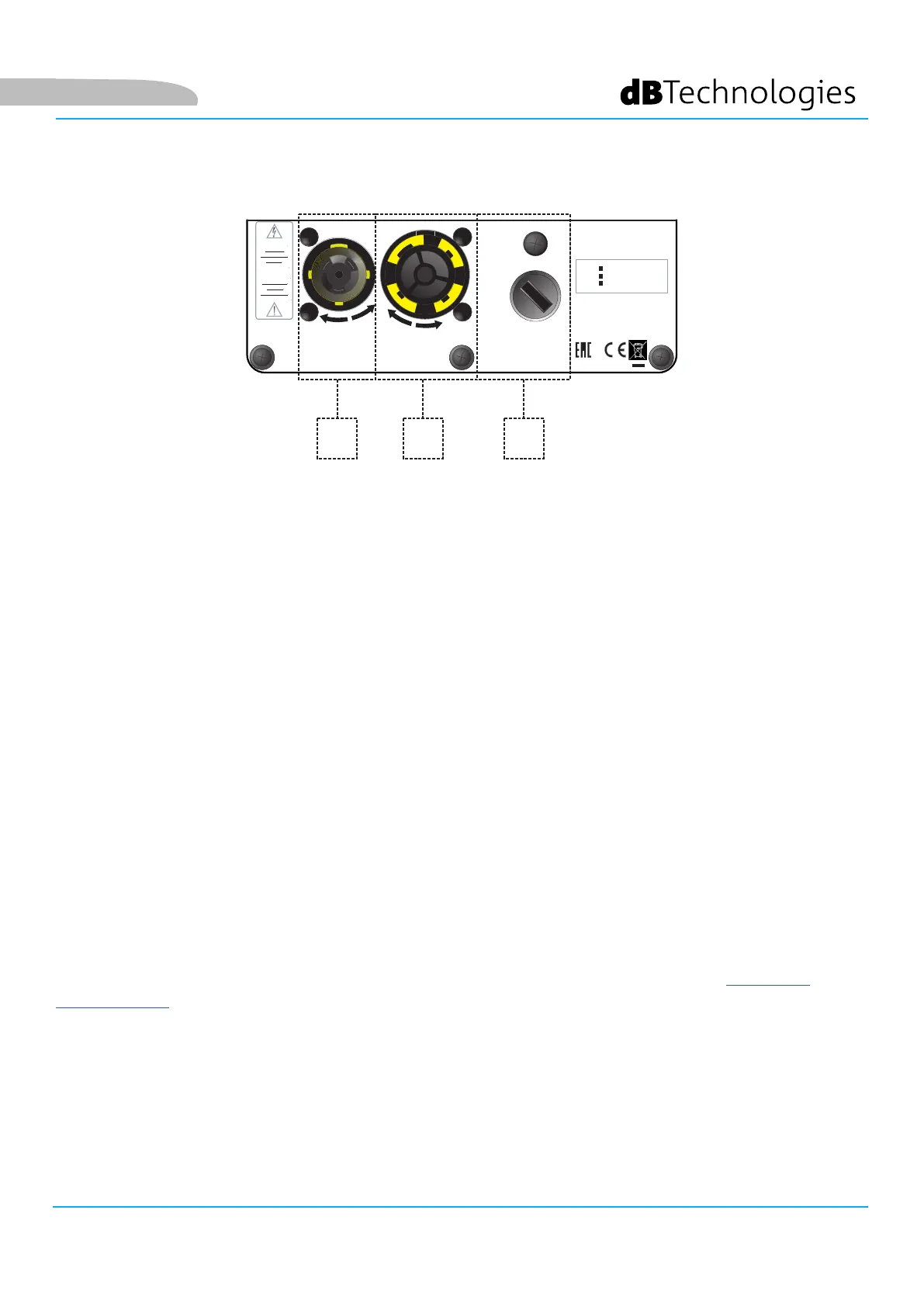

10. MAINS INPUT
Compatible with powerCON TRUE1® connector.
11. MAINS LINK
Compatible with powerCON TRUE1® connector for power daisy chain to other modules.
To nd the maximum number of modules that can be connected in a re-linked system, see the TECHNICAL
SPECIFICATIONS section.
POWER SUPPLY UNIT SECTION
English
7. Subwoofer Delay
Rotary control that allows setting the delay in ms.
8. RDNet section with control LEDs
Section compatible with network cables with etherCON/RJ45 connectors.
In particular, "Data in" must be connected to devices such as RDNet Control 2 or Control 8; "Data Out" is
used to link the network to additional modules of the line array in daisy-chain conguration.
The LEDs relating to module network operation (RDNet) ensure real-time monitoring.
In particular, if "Link" is on the RDNet network is active and has acknowledged the device, if "Active" is
ashing there is data trafc, if "Remote Preset Active" is on all local control on the amplier panel are by-
passed by the RDNet remote control.
9. Service Data USB
USB connector for rmware update.
12. MAINS FUSE
Housing for the mains fuse
