Gain -36 to 6 dB
Sets the level of the selected notch filter. Set to +6dB to help find unwanted feedback, then set to -3dB
to -36dB to remove.
Q 16 to 128
Selects the Q of the selected notch filter.
3.10 - Matrix Mixer
This adjusts the mix and output levels of the 220i. If there is a Ducker in the signal path this also
provides for bypassing the ducker module to one or both outputs.

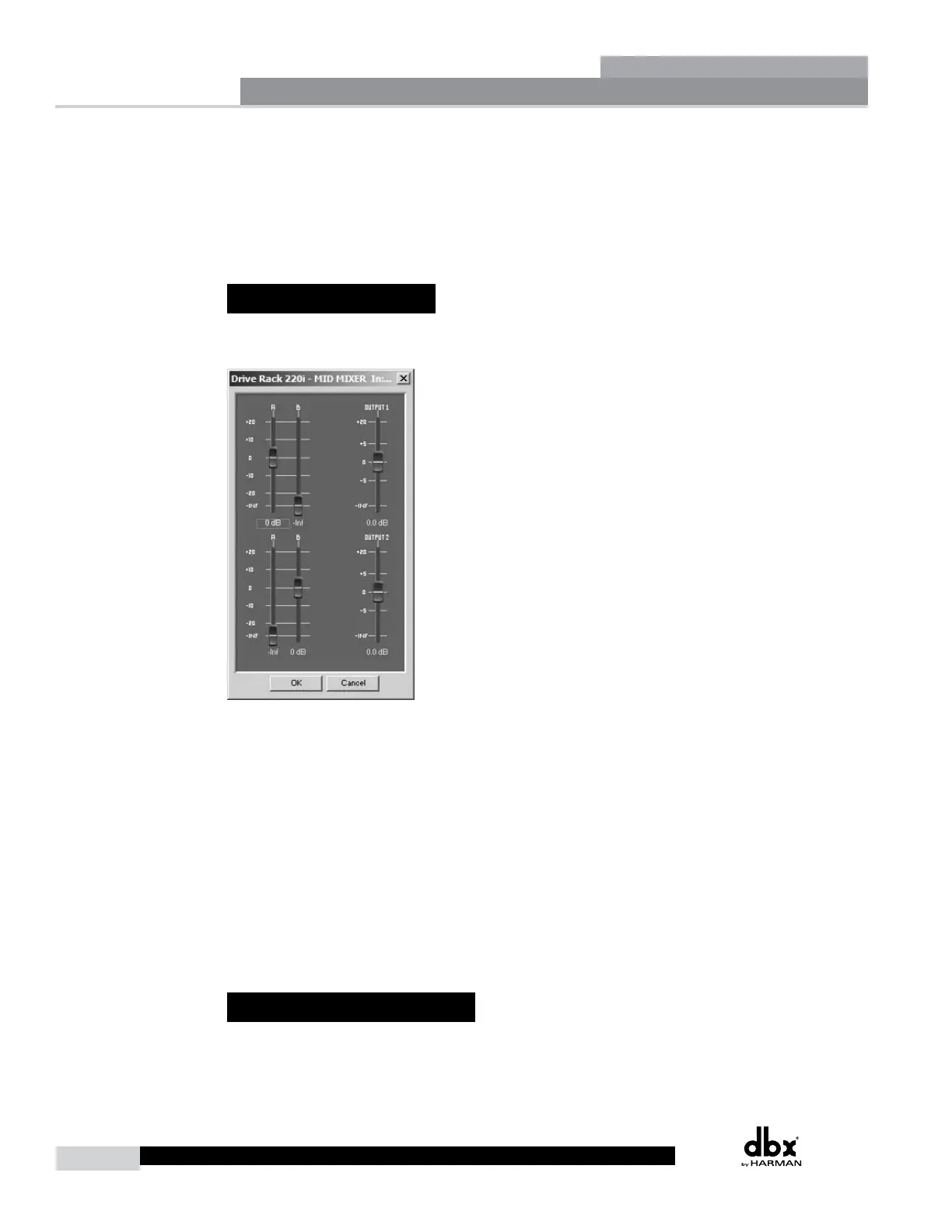

Input A Level -Inf to 20dB
Adjusts the level from signal path A.
Input B Level -Inf to 20dB
Adjusts the level from signal path B.
Output 1 Level -Inf to 20dB
Adjusts the output level of Output 1.
Output 2 Level -Inf to 20dB
Adjusts the output level of Output 2.
3.11 - Post-Matrix PEQ
In addition to the pre-matrix EQ options within the signal path, the 220i also offers a 4-band parametric
EQ after the matrix section. The parameters for the post-matrix EQ are as follows and are user
adjustable.
