Using a Standard Delius and Purcell with a CD Player
If your Delius and Purcell are not 1394-equipped, you can still upsample the
output from a standard CD player to 24 bit 192kS/s.
L R
R L
Balanced
Outputs
To Power Amplifier or Preamplifier
Unbalanced
Outputs
- or -
dCS Purcell Upsampler
DIGITAL INPUTS DIGITAL OUTPUTS POWER
1
RCA
BNC
AES RCA
BNC
AES1 AES 2
PUSH
SUC
1394
OPTION
TOSLINK
ST A B
IN
WORDCLOCK
OUT
16 bits
44.1kS/s
dCS Delius DAC
DIGITAL OUT
L
R
Hand Crafted by
The Red Hot CD Player Co.
WORD CLK IN
ANALOGUE OUTPUTS DIGITAL INPUTS POWER
IN - WORDCLOCK - OUT
BNC
RCA1
TOSLINK
AES1 AES2
PUSH
L R
L
R RCA2
ST
PUSH
DIGITAL OUT
REC
1
SUC
1394
24 bits
192kS/s

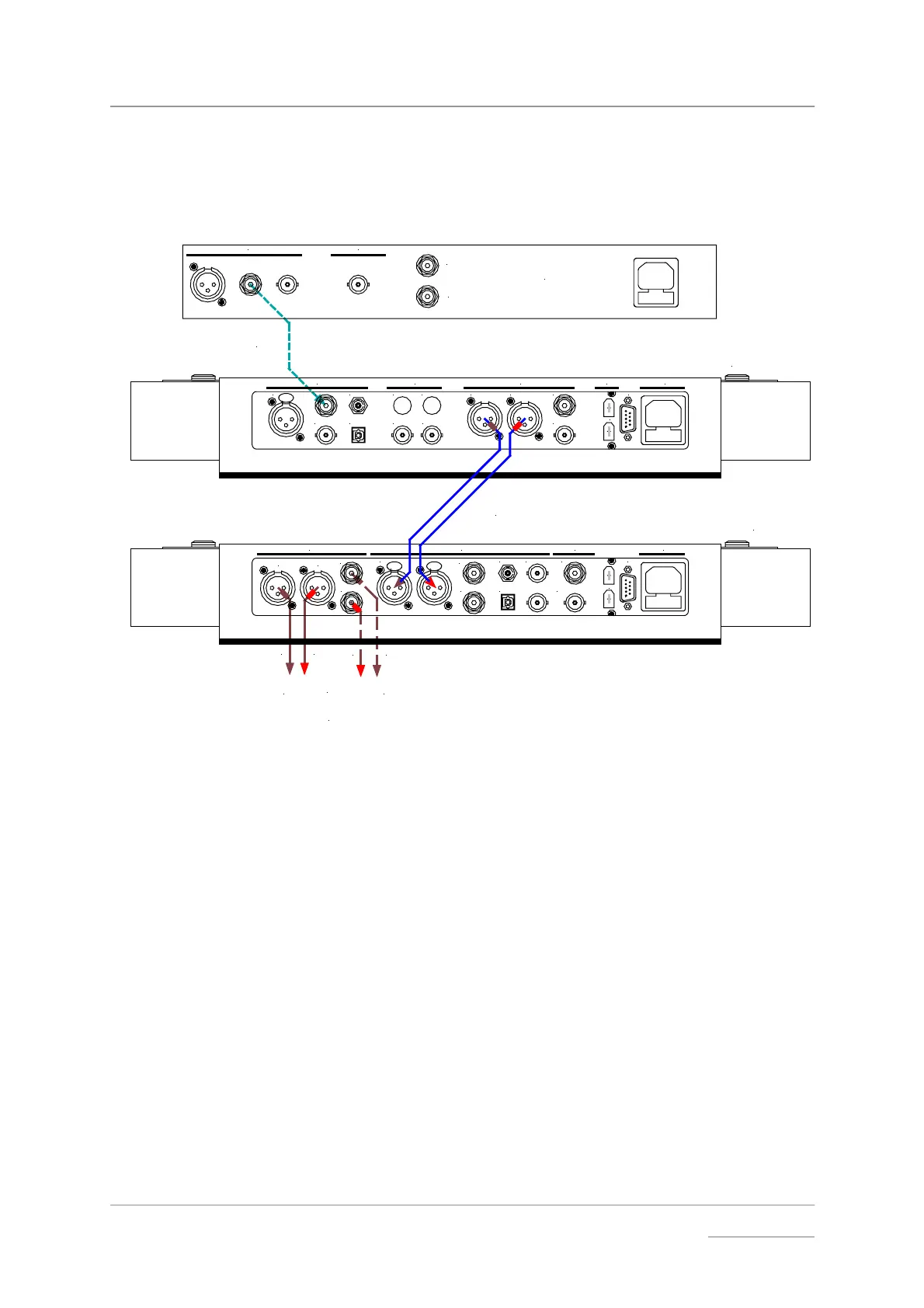

Figure 5 – Using Delius with Purcell and a CD player
do this: Connect up as shown above.
Purcell setup:
do this: Open the menu and run the Factory routine. You can connect any of Purcell’s
digital inputs to the CD player - use Purcell’s Input button to select it. Use the
Output button to set the 44.1→
→→
→192 conversion.
Delius setup:
do this: Open the menu, run the Factory and RstSync routines. Use the Input button to
select AES 1 AND AES 2 inputs. Use the Volume control to set a comfortable
listening level. Open the menu again and choose a different Filter if you wish.
