Make sure to turn it off before disassembly. Risk of electric shock.

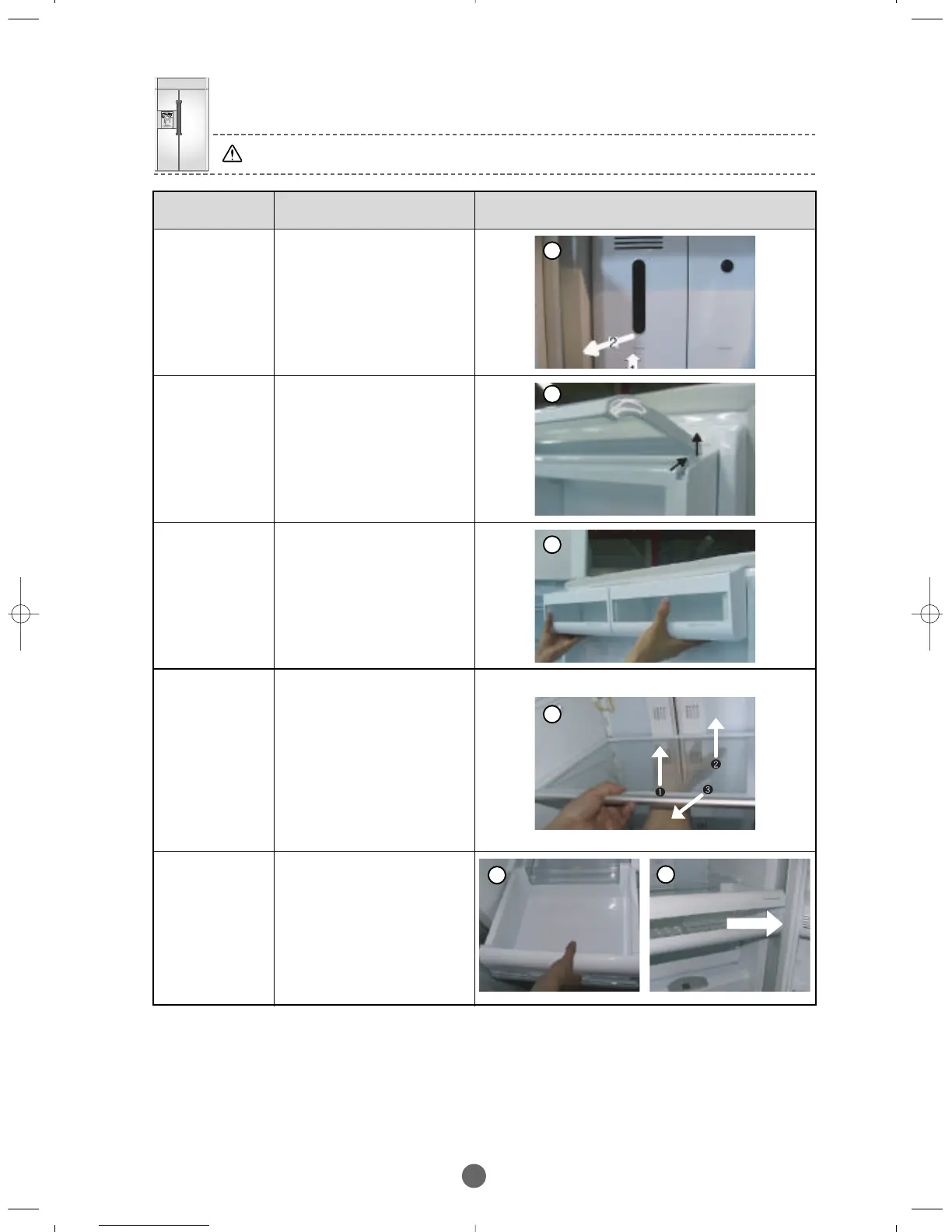

PART NAME DESCRIPTION FIGURE
Ice Storage Bin
① Hold the bottom of the
left long slot with your
hand, lift up and pull
forward to remove it.
R-Room –
Dairy Bin Cover
① Flip the cover up and
push it back to the
direction as indicated
with the arrow marks,
and lift it up to remove it.
Dairy Bin
① Lift Dairy Guard up with
both hands and remove
it.
Shelf (Common
to R- and
F-Room)
① Hold the shelf with one
hand and lift the rear
up with the other hand,
and pull it forward.
Drawer
(Common to
R- and
F-Room)
① Pull forward until it
stops at the retaining
hook,then lift it up and
pull out. Make sure not
to damage the door
gasket with the sharp
corners of the draw.
Fridge pan
1
1
1
1
1
1
