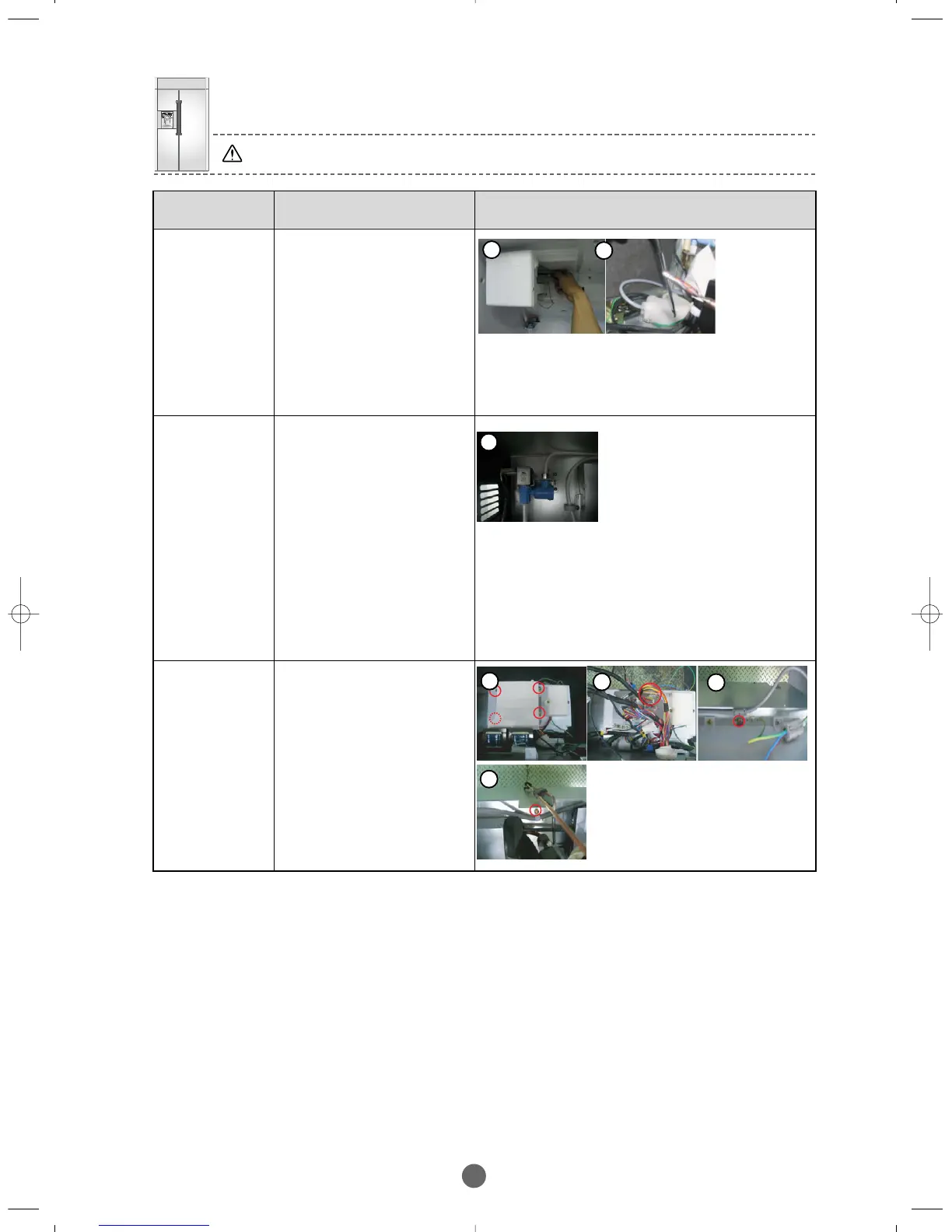

DCS RF48SS - Water Valve; Power Cord

53
Make sure to turn it off before disassembly. Risk of electric shock.
PART NAME DESCRIPTION FIGURE
HEATER-
WATER PIPE
①
Remove the 2 screws over
the Ice Maker and the power
core housing, pull the Ice
Maker Kit forward to
disassemble.
② Disassemble 2 screws
pull out the cover.
③ If needed, disassemble
the Heater Ass’y after
disassembling supply
water hose.
Water Supply Clip
WATER VALVE
① Turn off Water supply,
disassemble Cover Grill
then, disassemble the
wire Housing of the
Water Valve located at
the left back.
② Disassemble hex nut
supply hose using
wrench.
③ Disassemble Water
Valve after
disassembling the
bracket and screw which
secure the Water Valve.
POWER CORD
① Disassemble Cover
Grill, disassemble the
circled 4 screws for
mounting Housing Cover.
② Pull out the Housing of
the Power Cord located
at the top of the terminal
block.
③ Disassemble (circled) 2
screws located at the top
of the machine
compartment.
1
2
1
1
2
2
3
