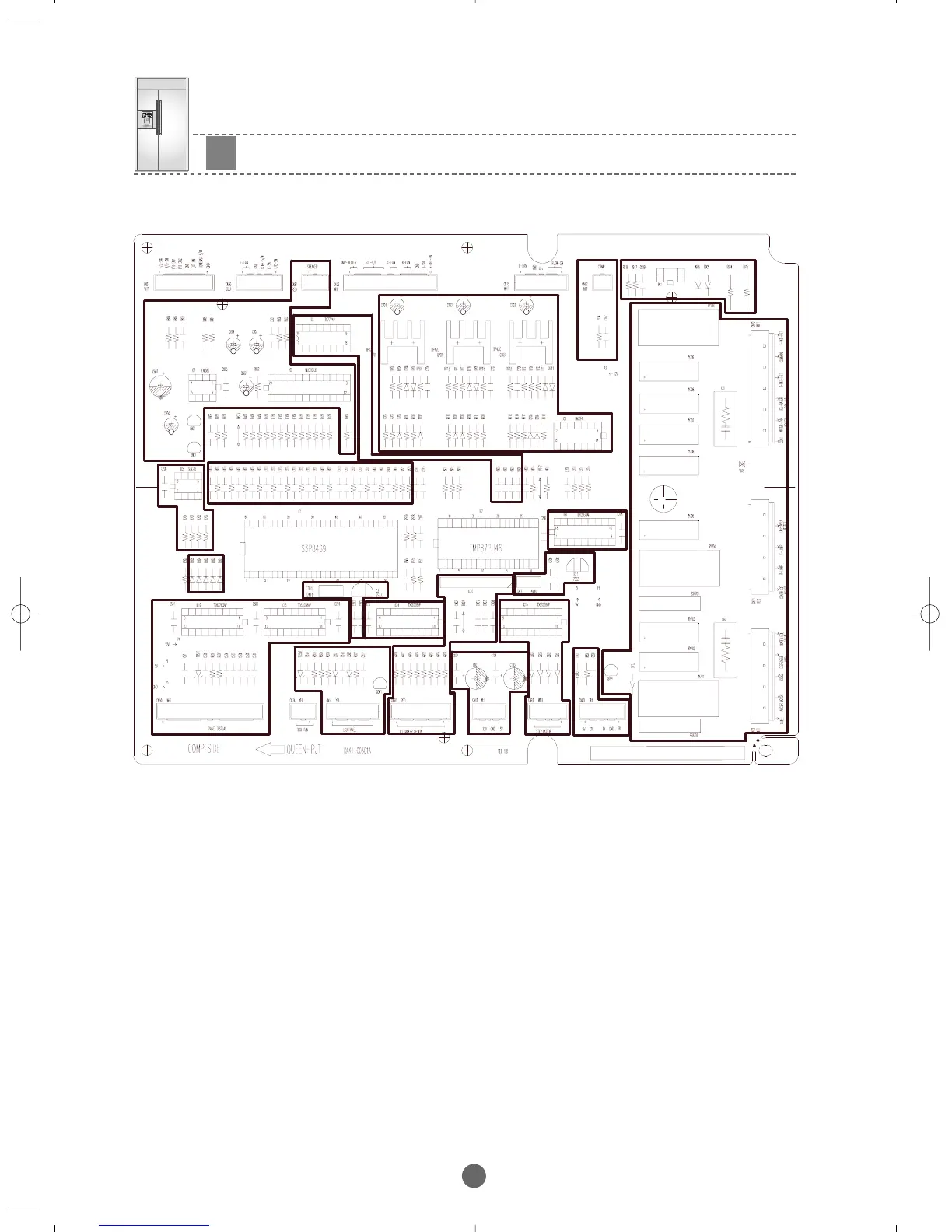

10-1. PARTS DESCRIPTION (MAIN)
⑮
⑮
⑭
⑫
⑪
⑤
⑧⑮
⑬
④
⑬
①
①①
⑥
⑦
③
⑨
① Power
-. Power supply for the product from SMPS
② MICOM Periphery Circuit
-. Oscillator & Reset circuit for MICOM controlling
③ Option Selecting Section
④ Sensors & Switch Periphery Circuit
-. It transmits sensor and S/W on/off signals to MICOM after illiminating noises.
⑤ Fan Driving Circuit
-. Fridge, Freezer & Machine Compartment Fan Motor Driving Circuit
⑥ LCD Panel Communication Circuit
-. Communication Circuit between Main and LCD Panel
⑦ Convertible Room Control Circuit
-. Temp Display & Function Selection of Convertible Room
⑧ Inverter Compressor Control Circuit
-. Comp RPM signal output according to load conditions
⑨ EEPROM
-. Storage of various data
⑩ Ice Maker Driving Circuit
-. Circuit for Ice Maker operation
⑪ Damper Driving Circuit
-. Damper for Temp Control of Convertible Room
⑫ Step Motor Driving Circuit
-. Valve driving for the controlling of freezer/fridge refrigerant flow
⑬ Driver IC
-. Driver IC for Relay
⑭ AC Load Control
-. Relay, SSR, Surge Killer
10
PARTS DESCRIPTION
