1~2. COMP RPM OP SIGNAL

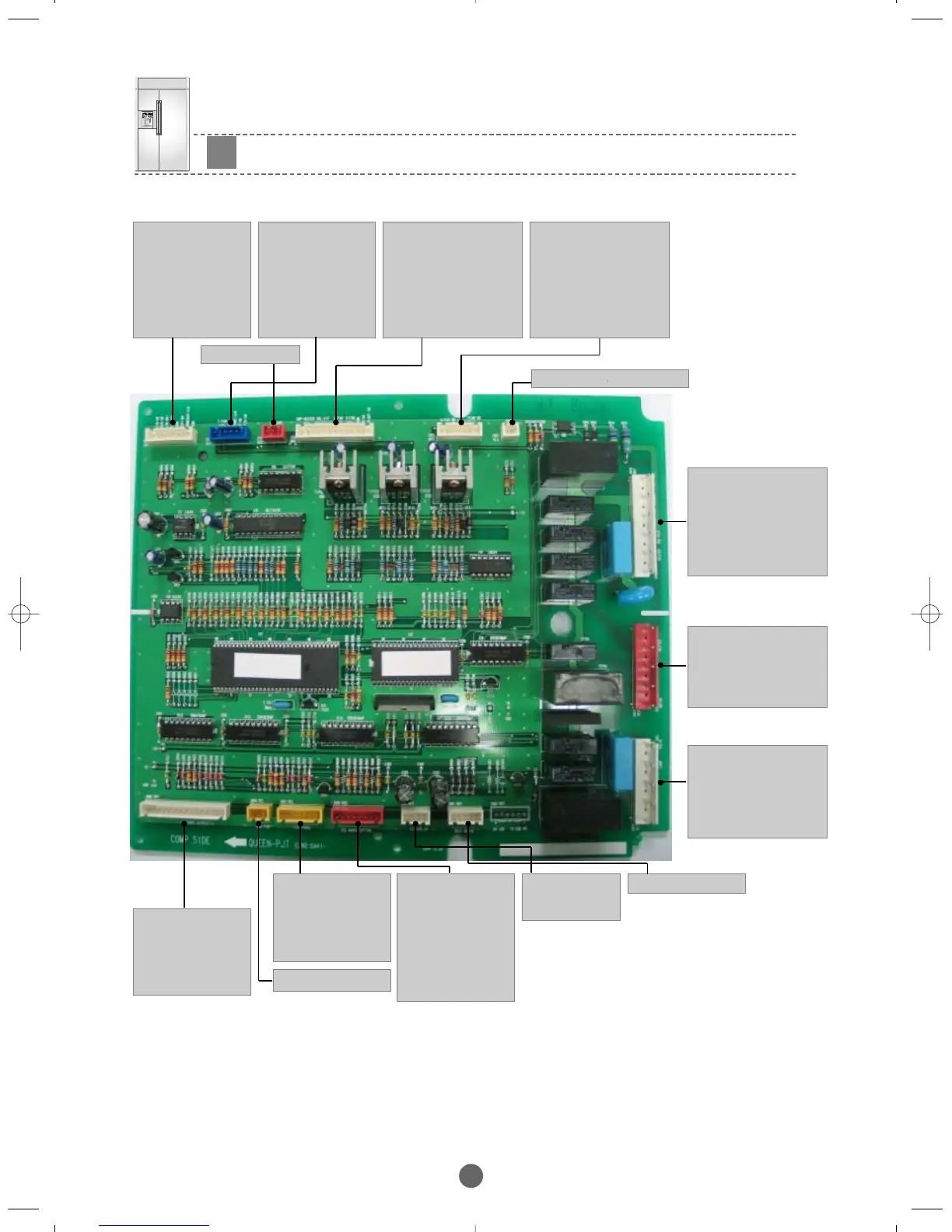

12-1. CONNECTOR ARRANGEMENT DESCRIPTION (MAIN)
1. F-DOOR S/W
2. R-DOOR S/W
3. ICE ROUTE S/W1
4. ICE ROUTE S/W2
5. GND
6. DISPENSER S/W
7. N/A
8. GND
N/A
N/A
1~11. CONVERTIBLE
ROOM DISPLAY
12~14.
CONVERTIBLE
ROOM LAMP
15. KEY IN
1~3
LCD PANEL SIGNAL
4. PANEL 12V VOLTAGE
5. PANEL 5V VOLTAGE
6. N/A
7. GND
1~2
ICE MAKER MOTOR
3. GND
4. ICE MAKER SENSOR
5. TEST S/W
6. HALL IC
VOLTAGE
7. HALL IC OUTPUT
8. GND
1. 5V OP VOLTAGE
2. GND
3~4. 12V VOLTAGE
1~5. STEP VALVE
1. F-FAN
OP SIGNAL
2. F-FAN OP VOLTAGE
3. GND
4. CUBE
SOLENOID S/W
5. F-SENSOR
6. F-DEF SENSOR
1~2. DAMPER HEATER
3~6. DAMPER MOTOR
7~8. CONVERTIBLE FAN
9. R-FAN OP SIGNAL
10. R-FAN OP VOLTAGE
11. GND
12. R-SENSOR
13. R-DEF SENSOR
1. C-FAN
OP SIGNAL
2. C-FAN OP VOLTAGE
3. GND
4. N/A
5. FLOW SENSOR OUT
6. FLOW SENSOR GND
7. FLOW SENSOR VOLTAGE
1. F-DEF HEATER
3. COMMON(LIVE)
5. R-DEF HEATER
7. ICE WATER
SOLENOID VALVE
9. WATER TANK HEATER
11. COMMON(NETURAL)
1. N/A
3. DISPENSER HEATER
5. F-ROOM LAMP
7. R-ROOM LAMP
9. COVER ICE MOTOR
1. WATER
SOLENOID VALVE
3. DISPENSER LAMP
5. COMMON(NETURAL)
7. AUGER MOTOR
9. CUBE SOLENOID
