9

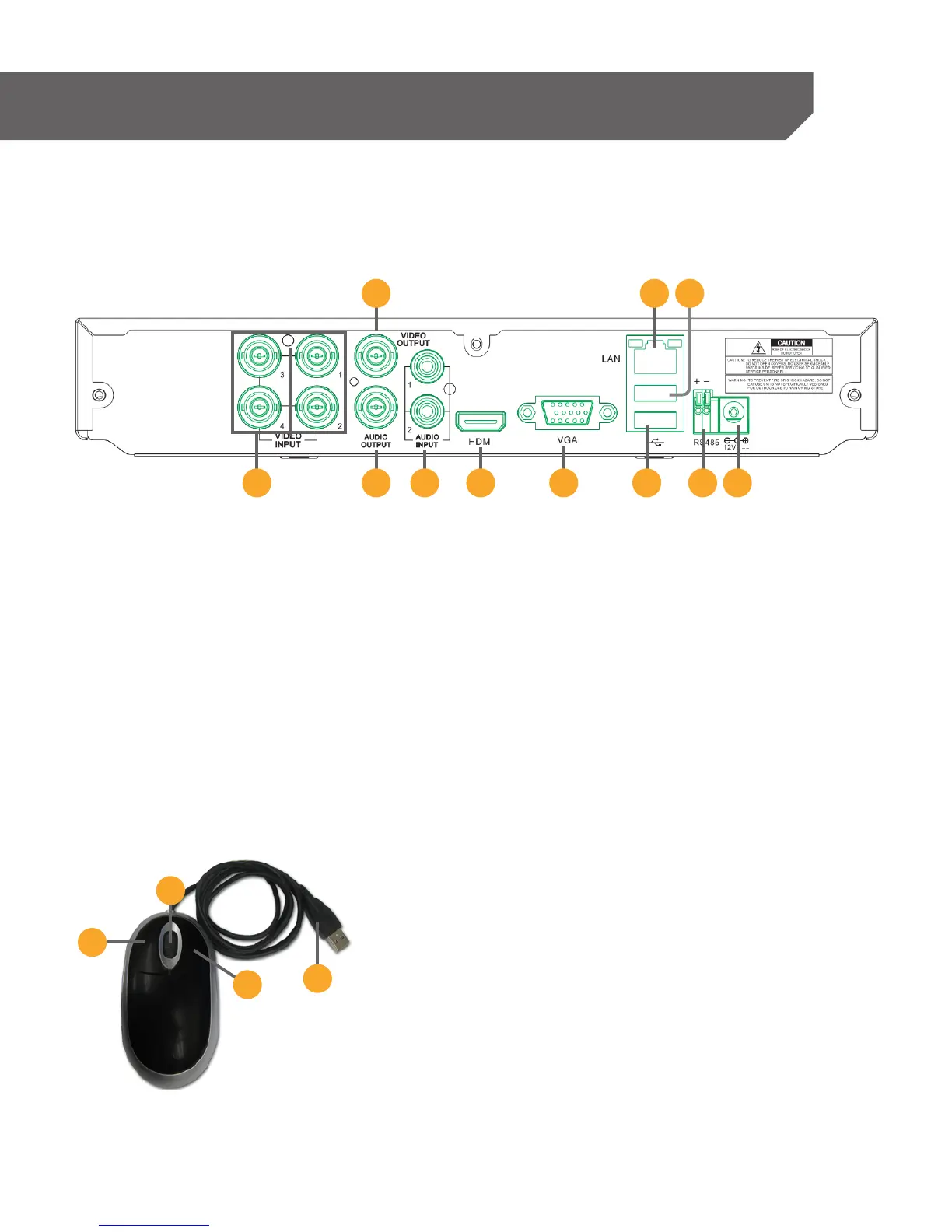

DVR BACK
1. Video Output: Accepts up to two monitors
2. LAN Connection: Connects to router
3. Mouse input: Connect the USB (before power up)
4. Camera Connect: Camera connections
(4ch or 8ch)
5. Audio Output: Connects to speaker/audio input
(not included)
6. Audio Input: Accepts a microphone and/or
audio-supported camera (not included)
7. HDMI Input: Connects to HDMI
8. VGA: Connects to VGA monitor
9. USB Connection: Connect USB drive for backup.
10. PTZ: Connects to two-wire PTZ camera
(not included)
11. Power Connection: Connect DVR to
power source
MOUSE
1. Select: Click this button to select
highlighted object.
2. Scroll Wheel: This wheel has no function on
this DVR.
3. USB Connection: Connects to the USB mouse
port (top port) to the back of the DVR.
4. Deselect: Allows you to exit the menu you are
currently in. When in live view, it will open
the submenu.
8
9
11
1
2
3
4 5
6
7 10
*May not be exactly as shown. Not all models come with HDMI ports.
BUTTONS AND CONNECTIONS
1
4
2
3
