USER'SMANUALOFEMBEDDEDDIGITALVIDEORECORDER

Page 4 of 27

1.2OpenCaseAndConnectCables

1.2.1open‐caseinspection

Firstofall,pleasecheckifthereisapperantdamageofthepackingassoonasyoureceivedtheproducts.

thematerialcanprotectfromthedamageverywellinthetransportation.

Secondly,takeouttheproduct,takeawaytheprotectionfilmfromtheDVRtocheck

ifthereisdamage.

Thirdly,opencase,checkifthereisanylooseofdatacableoffrontpanel,powercable,connectionbetweenfan

powerandmotherboard.

1.2.1.1Frontpanelandrearpanel

Thereareinstructionsofhowtousekeysonthefrontpanelandtheinterfaceson

rearpanel

pleasecheckthemodelno.withtheoneyouordered.

Asforthelablesonthepanel,pleasetakegoodcareofthem,whichisveryimportanttoourafter‐saleservice.

youneedtoofferthemodelno.andserailno.duringtheafter‐saleservice.

1.2.1.2After

opencase,needtocheck

Besidescheckingobviousdamage,alsoneedtocheckifthereisanylooseoffrontpaneldatacable,connect

betweenpowerandmotherboard

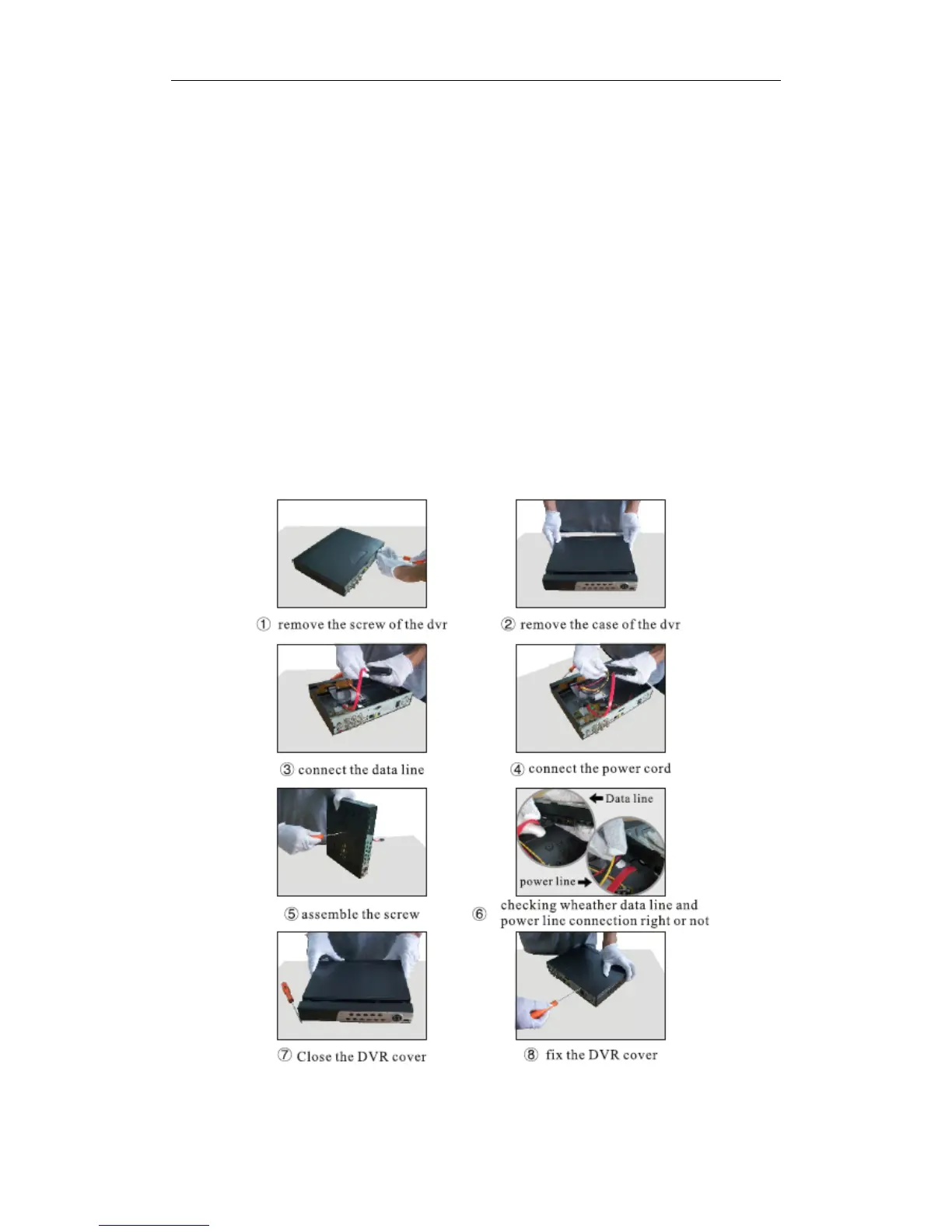

1.2.2HDInstall

makesuretoinstalltheHDDwhenufirstuseit.


