01.01.2022 ASSEMBLY AND OPERATING MANUAL DEGER D25H, D60H, D80 and D100 Page 11

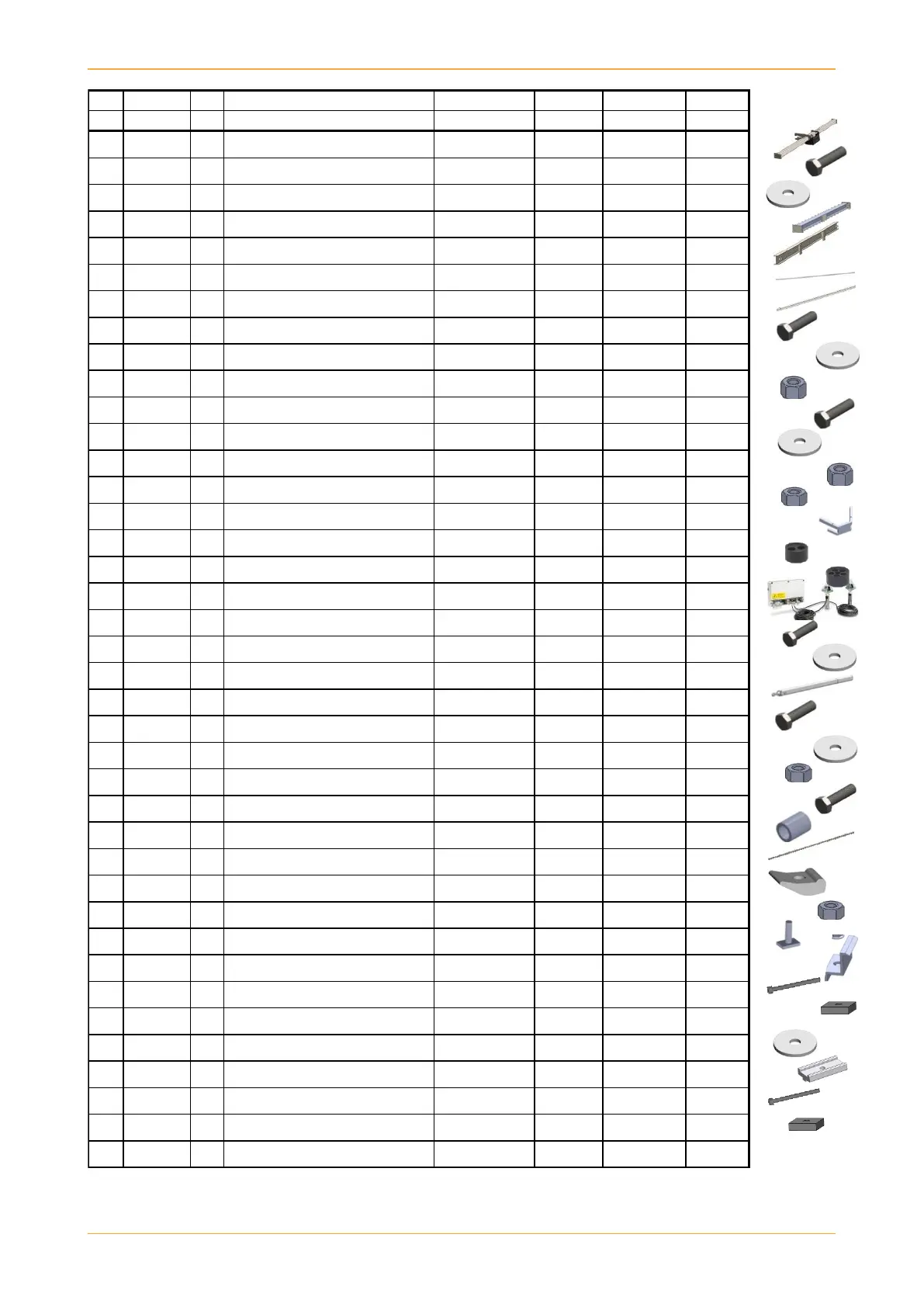

Pos. Item No.
Qty. Name Dimensions Weight Use System
in mm in kg
1 1 Rotating head with central tube
370x750x4040 400
all systems
2 6100025 18 Bolt DIN933 M16x75 0.2
Enclosed with
rotating head
alle
Systeme
3 6300010 18 Washer DIN125 A17 0.01
Enclosed with
rotating head
alle
Systeme
4 3900002 2
Cross-bar 160x250x2420 80
Base frame all systems
5 ** 2
Longitudinal beam 100x190x ** max. 155
Base frame all systems
6 3600202 2 Tension rope 3743 *
Base frame D100
7 3900005 2
U-section 60x75x2500 15
Base fame all systems
8 6100142 16 Bolt DIN933, 10.9 M16x70 0.02
Enclosed with
base frame
all systems
9 6300010 32
Washer DIN125 A17 0.01
Enclosed with
base frame
all systems
10 6200031 16
Hexagon nut DIN985 M16 0.03
Enclosed with
base frame
all systems
11 6100143 12 Bolt DIN933, 8.8
M12x40 0.04
Enclosed with
base frame
all systems
12 6300009 26
Washer DIN125 A13 0.01
Enclosed with
base frame
all systems
13 6200026 12
Hexagon nut DIN985 M12 0.02
Enclosed with
base frame
all systems
14 6200011 4
Hexagon nut DIN934 M12 0.02
Enclosed with
base frame
only D100
15 8100032 1
Bumerang II cpl. 55x90x150 0.4
all systems
16 5500110 2 Multiple-seal M25 0.01
Enclosed with
cable prefabr.
alle
Systeme
17 5500116 1 Multiple-seal M40 0.01
Enclosed with
cable prefabr.
alle
Systeme
18 8100141 1 Control complete EC-6
210x250x290 2
all systems
19 6100095 3 Bolt DIN933 M8x12 0.03
Enclosed with
EC-6
alle
Systeme
20 6300025 2 Washer DIN125 A9 0.01
Enclosed with
EC-6
alle
Systeme
21 4100081 1 Elevation drive T7 80x90x1610 21
all systems
22 6100136 1 Bolt DIN931, 10.9
M20x110 0.04
Enclosed with
elevation drive
all systems
23 6300026 2
Washer DIN125 A21 0.03
Enclosed with
elevation drive
all systems
24 6200032 1
Hexagon nut DIN985 M20 0.07
Enclosed with
elevation drive
all systems
25 6100145 2 Bolt DIN933, 10.9
M14x45 0.08
Enclosed with
elevation drive
all systems
26 3900020 2
Friction bearing shaft Ø30x22 0.01
Enclosed with
elevation drive
all systems
27
* * Alu profile F-Set-D big T-slot *
1.496
kg/m
all systems
28 6900011
* Clamping piece MTH M10 0.08
Aluminum
fastening
all systems
29 6200014
* Hexagon nut DIN934 M10 0.02
Aluminum
fastening
all systems
30 6900235
* Square head bolt M10x35 0.02
Aluminum
fastening
all systems
31
* * End clamp * 0.02
Module
fastening
all systems
32
* * DIN912-A2 M8x* *
Module
fastening
all systems
33 6900007
* Sliding nut M8 20x20x5 0.01
Module
fastening
all systems
34 6300060
* middle plate round Ø25x6.4x3 0.01
Module
fastening
D80, D100
35 6900016 * Centre plate HD 26x50 0.05
Module
fastening
D60H
36 * * DIN912-A2 M6x* *
Module
fastening
all systems
37 6900006
* Sliding nut M6 20x20x5 0.01
Module
fastening
all systems
38 3600200 * L Profile 60x80x7 0.01
Enclosed with
base frame
all systems
39 3600201 * Angle tie rod 103x55x5 0.01
Enclosed with
base frame
all systems
* The article number, the exact quantity and dimensions depend on the size and type of module configuration.
** Depends on the size of system (D25H, D60H, D80, D100)
Article number, exact quantity and dimensions can be found in the delivery note.
