01.01.2022 ASSEMBLY AND OPERATING MANUAL DEGER D25H, D60H, D80 and D100 Page 35
Holding plate for
junction box

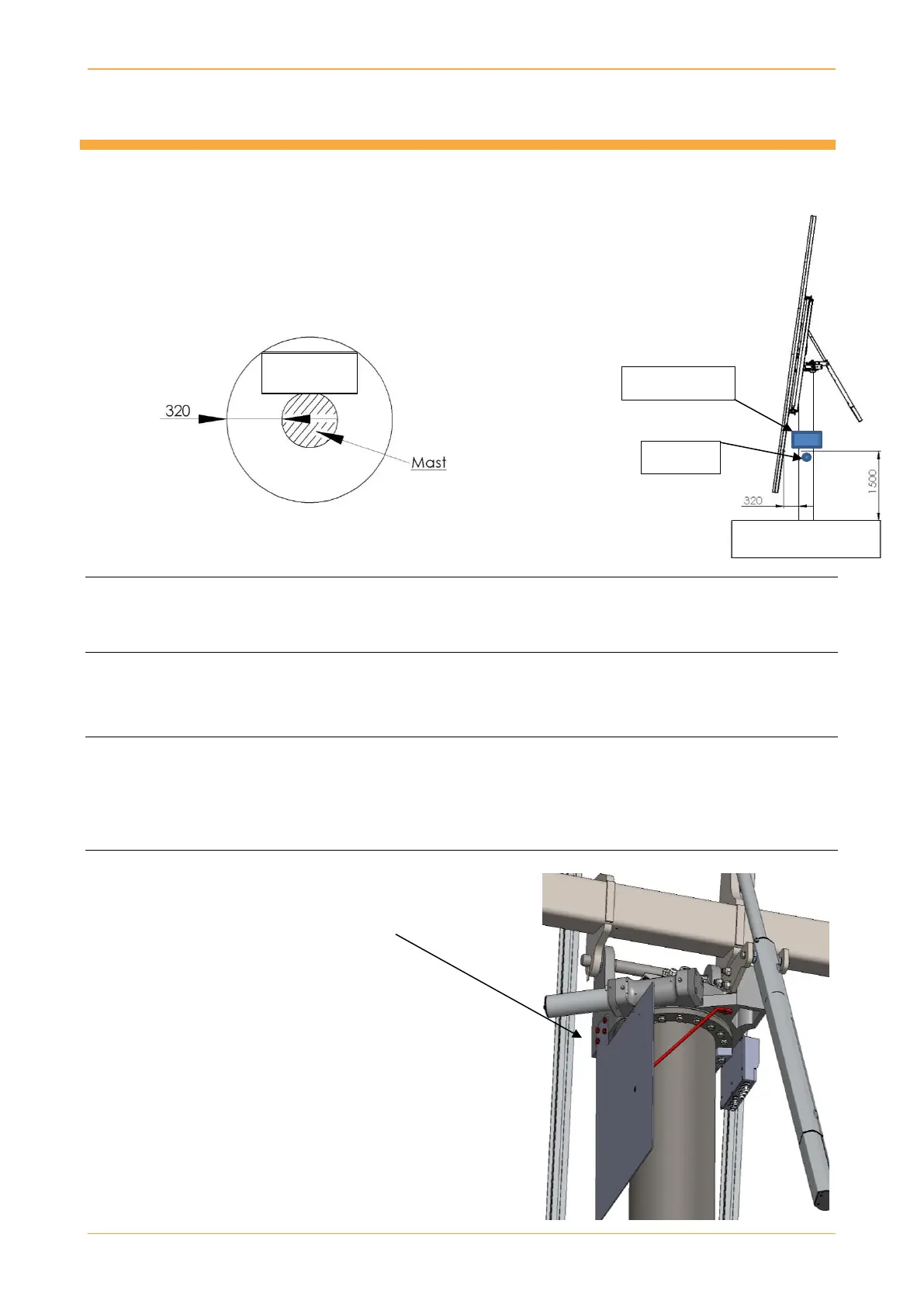

11 Optional accessories
11.1 Holding plate for junction box on mast
With this holding plate, the junction box can be fastened on the mast.
The holding plate for the junction box is mounted on the north side of the mast. It is fastened with the
supplied hose clamps. The right place is approx. 10cm above the borehole in the mast.
Top view:
ATTENTION!
Please make sure the junction box does not project into the rotating and slewing range of the
DEGER systems!
11.2 Holding device for inverter on the rotating head
ATTENTION!
Please make sure the inverter does not project from the holding device for inverter into the rotating
and slewing range of the DEGER systems!
Further information concerning the rotation and slewing range can be found in the module
configuration layout.
1. Fasten the bracket with four bolts 10x20
and washers to the rotating head, as shown.
Tightening torque: 48 Nm
2. Fasten the supporting angle at the top to the rotating head
using the bolt M8x20 and at the bottom to the plate using
hexagon bolt M8x30, nut M8 and washer.
Tightening torque: 25 Nm
The required tapped bores are already available in the rotating
head.
Max. size of
junction box
