Deger D25H - Clamping between Modules; Clamping at End of Module Surface

01.01.2022 ASSEMBLY AND OPERATING MANUAL DEGER D25H, D60H, D80 and D100 Page 26

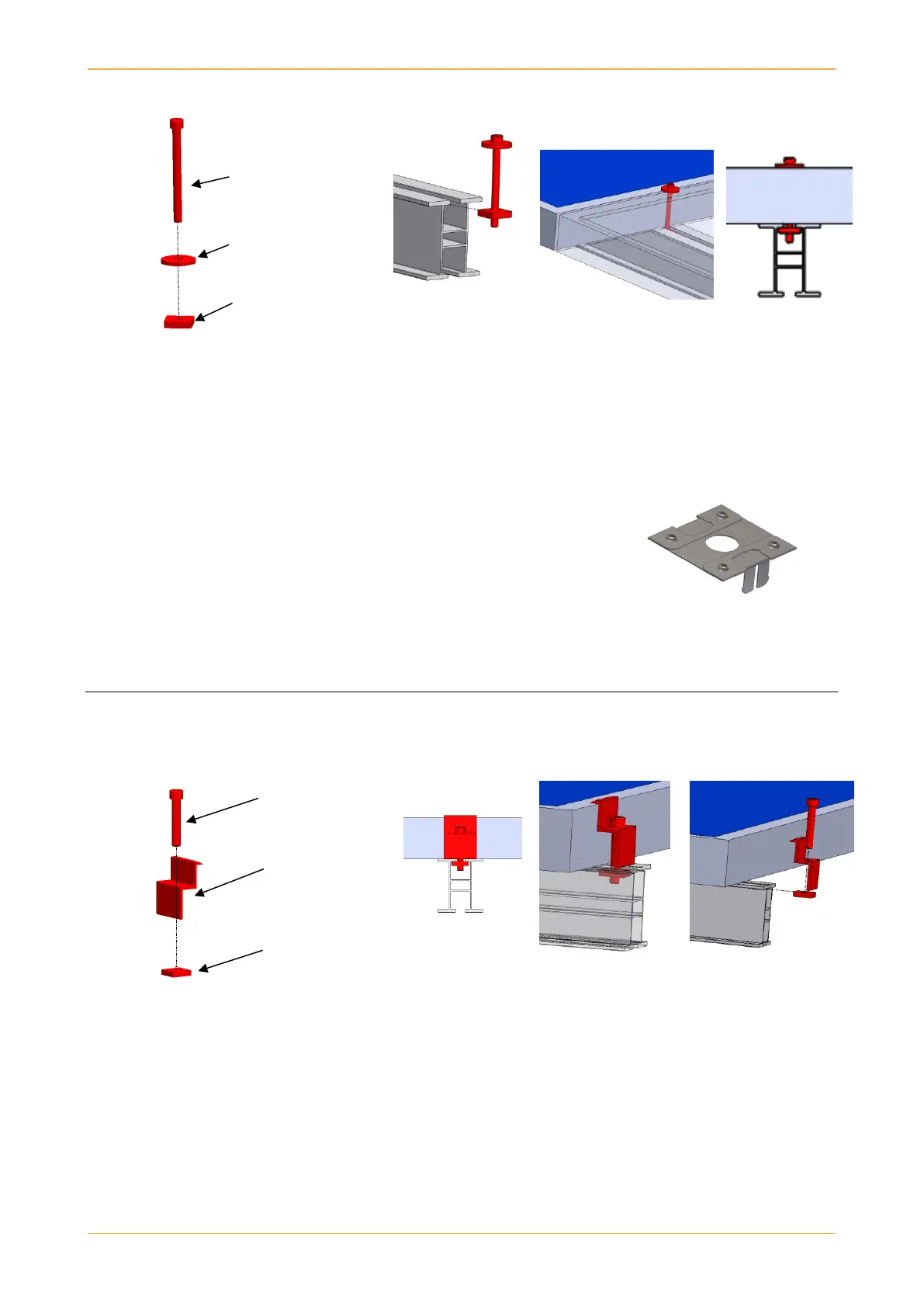

6.7.1 Clamping between modules
Assembly
1.preassembled fastening slide into the slot
2.positioning
3.place the module flush to the bolts
4.tighten the bolt M6
ATTENTION!
The permissible fastening and the area of fastening of the modules must be comply with the module
manufacturer specification.
Permitted maximum value for this bolt is 8Nm.
DEGER doesn’t assume any responsibility for this value.
Optional: WEEB-DPR for bonding and grounding
Please contact DEGER for further information
6.7.2 Clamping at end of module surface
ATTENTION!
The permissible fastening and the area of fastening of the modules must be comply with the module
manufacturer specification.
Permitted maximum value for this bolt is 20Nm.
DEGER doesn’t assume any responsibility for this value.
bolt M6
middle plate round
or.
Centre plate HD
sliding nut M6
bolt M8
end clamp
sliding nut M8
