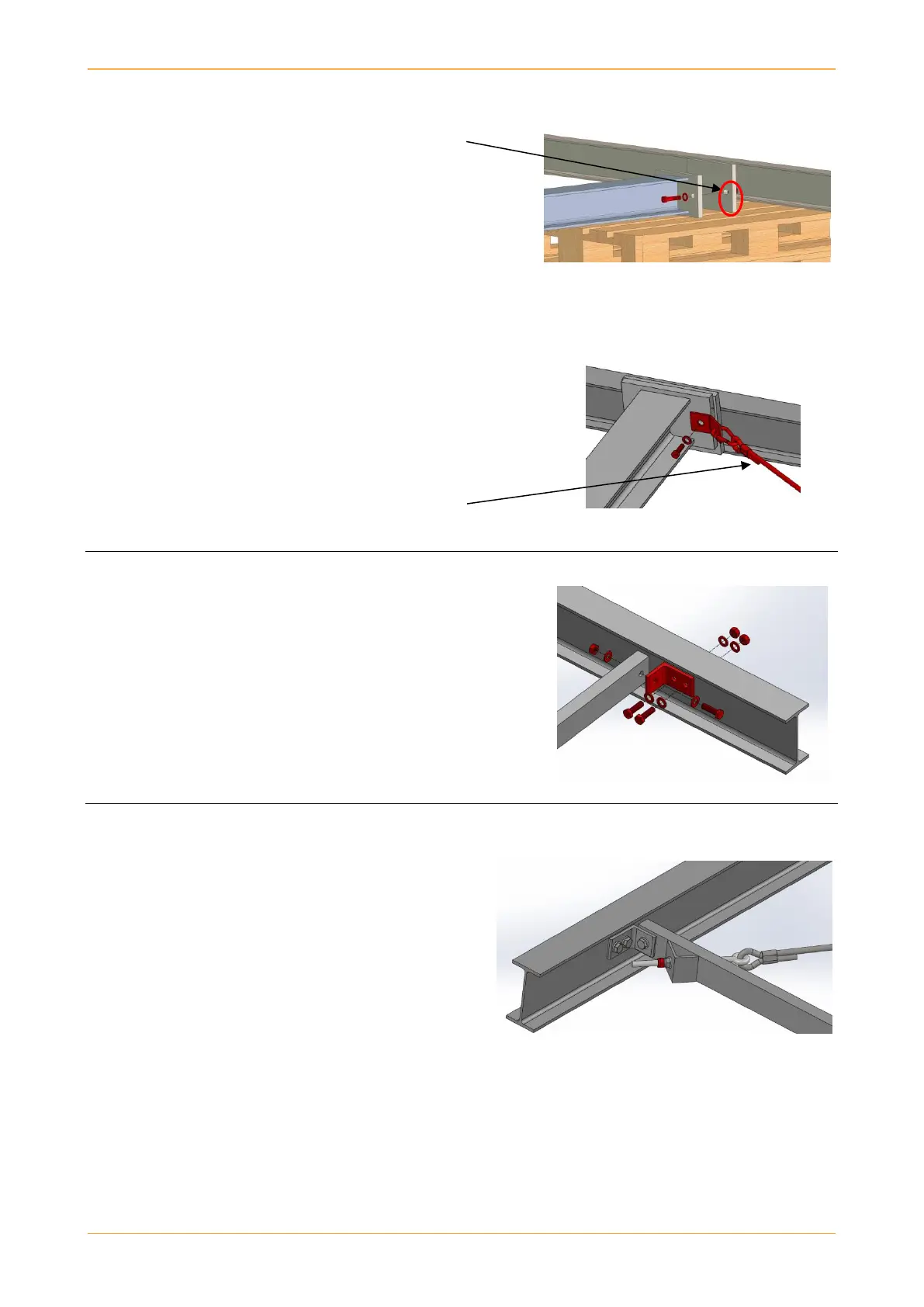

4. Mount the top and bottom longitudinal beams to the cross-
bars with two bolts M16x70, two washers and one self-
locking nut M16 each.
On the longitudinal beams, the projection of the flange plate
must point downwards!
Tightening torque: 300 Nm
On the DEGER systems D100, fasten the two tension rope
with the angle tie rod to the outer bolt connections.
Insert the opposite end through the slot in the U-section and
fix loosely with washer and two nuts M12.
6. Fasten the L-Profile to longitudinal beams with two bolt
M12x40, four washers and two self-locking nut M12 each.
Then, tie U-sections to L-Profile with one bolt M12x40, two
washers and one self-locking nut M12 each.
Tightening torque: 84 Nm
7. On the D100, keep turning the nut M12 on to the thread
of the tie rod, until the tie rod, is slightly tensioned.
Do not tighten too much, since this may distort the frame!
The red marked nut is a lock nut.
Tension rope
only with DEGER system D100
