5. Operation

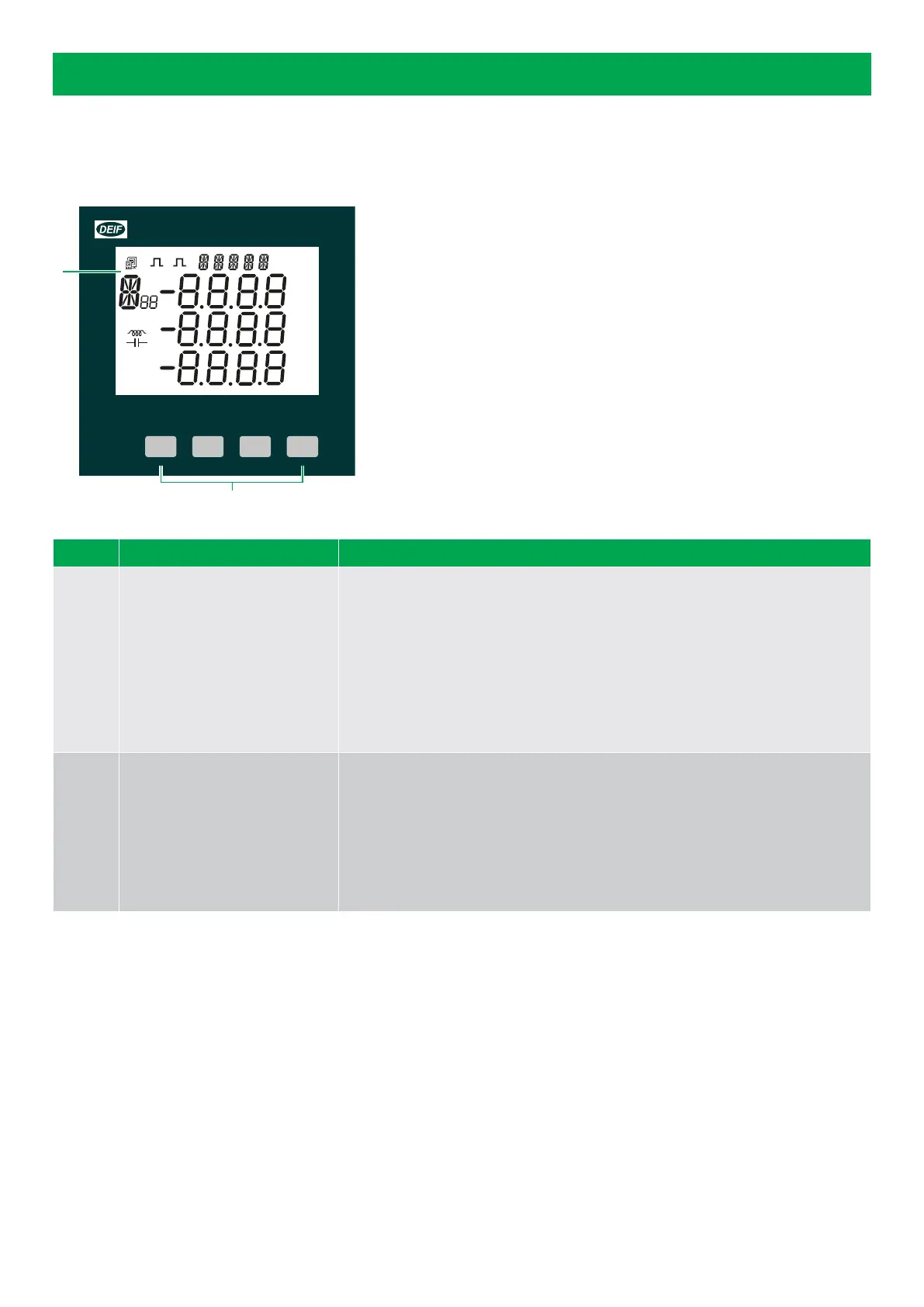

5.1 MIB display and buttons
The MIB has a white backlight display used for all measured values and for configuration during the setup process.
Load
Demand
Unbl
Imp.
Exp.
Run Hrs.
kV
kW
MW
kA
kvar
Mvar
Hz
kVA
MVA
kwh
kvarh
%
1-2
3-1
2-3
P1 P2
+++++
1
2
MIB 8000
H P E V/A
No. Name Function
1 Display
Shows measured values and used for configuration modes.
Display can operate in 3 modes:
1. Display mode
• Shows measured values.
2. System mode
• Configure the MIB settings.
3. Statistic mode
• Shows recorded log values.
2 Push-buttons
Press buttons in display mode to change display:
H = Power quality
P = Power
E = Energy
V/A = Volt/Ampere
Press combination of buttons to access other modes:
Press H and V/A to enter System mode.
Press H and E to enter Statistic mode.
System mode
Press H and V/A to enter System mode.
You can now view or configure settings:
• Press H to move the cursor one digit at a time.
• Press P to increase digit.
• Press E to decrease digit.
• Press V/A to accept setting and display next screen.
Statistic mode
Statistic mode shows the recorded log values.
DESIGNER'S HANDBOOK 4189320063D EN Page 14 of 23
