Deif MIB 8000 - LCD Display Details

5.2 LCD display
Load
Demand
Unbl
Imp.
Exp.
Run Hrs.
kV
kW
MW
kA
kvar
Mvar
Hz
kVA
MVA
kwh
kvarh
%
1-2
3-1
2-3
P1 P2
+++++
1
7
10
8
9
2
3
4
5
6

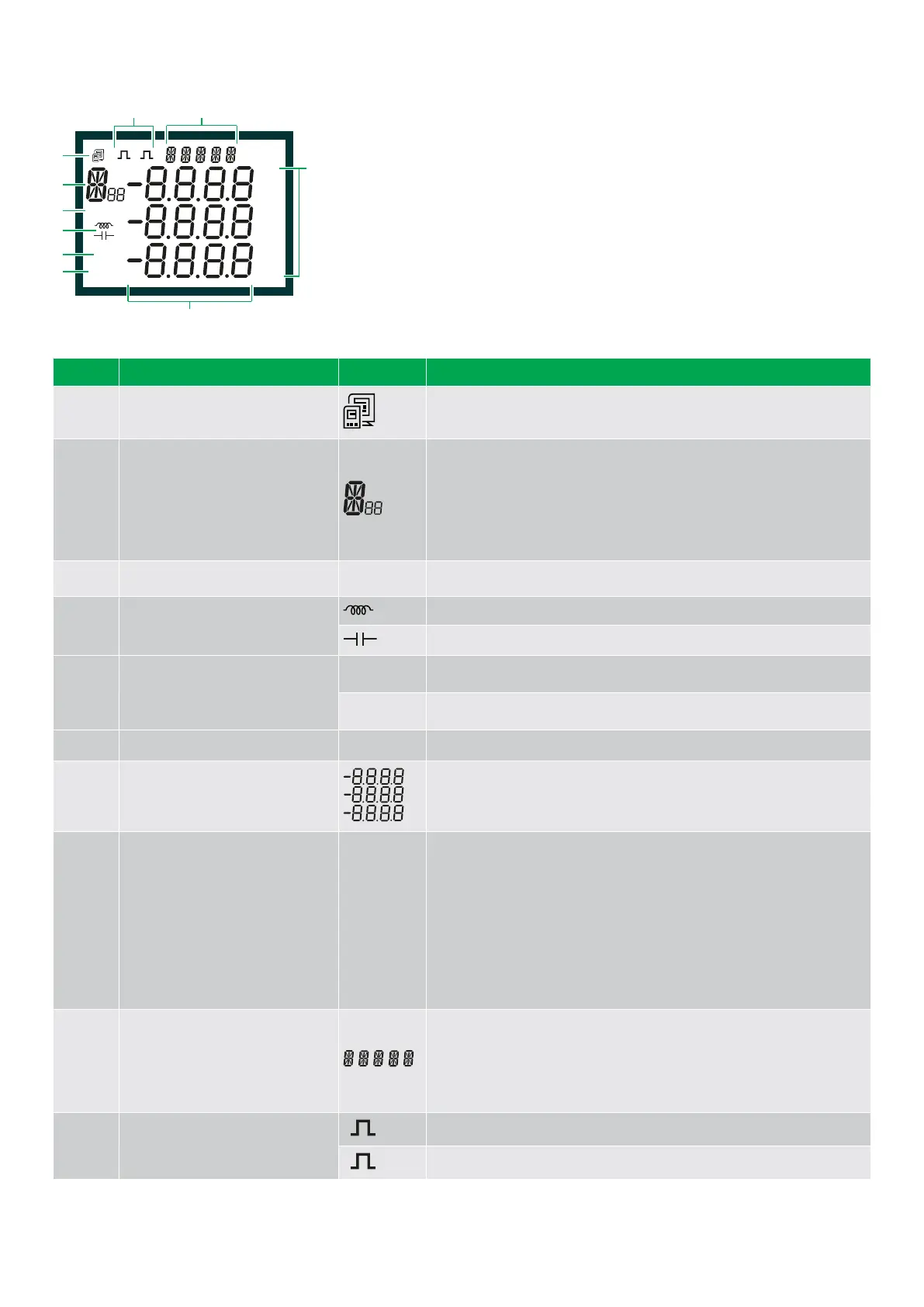

No. Name Symbol Function
1 Communication Shows communication is active. (Only for MIB 8000C)
2 Item label
Load
U: Voltage
I: Current
P: Active power
q: Reactive power
PF: Power factor
For harmonic rate, the little 8 segment displays harmonic value.
3
3-phase unbalance
Unbl
Shows unbalance label.
4 Load nature
Capacitive load.
Inductive load.
5 Energy label
Imp.
Consumption energy.
Exp.
Generating energy.
6 Time label
Run Hrs.
Shows the running time in hours.
7 Values
1-2
3-1
2-3
Shows 3 lines of metering data.
8 Unit -
Voltage: K, kV
Current: kA, A
Power: kW, MW
Reactive power: kvar, Mvar
Apparent power: kVA, MVA
Frequency: Hz
Energy: kWh
Reactive power: kvarh
Percentage: %
9 Status display
+++++
Meter: Metering status
Max: Maximum value
Min: Minimum value
THD: Display THD
Har: Harmonic data
10 Energy pulse output
P1
Shows pulse P1 output.
P2
Shows pulse P2 output.
