PPM Installation Instructions
DEIF A/S Page 55 of 69

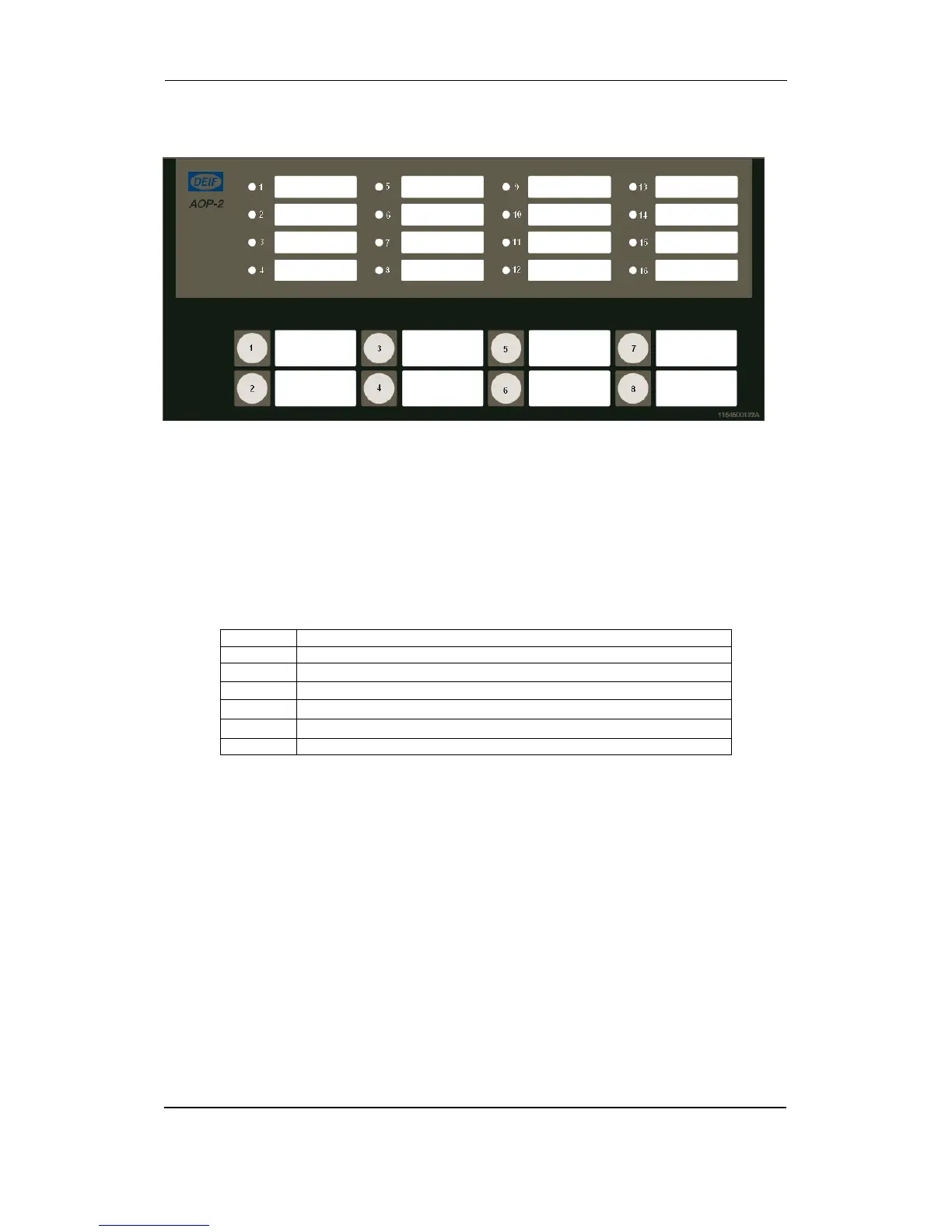

CAN ID configuration on AOP-2
The CAN ID for the AOP-2 can be changed by the following procedure:
1. Push button no. 7 and no. 8 at the same time to activate the CAN ID change menu, this
will activate the LED for the present CAN ID number, and LED no. 16 will be flashing.
2. Use button no. 7 (increase) and button no. 8 (decrease) to change the CAN ID accord-
ing to the table below.
3. Press button no. 6 to save the CAN ID and return to normal operation.
Selection of CAN ID:
CAN ID Indication of CAN ID selection
0 CANbus OFF: LED 16 flashes
1 LED 1 light steady + LED 16 flashes (default value)
2 LED 2 light steady + LED 16 flashes
3 LED 3 light steady + LED 16 flashes
4 LED 4 light steady + LED 16 flashes
5 LED 5 light steady + LED 16 flashes
Status relay
The status relay will activate approximately five seconds after power-up.
