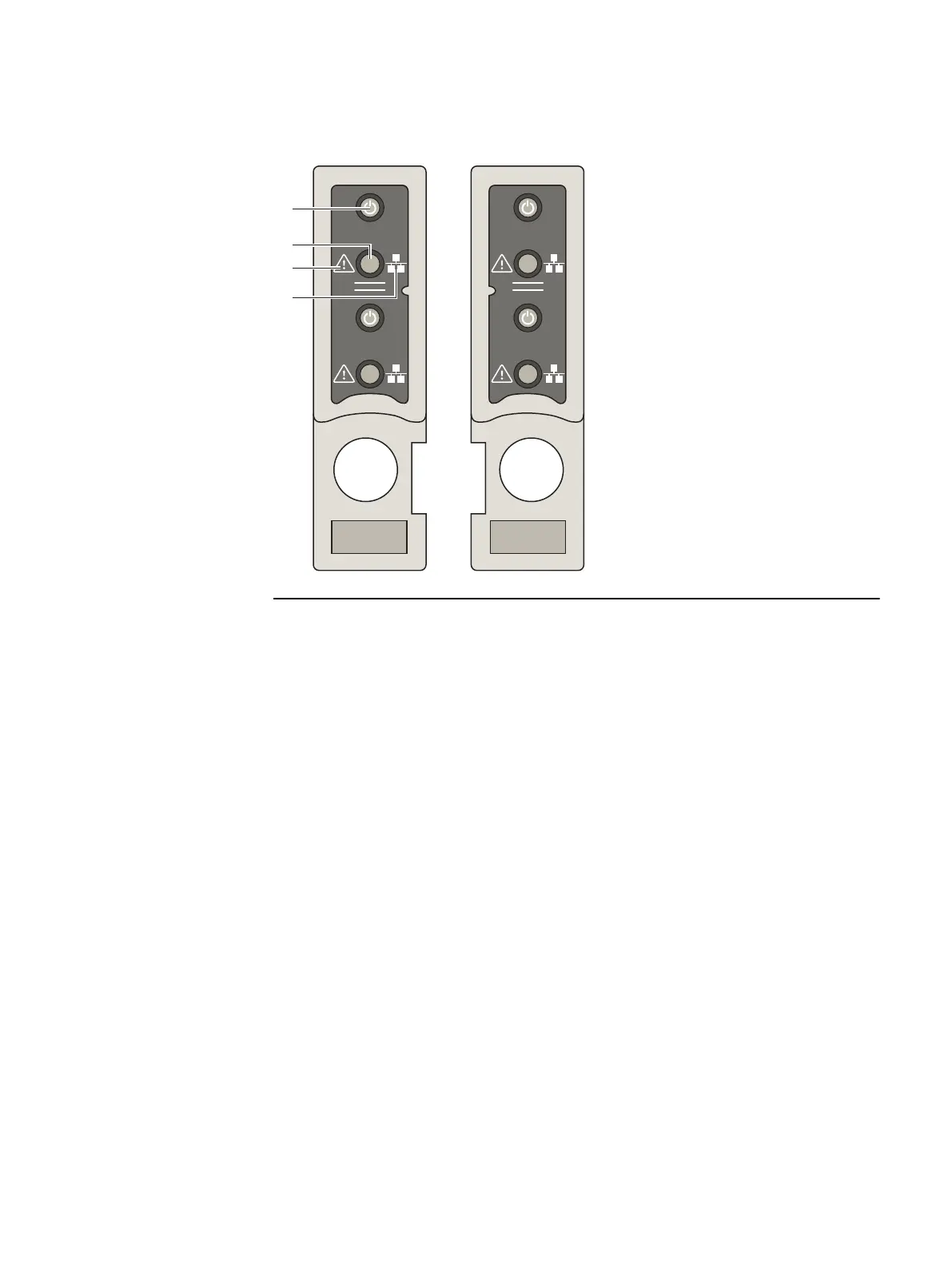

Table 16 Server LEDs
CL5558
NODE 3
ID
NODE 1
ID
NODE 4
ID
NODE 2
ID
1
2
4
3
1. System Power Button with LED
for each node.
2. System ID LED Button for each
node.
3. System Status LED for each
node.
4. LAN Link/Activity LED for each
node.
Server rear view
The Rinjin-16, Phoenix-16, Rinjin-12, and the Phoenix-12 server chassis provide dual
hot-swappable power supplies and four nodes.
The chassis shares a common redundant power supply (CRPS) that enables HA power
in each chassis that is shared across all nodes. The nodes are mounted on hot-
swappable trays that fit into the four corresponding node slots accessible from the
rear of the server.
Servers
28 D- and U-Series Hardware Guide
