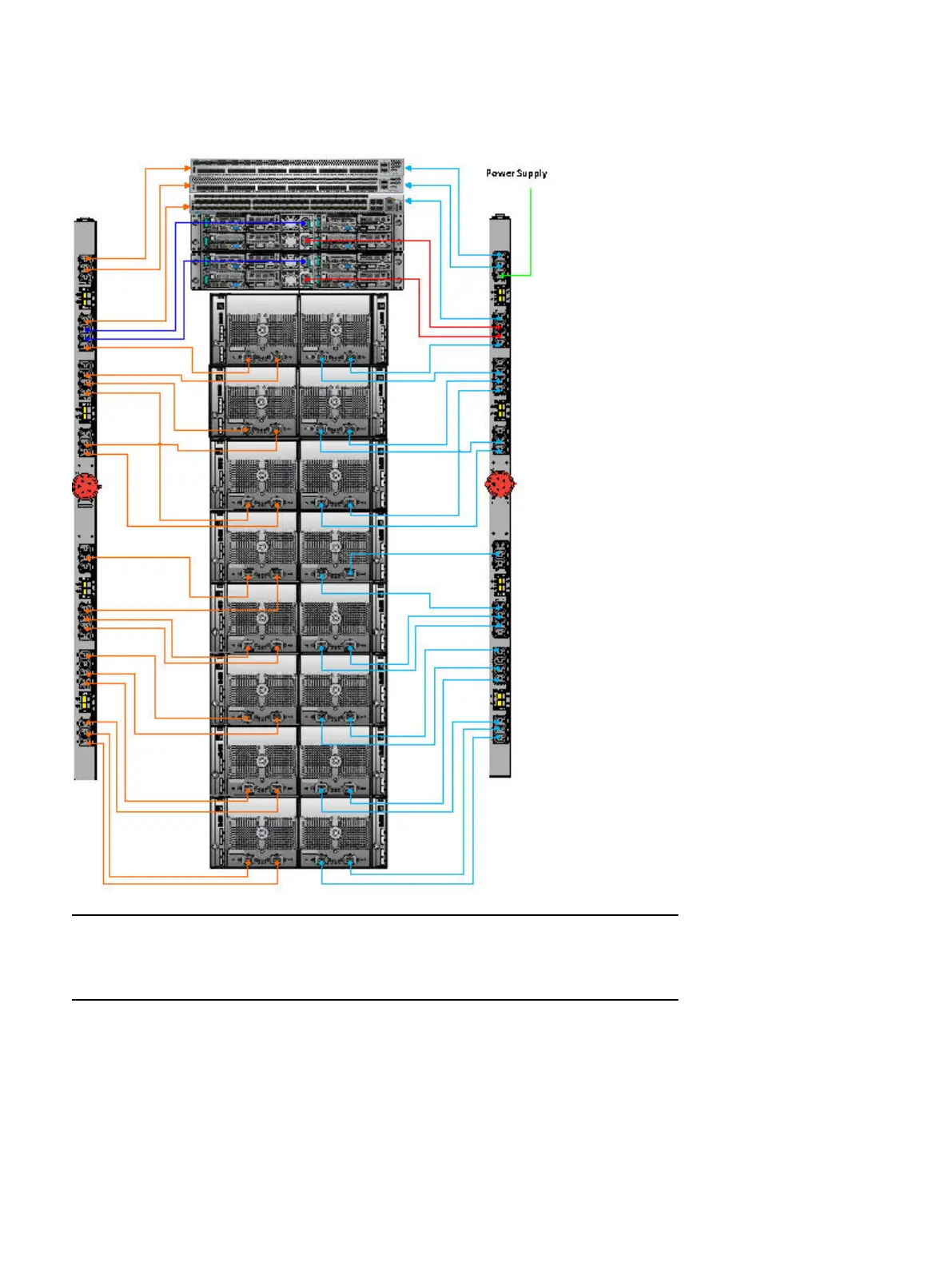

Figure 44 Three-phase WYE AC power cabling for eight-node configuration
Note
For a four-node configuration, counting from the bottom of the rack, ignore DAEs 5–8
and server chassis 2.
D-Series single-phase AC power cabling
Provides the single-phase power cabling diagram for the D-Series ECS Appliance.
The switches plug into the front of the rack and route through the rails to the rear.
Power Cabling
D-Series single-phase AC power cabling 77
