Integrated disk drives
Describes disk drives that are integrated into the server chassis of the ECS Appliance.
D-Series
In D-Series servers, OS disks are integrated into the server chassis and are accessible
from the front of the server chassis. Each node has one OS SSD drive.
U-Series
In U-Series servers, OS disks are integrated into the server chassis and are accessible
from the front of the server chassis. Each node has one OS SSD drive.
Early Gen1 appliances had two mirrored disks per node.
C-Series
In C-Series servers with integrated storage disks, the disks are accessible from the
front of the server chassis. The disks are assigned equally to the four nodes in the
chassis. All disks must be the same size and speed. Gen1 uses 6 TB disks and Gen2
uses 8 TB and 12 TB disks.
In Gen1 only, the first integrated disk that is assigned to each node is called disk drive
zero (HDD0). These storage drives contain some system data.

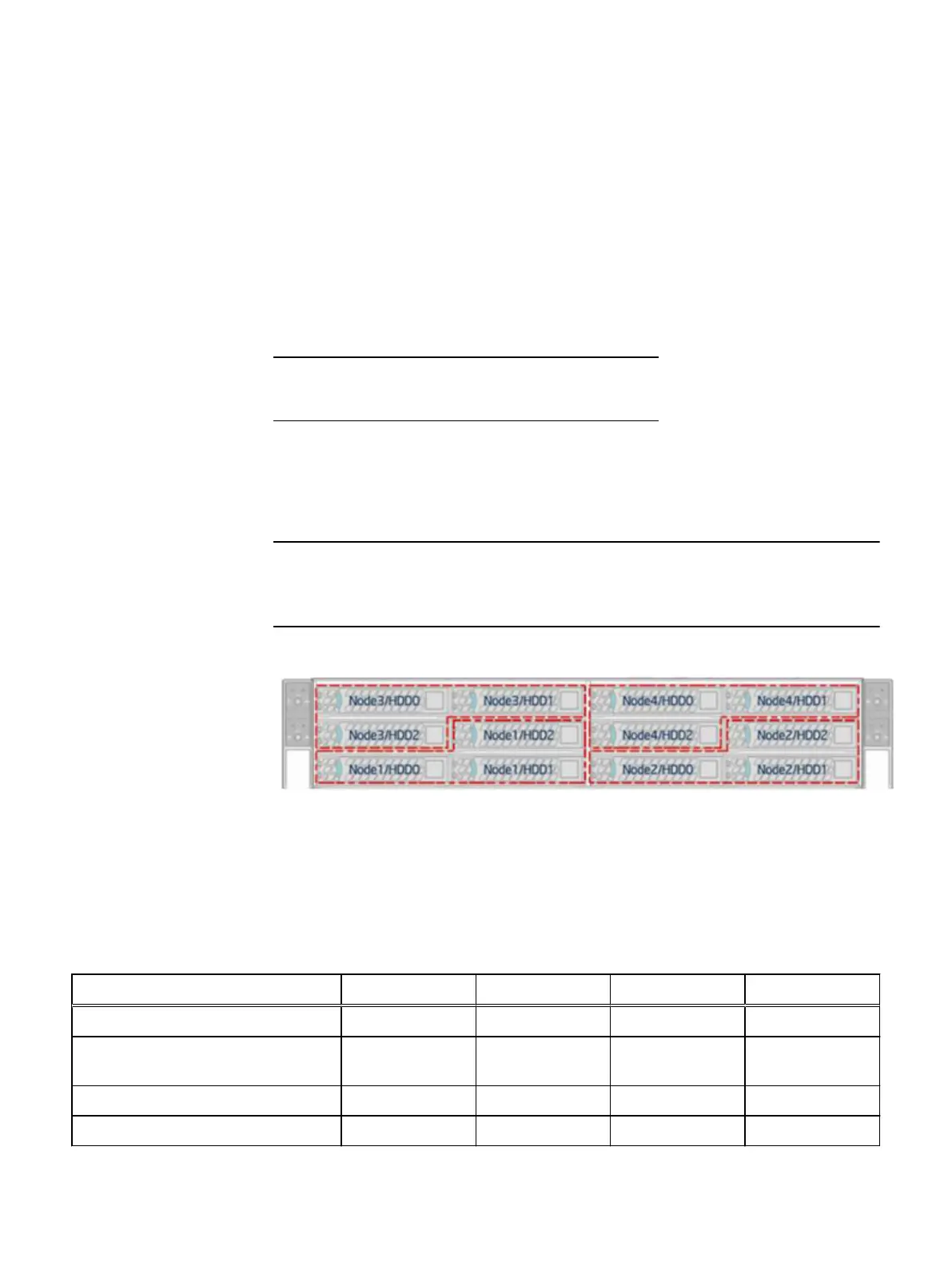

Figure 16 C-Series (Gen1) Integrated disks with node mappings
Storage disk drives
Describes the disk drives used in ECS Appliances.
Table 31
Storage disk drives
Series and Generation Service Size RPM Type
D-Series D5600 and D7800 Object 10 TB 7200 SAS
D-Series D4500 and D6200, U-Series
Gen2, C-Series Gen2
Object 8 TB 7200 SAS
U-Series Gen1, C-Series Gen1 Object 6 TB 7200 SATA
U-Series Gen2 Object 12 TB 7200 SAS
All disks integrated into a server chassis or in a DAE must conform to these rules:
Disk Drives
46 D- and U-Series Hardware Guide
