Private switch: Cisco 3048 48-P
The private switch is used for management traffic. It has 52 ports and dual power
supply inputs. The switch is configured in the factory.

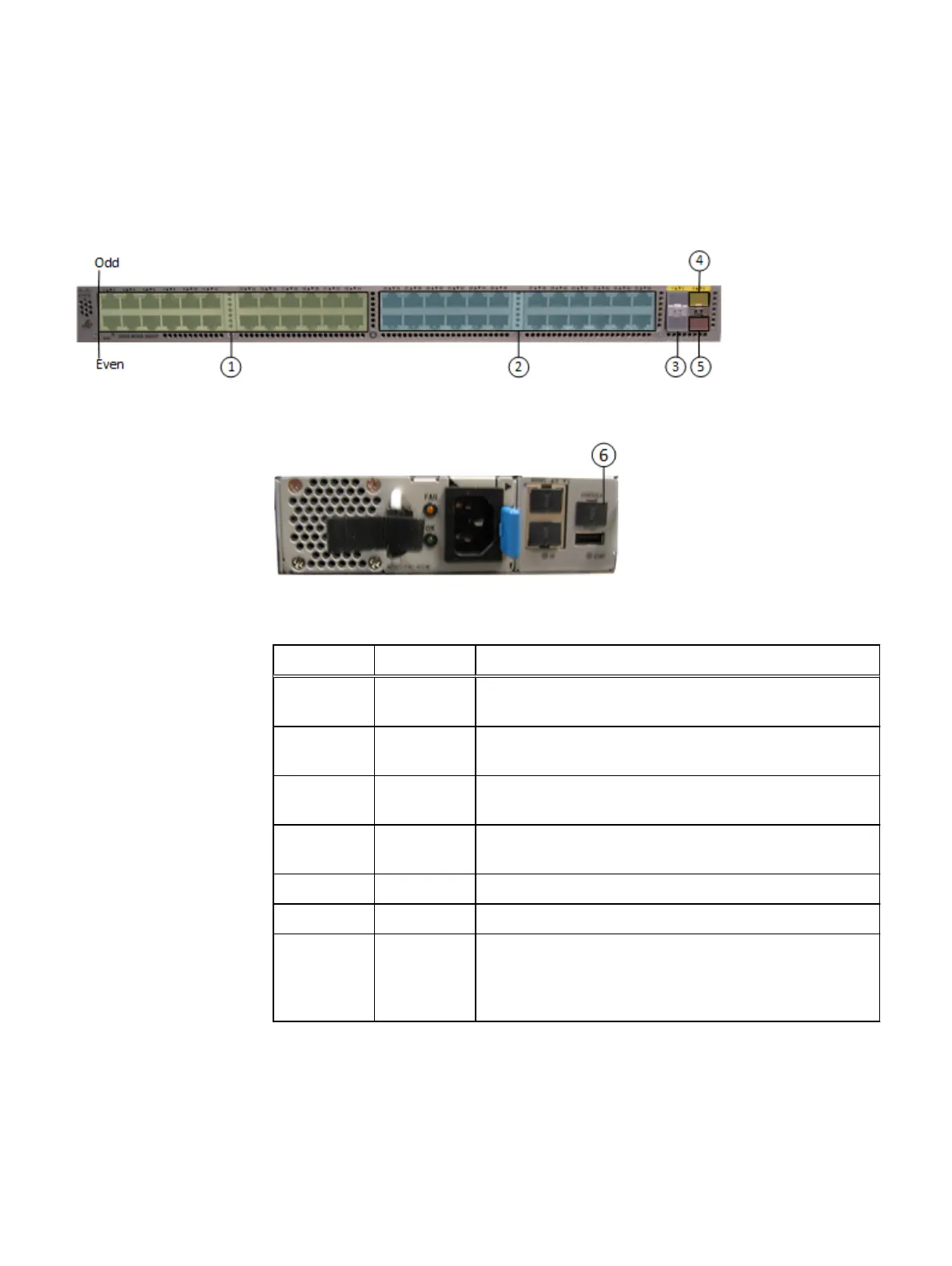

Figure 8 Cisco 3048 ports (rear)
Figure 9 Cisco 3048 ports (front)
Table 20 Cisco 3048 switch configuration detail
Figure label Ports Connection description
1 1–24 Connected to the MGMT (eth0) network ports on the nodes
(blue cables).
2 25–48 Connected to the RMM network ports on the nodes (gray
cables).
3 49 The 1 GbE management port. This port is connected to rabbit
(bottom) 10GB switch management port. See Note 2.
3 50 The 1 GbE management port. This port is connected to hare
(top) 10GB switch management port. See Note 2.
4 51 Rack/Segment Interconnect IN. See Note 1 and 2.
5 52 52 Rack/Segment Interconnect OUT. See Note 1 and 2.
6 Serial console The console port is used to manage the switch through a
serial connection. The Ethernet management port is
connected to the 1 GbE management switch. This port is on
the front of the switch.
Switches
Private switch: Cisco 3048 48-P 35
