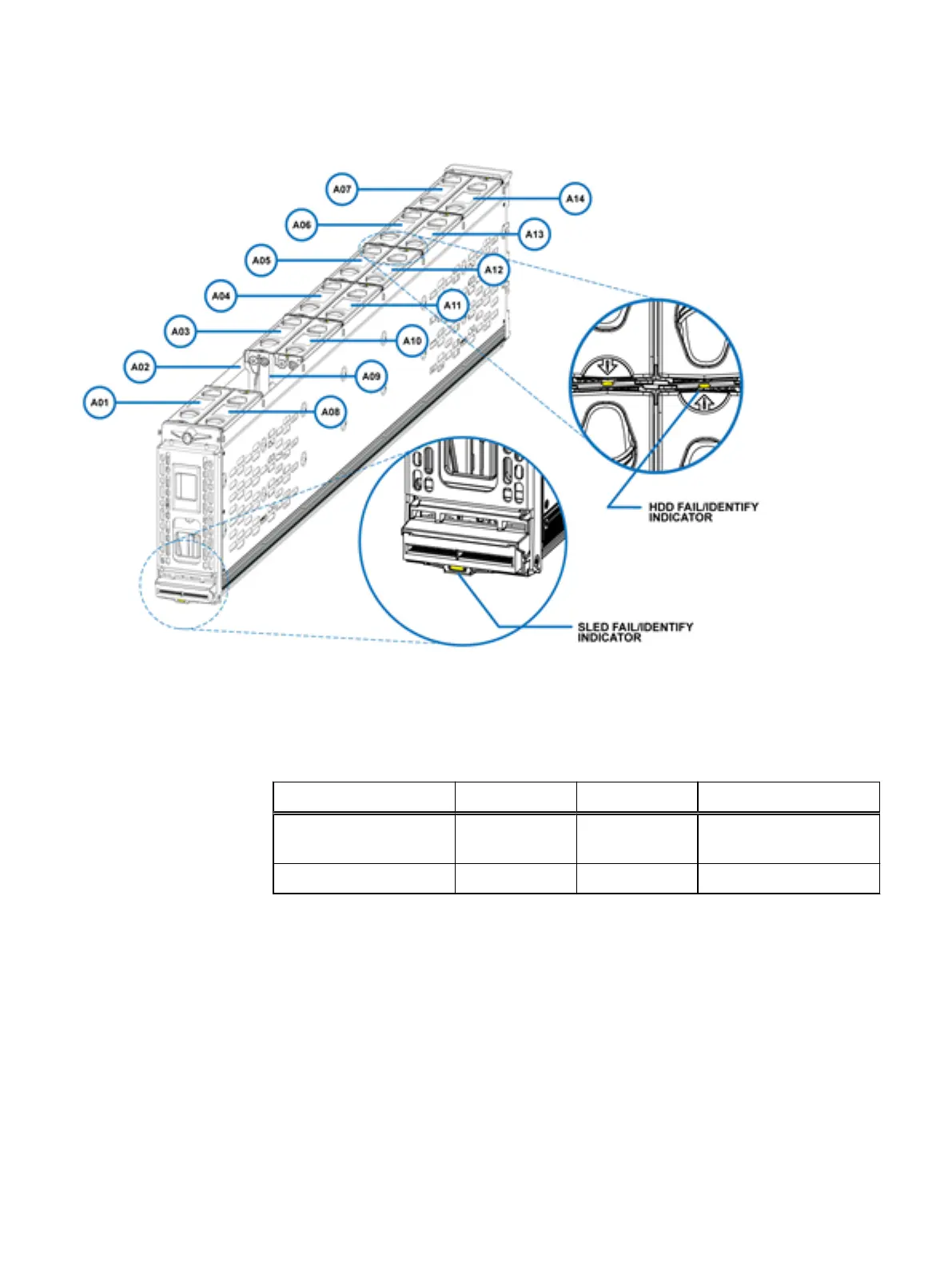

Figure 21 Drive designations and sled LEDs
Each sled and drive slot has an LED to indicate failure or to indicate that the LED was
enabled by an identify command.
Table 33
Sled and drive LEDs
LED Color State Description
Sled Identify/Fail Amber Slow Flashing Link received an identify
command
HDD Identify/Fail Amber Fast Flashing SAS link failure
Each drive is enclosed in a tool-less carrier before it is inserted into the sled.
Disk Drives
Pikes Peak (dense storage) 51
