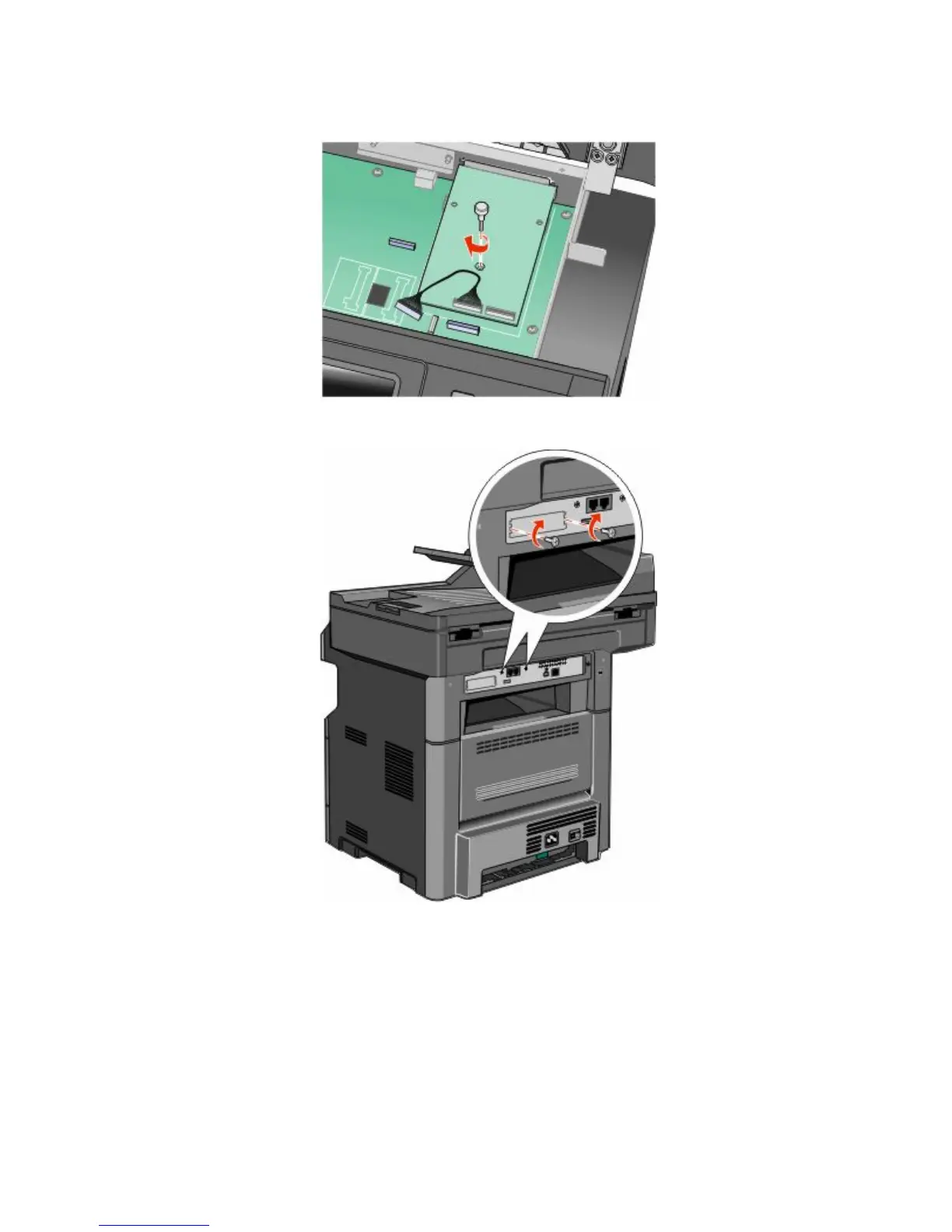

8 Insert the long thumbscrew, into the hole closest to the white connector, and turn it clockwise enough to hold
the ISP in place. Do not tighten the thumbscrew at this time.
9 Attach the two provided screws to secure the ISP mounting bracket to the system board cage.
10 Tighten the long thumbscrew.
Note: Do not overtighten the thumbscrew.
11 Insert the plug of the ISP interface cable into the receptacle of the system board.
Note: The plugs and receptacles are color coded.
Additional printer setup
41
