Dell 4320 - Connecting Your Projector

10 Connecting Your Projector
2

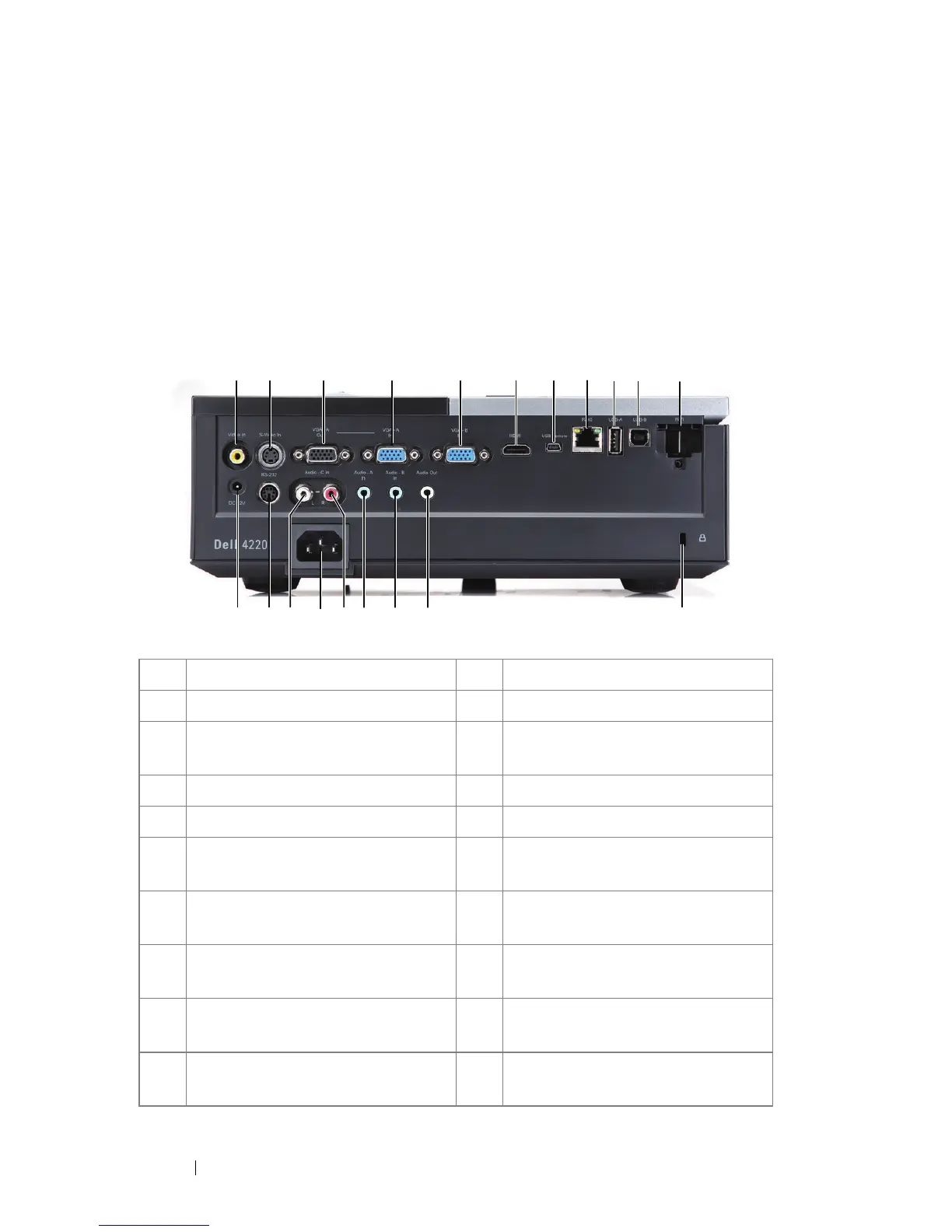

Connecting Your Projector
1 Composite Video connector 11 WiFi USB (Type A) connector
2 S-Video connector 12 Security cable slot
3 VGA-A output (monitor loop-
through)
13 Audio output connector
4 VGA-A input (D-sub) connector 14 Audio-B input connector
5 VGA-B input (D-sub) connector 15 Audio-A input connector
6 HDMI connector 16 Audio-C right channel input
connector
7 Mini USB (Mini Type B)
connector for remote control
17 Power cord connector
8 RJ45 connector 18 Audio-C left-channel input
connector
9 USB Type A connector for USB
Viewer
19 RS232 connector
10 USB Type B connector for USB
Display
20 +12 V DC out connector
3 4 5 6 7
8
14 12
1
2
13
910
1920 15161718
11
