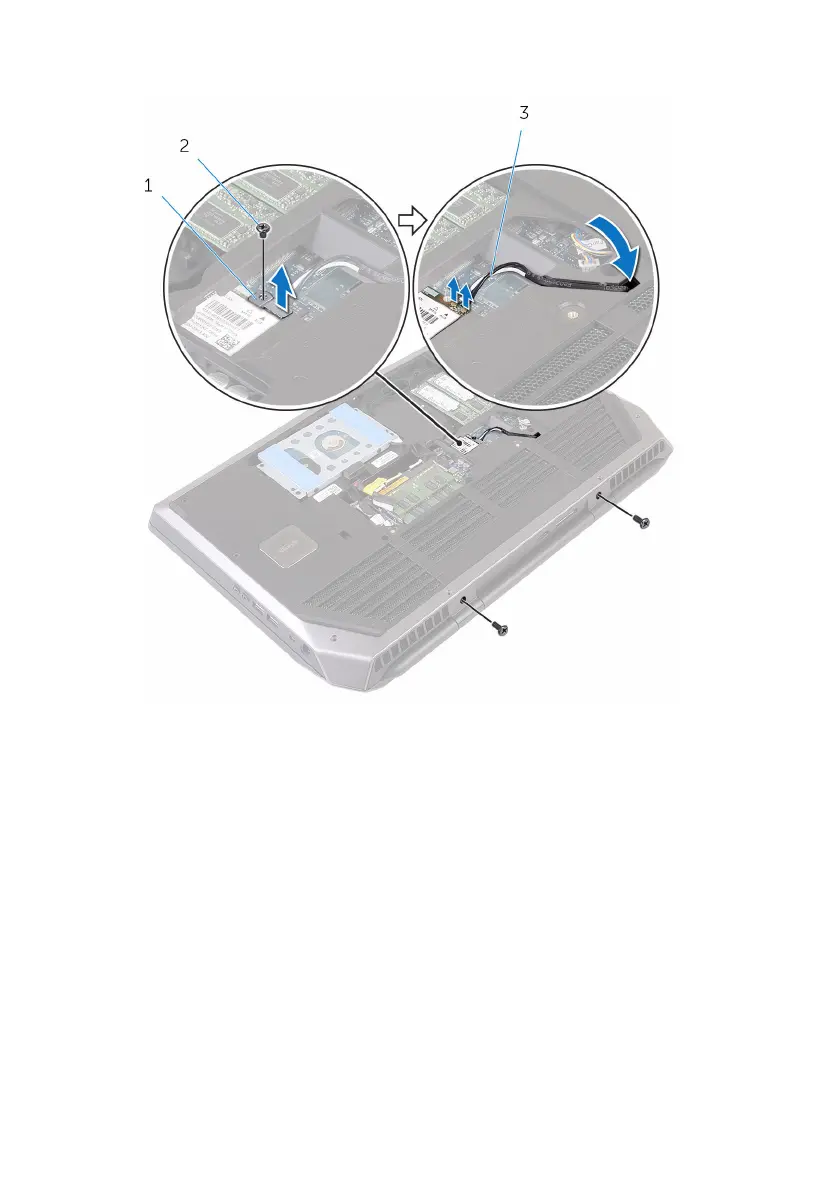

5 Disconnect the antenna cables from the wireless card.
1 wireless-card bracket 2 screws (3)
3 antenna cables
6 Turn the computer over and open the display.
7 Peel off the adhesive tape that secures the antenna cables to the system
board.
8 Carefully remove the antenna cables up from the computer base and
remove it from the routing guides on the display hinges.
9 Lift the latch and disconnect the display cable from the system board.
10 Remove the display cable from the routing guide on the display hinge.
53
