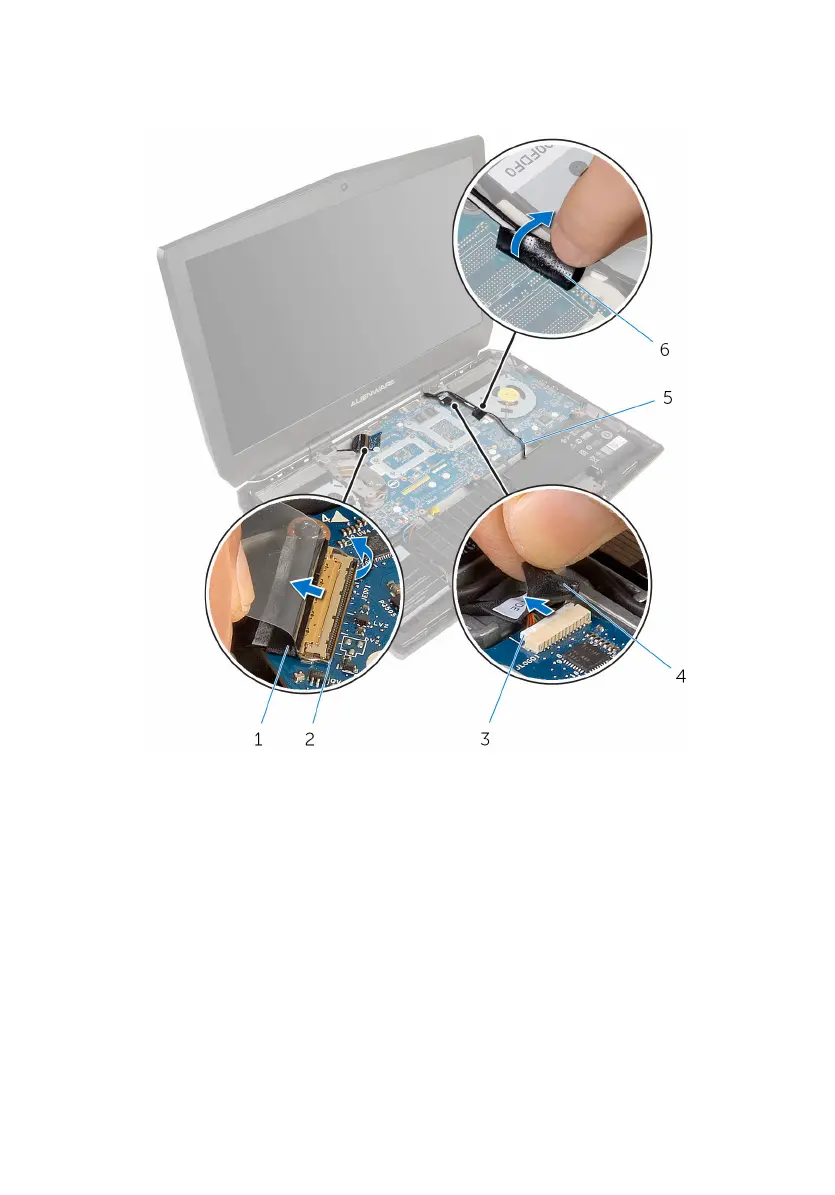

11 Disconnect the logo-board cable from the system board and remove it
from the routing guide on the display hinge.
1 display cable 2 latch
3 connector 4 logo-board cable
5 antenna cables 6 tape
12 Remove the screws that secure the display assembly to the computer
base.
