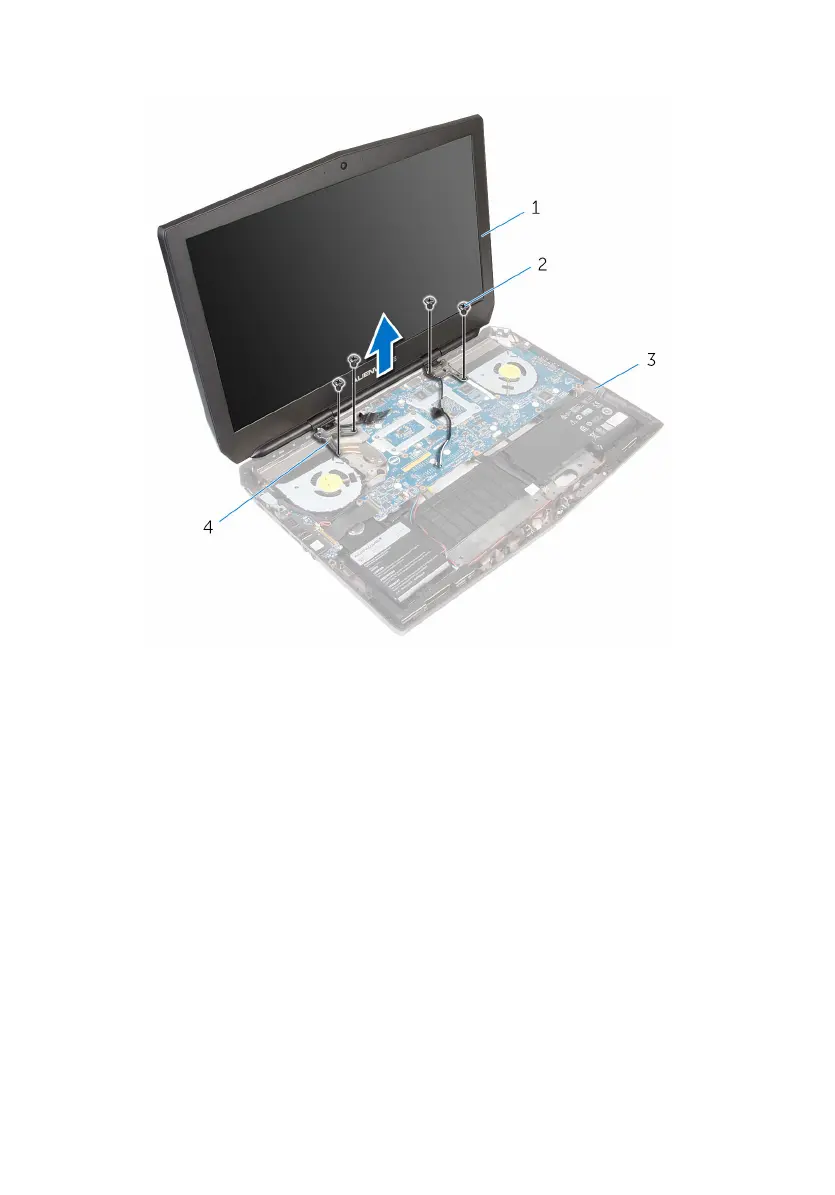

13 Lift the display assembly off the computer base.

1 display assembly 2 screws (4)

3 computer base 4 display hinges (2)
