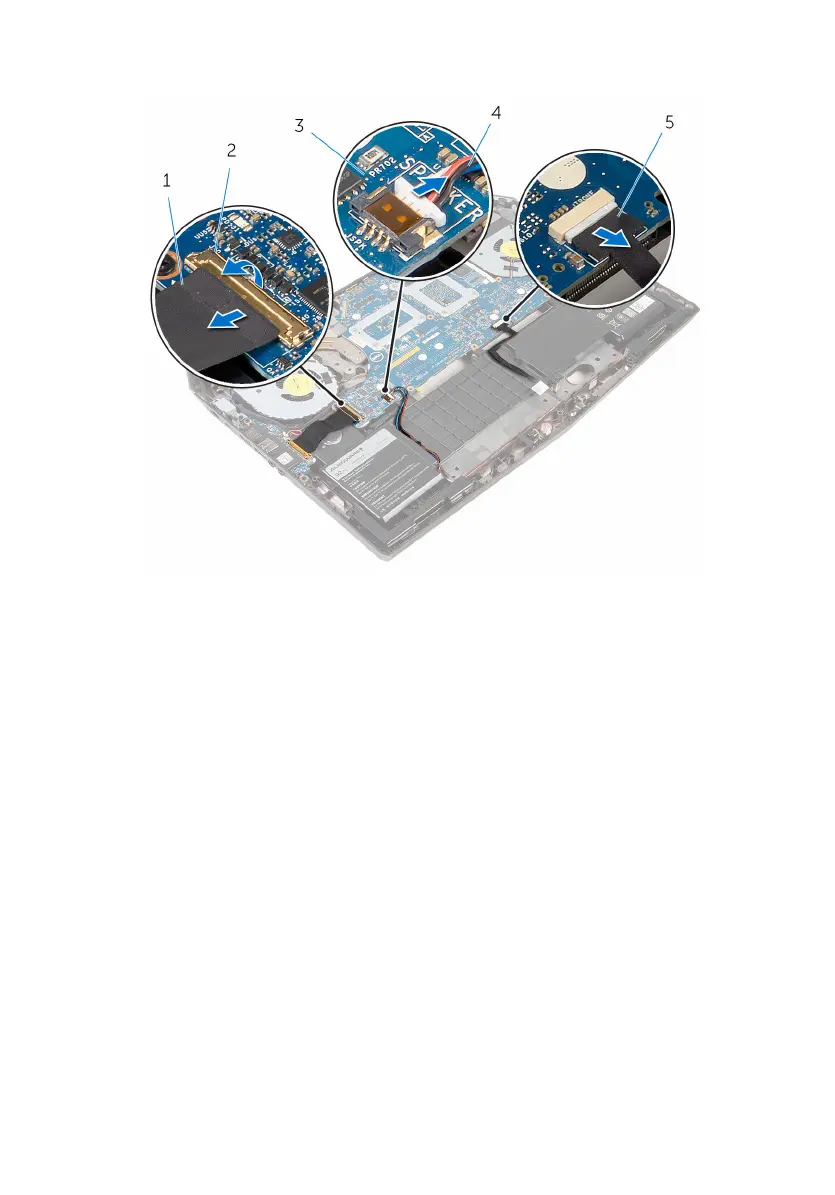

5 Lift the latch and disconnect the I/O-board cable from the system board.

1 I/O-board cable 2 latch

3 system board 4 speaker cable

5 front AlienFX LED cable

6 Remove the screws that secure the system board to the computer base.
