Dell Alienware 17 R3

To Next Page

To Previous Page

7 Lift the system board off the computer base.

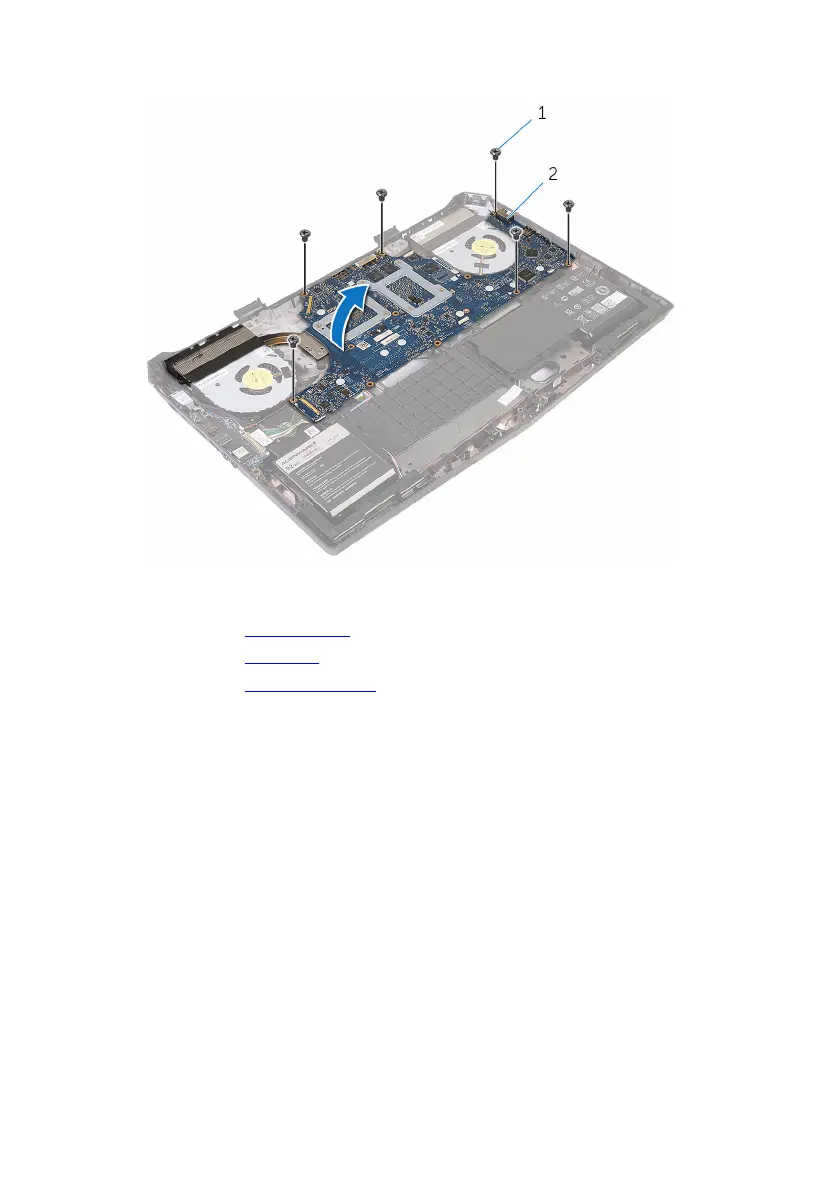

1 screws (6) 2 system board

8 Remove the wireless card.

9 Remove the heat sink.

10 Remove the coin-cell battery.

Main Page
