Dell Alienware M17X R2 - Removing the Display Assembly

055
055
/
CHAPTER 13: DISPLAY
Remove the four screws (two from each hinge) that secure the display 9.
assembly to the computer base.
2
1

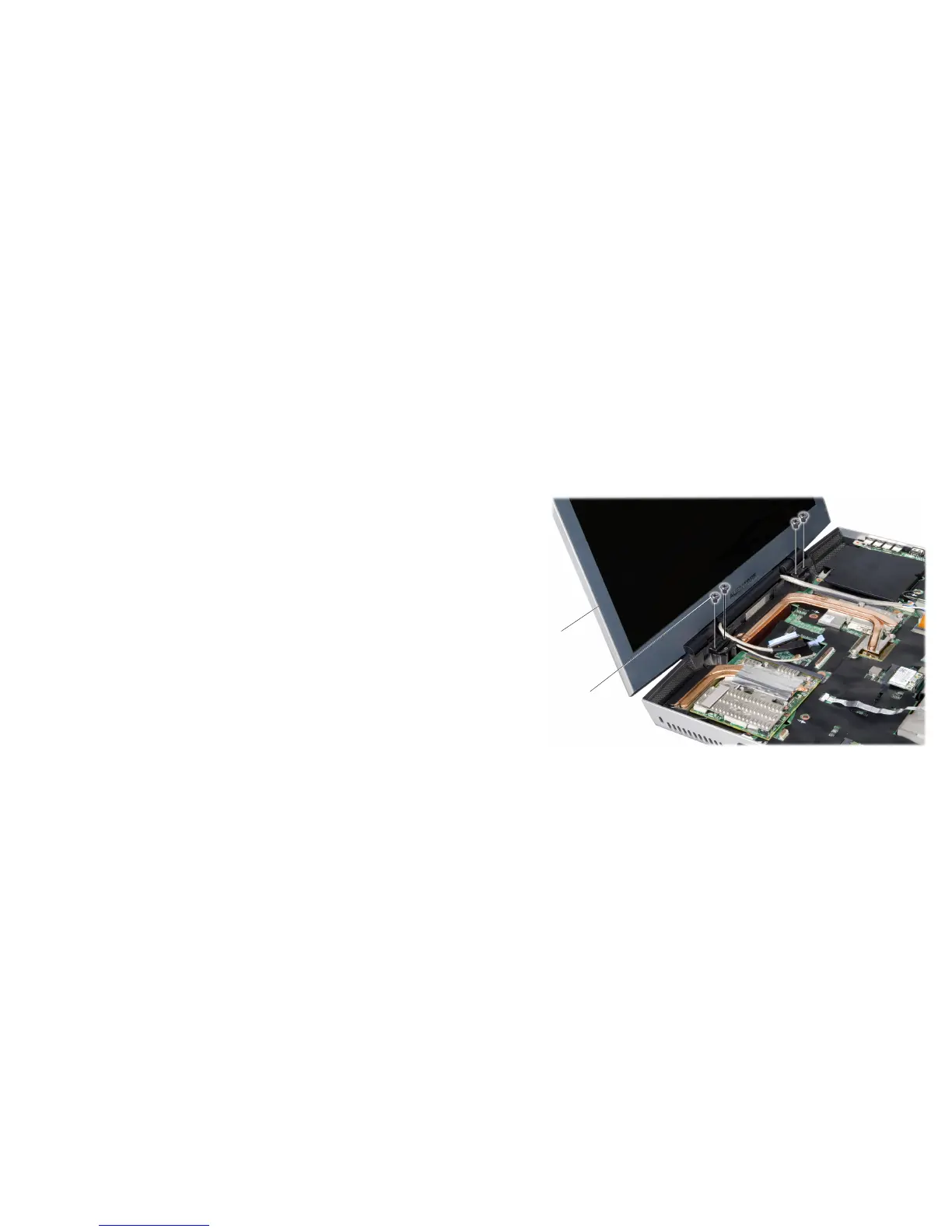

1 display assembly 2 screws (4)
Display Assembly
Removing the Display Assembly
Follow the instructions in “Before You Begin” on page 1. 6.
Remove the battery pack (see “Removing the Battery Pack” on page 2. 11).
Remove the compartment door (see “Removing the Compartment Door” on 3.
page 14).
Remove the center control cover (see “Removing the Center Control Cover” 4.
on page 33).
Remove the keyboard (see “Removing the Keyboard” on page 5. 38).
Remove the palm rest (see “Removing the Palm Rest” on page 6. 42).
Remove the left and right brackets (see “Removing the Brackets” on 7.
page 47).
Remove the magnesium cover (see “Removing the Magnesium Cover” 8.
on page 50).
