CHAPTER 19: GRAPHICS CARD(S)
To remove the primary graphics card:7.
Remove the left bracket (see “Removing the Brackets” on page a. 47).
Remove the two screws that secure the primary graphics card to the b.
system board.
Lift the primary graphics card at an angle and remove it from the c.
system board connector.

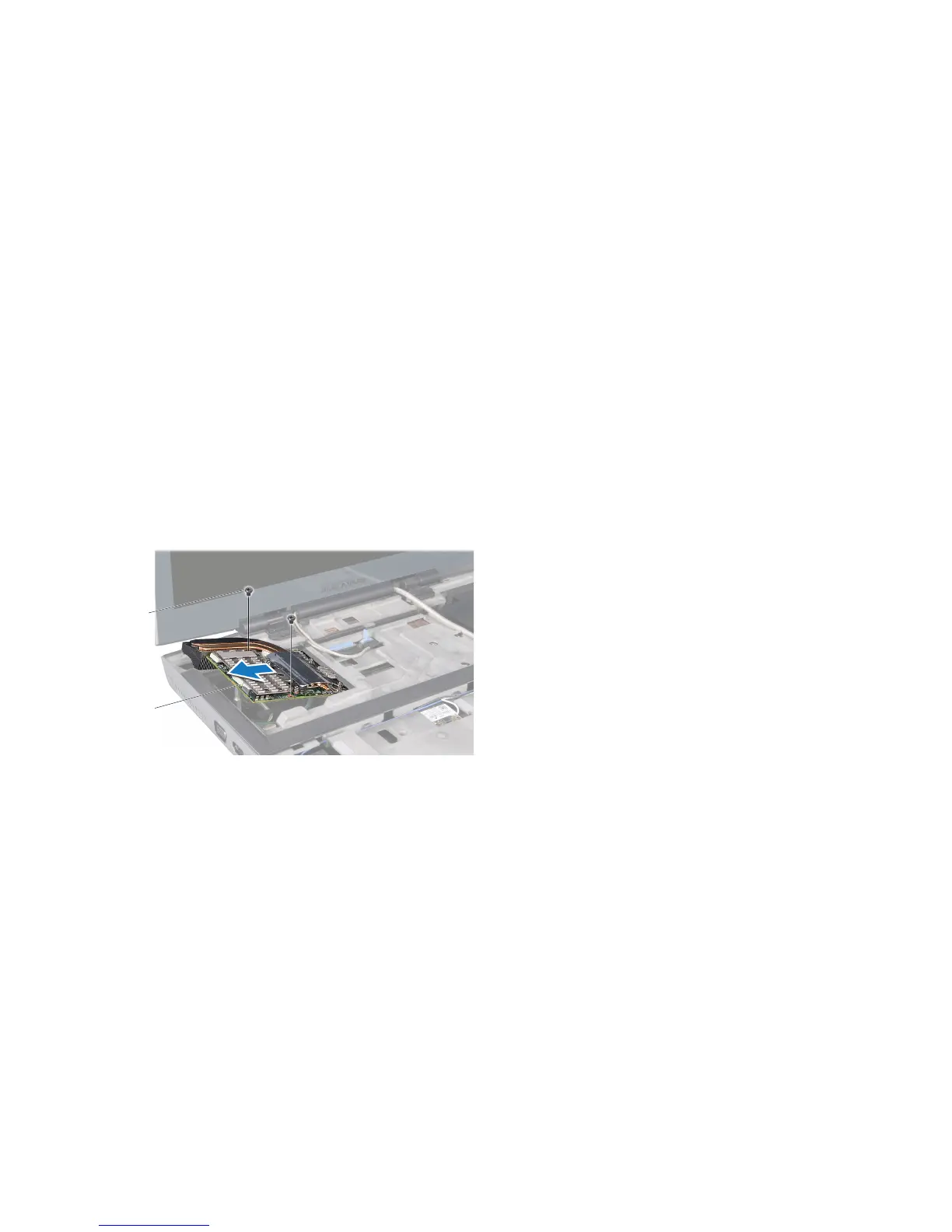

2
1
1 screws (2) 2 primary graphics card
