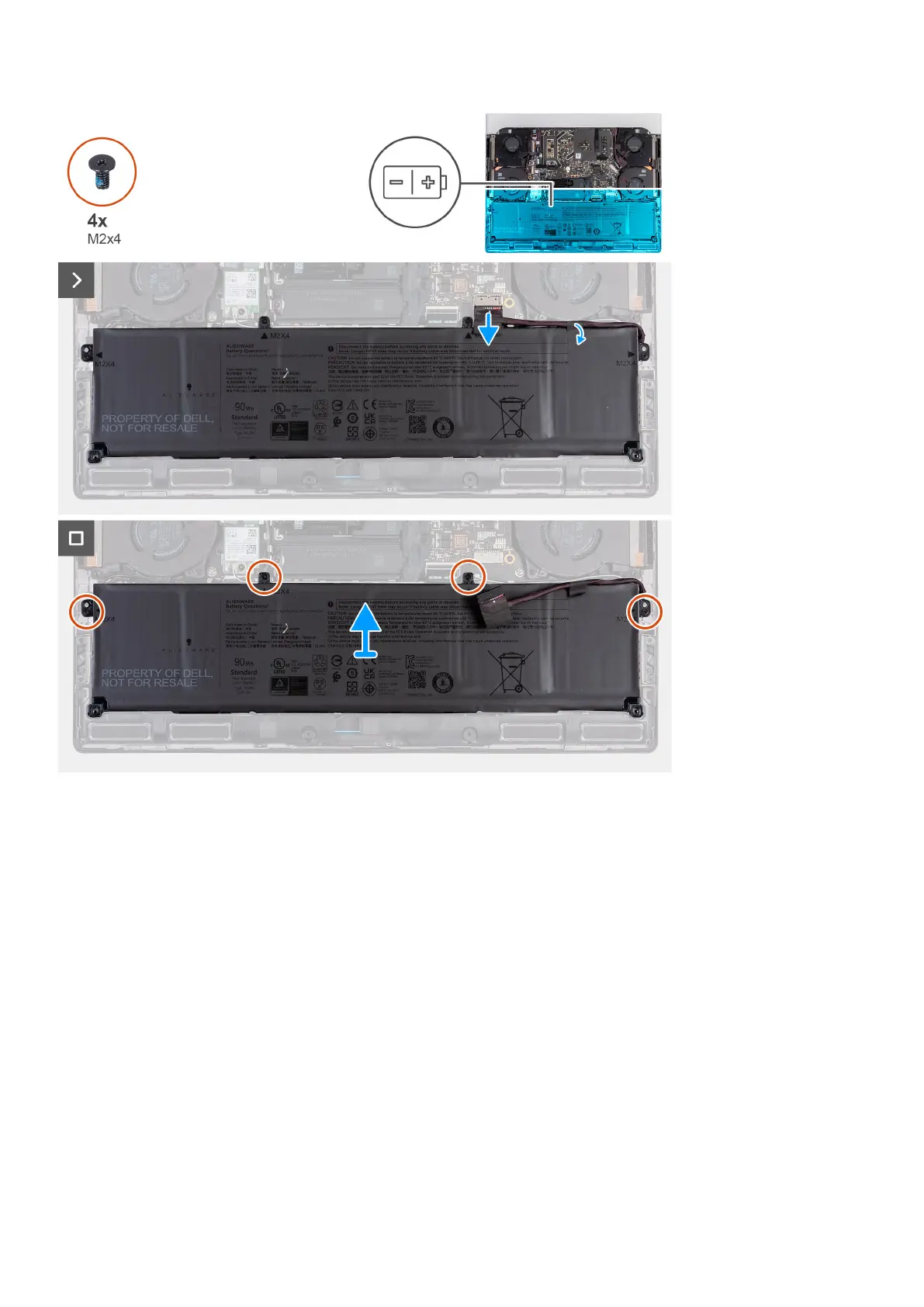

Steps
1. Disconnect the battery cable from the system board (if not disconnected earlier).
2. Peel the tape that secures the battery cable to the battery.
3. Remove the four screws (M2x4) that secure the battery to the palm-rest and keyboard assembly.
4. Lift the battery off the palm-rest and keyboard assembly.
Installing the battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image(s) indicate the location of the battery and provides a visual representation of the installation procedure.
